Description & Specification

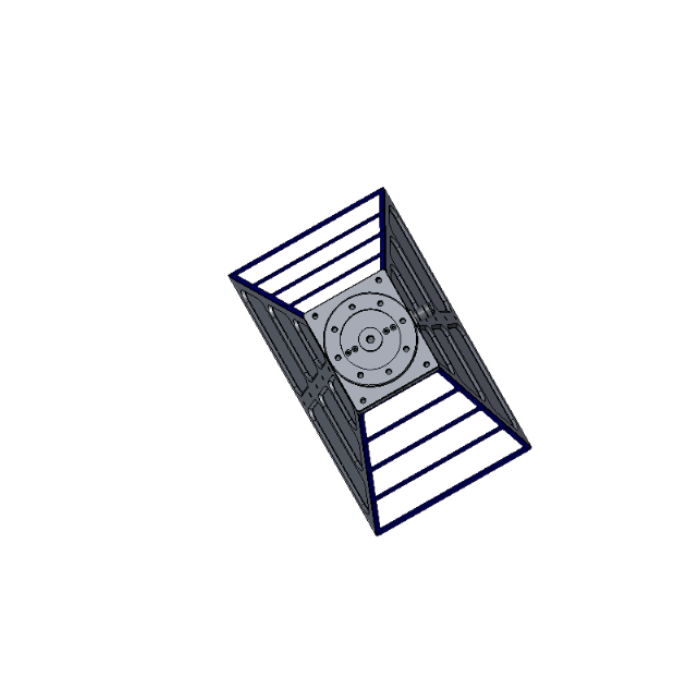

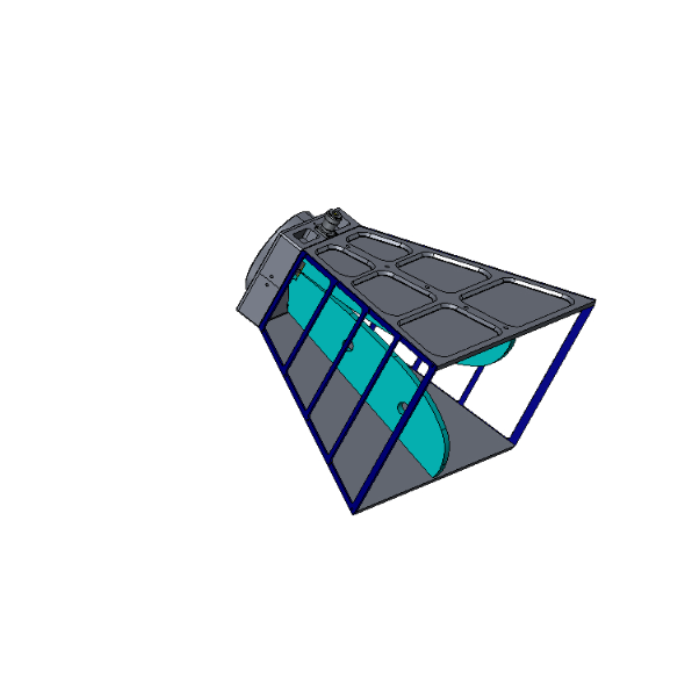

680MHz to 18GHz Double Ridged Broadband Waveguide Horn N-Female Antenna
Broadband Precision | High-Frequency Performance | Model: HA-08M18GA-NF
The HA-08M18GA-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating across an extensive frequency spectrum spanning the continuous 0.68 GHz to 18 GHz range, this laboratory-grade antenna provides stable directional gain profiling from 3 to 15 dBi. Precision-machined with optimized inner double ridges, its physical geometry ensures stable gain configurations and pure radiation patterns with exceptionally low transmission loss. Equipped with a high-precision N-Female (SUS) connector, this 1980g antenna delivers a low VSWR profile (typical 2.0) for critical microwave testing environments.
Technical Specifications
| Frequency Range | 0.68 - 18 GHz |
| Antenna Type | Double Ridged Horn |
| Gain | 3 - 15 dBi |
| VSWR | Typical 2.0 |
| Impedance | 50 Ohms |
Mechanical & Physical Data

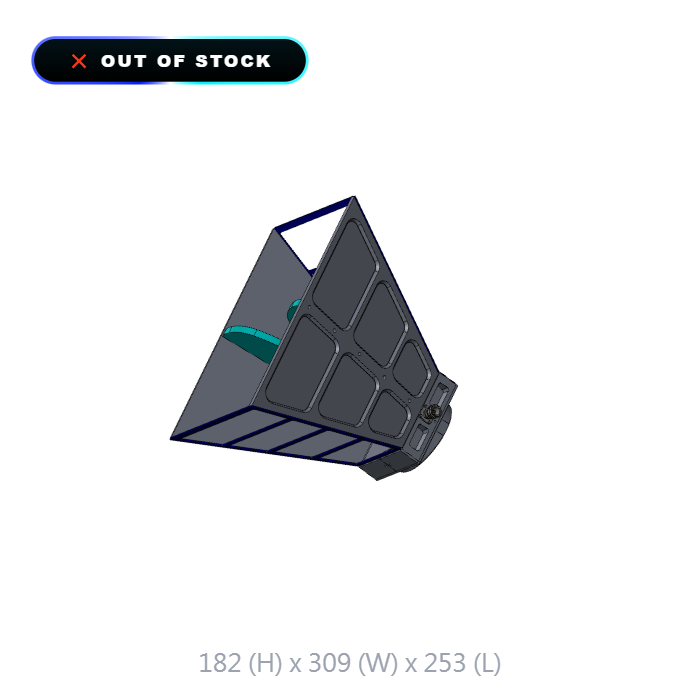

| Dimensions | 182 x 309 x 253 mm |
| Weight | 1980 g |
| Connector | N-Female (SUS) |
| Origin | Made in Taiwan |
| Polarization | Linear / Vertical |
Key Design & Feature Highlights
Ultra-Wideband
Covers 0.68 GHz to 18 GHz. Single-antenna solution for ultra-wideband signal analysis.
High Precision
N-Female (SUS) connector ensures low return loss and high signal integrity.
Taiwanese Quality
Precision-manufactured in Taiwan for professional RF measurement and calibration.
Optimized Directivity

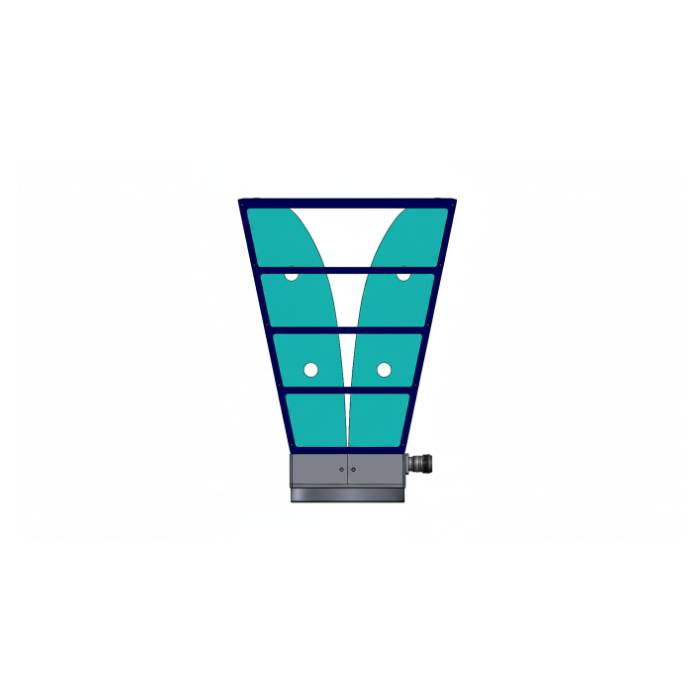

Double-ridged waveguide geometry ensures stable gain and pure radiation patterns.
Contact FT-RF Engineering Division
Contact our technical engineering subdivision today to request official quote sheets or customized mounting solutions.
