Description & Specification

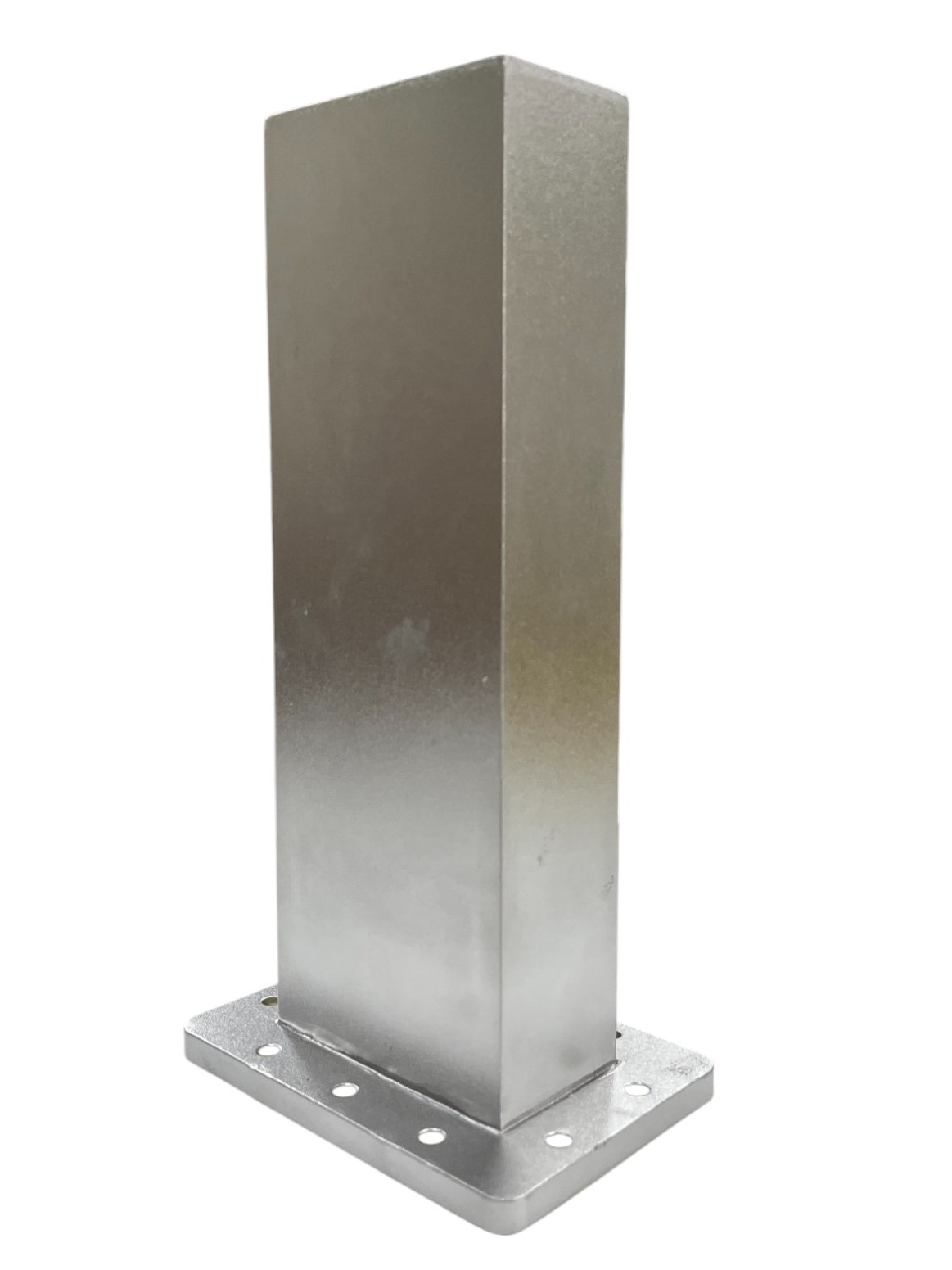

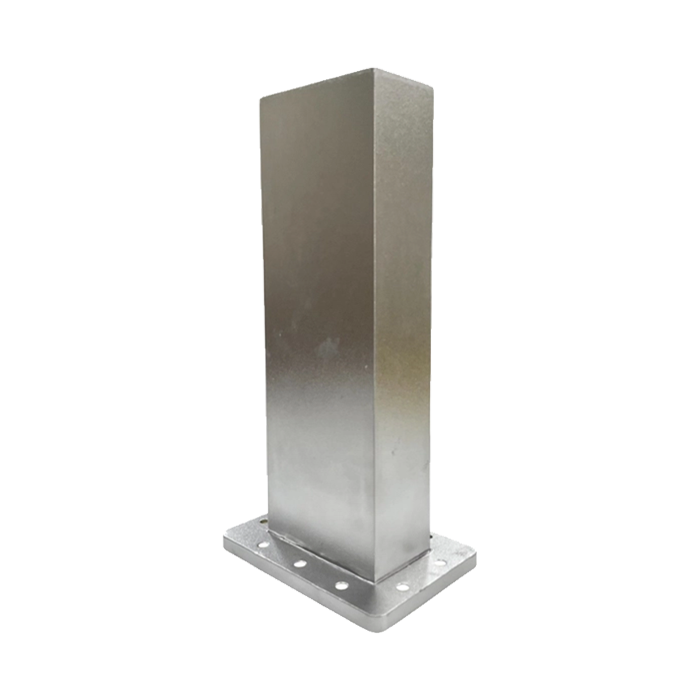

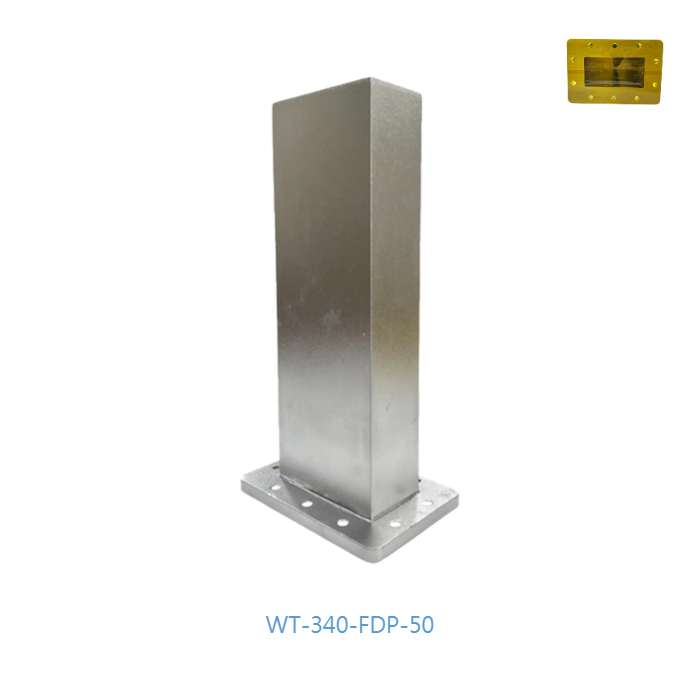

WT-340-FDP-50 Waveguide Termination
S-Band Low Power Waveguide Load (WR340)
The WT-340-FDP-50 is a high-precision low power waveguide termination designed for general-purpose low VSWR applications. Optimized for S-band operations between 2.20 GHz and 3.30 GHz, it serves as an ideal dummy load for test bench configurations and system-level moderate power terminations. Its robust WR340 rectangular waveguide design ensures stability and accuracy in demanding RF environments.
Technical Specifications
Electrical Specifications
| Frequency Range | 2.20 - 3.30 GHz |
| Waveguide Band | S-Band |
| Waveguide Size | EIA WR340 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 12W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
| Flange Style | Square |
| Flange Designation | FDP26 |
| Net Weight | 1.105 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Excellent VSWR Performance
Consistently low VSWR (≤ 1.05) across the entire frequency range for optimal termination.
Consistently low VSWR (≤ 1.05) across the entire frequency range for optimal termination.
S-Band Optimization
Specifically designed for 2.20 GHz to 3.30 GHz applications in S-band systems.
Specifically designed for 2.20 GHz to 3.30 GHz applications in S-band systems.
Durable WR340 Design
Precision rectangular waveguide construction ensures mechanical and electrical reliability.
Precision rectangular waveguide construction ensures mechanical and electrical reliability.
Moderate Power Handling
Supports CW power levels from 12W up to 50W, suitable for various system-level loads.
Supports CW power levels from 12W up to 50W, suitable for various system-level loads.
Standard FDP26 Flange
Square flange interface for easy and secure integration with standard S-band components.
Square flange interface for easy and secure integration with standard S-band components.
High Precision Load
Ideal for use as a dummy load in test benches and precision measurement setups.
Ideal for use as a dummy load in test benches and precision measurement setups.
Contact Us
For inquiries about the WT-340-FDP-50 or custom waveguide solutions, please contact us:
