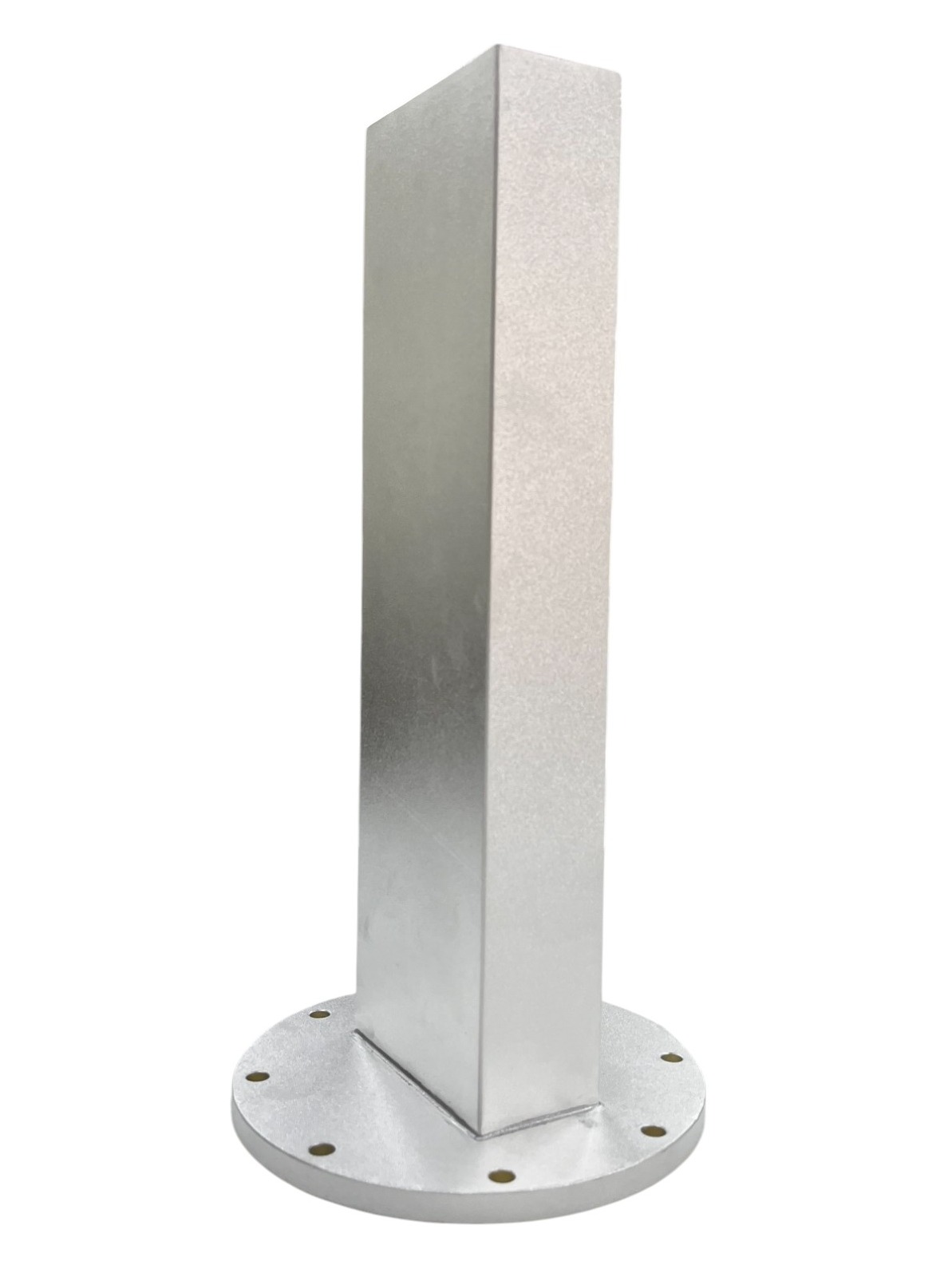

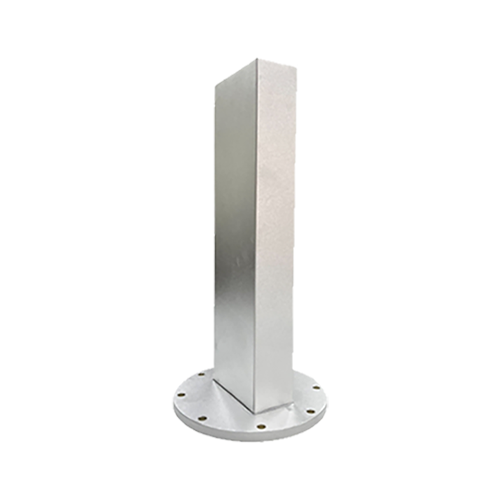

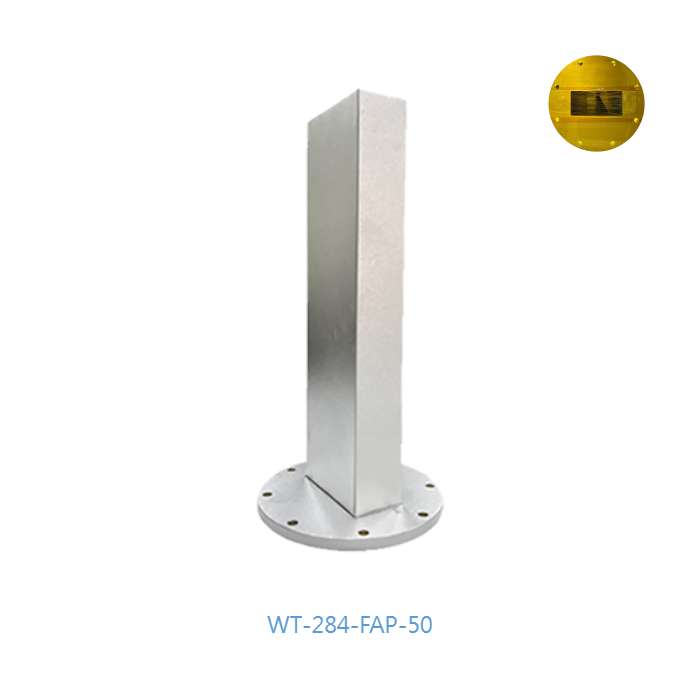

WT-284-FAP-50 Waveguide Termination
S-Band Low Power Waveguide Load | WR284 Waveguide | Model: WT-284-FAP-50
The WT-284-FAP-50 is a high-precision waveguide termination (dummy load) professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for professional S-band system-level integrations. Operating within the continuous frequency spectrum of 2.60 GHz to 3.95 GHz, it features a specialized FAP32 Round Flange interface layout to meet unique mechanical mounting requirements. This premium dummy load provides an exceptionally stable termination with an ultra-low maximum V.S.W.R threshold of 1.05:1, ensuring high-fidelity electromagnetic signal absorption and protecting critical signal integrity in laboratory test benches and specialized RF sub-systems. Precision designed and manufactured from durable materials in Taiwan, the rectangular architecture with precision-machined internal surfaces guarantees outstanding electromechanical longevity and stable performance under continuous wave power loads ranging from 10 Watts to 50 Watts (CW). It stands as the definitive choice for wide-area system calibration matrices, automated laboratory range testing, and mission-critical RF sub-systems requiring uncompromised protection against reflected power.
Electrical & RF Performance
| Frequency Range Class | 2.60 - 3.95 GHz (Continuous S-Band Optimization) |
| Waveguide Standard Size | EIA WR284 Standard Architecture |
| Flange Style Interface | FAP32 Round Flange Layout Layout |
| V.S.W.R Profile (Max) | ≤ 1.05 : 1 (Ultra-Low Reflection Performance) |
| Power Handling Class (CW) | 10 Watts to 50 Watts (Continuous Wave Thermal Boundary) |
| Load Classification Type | Low Power Waveguide Termination / Dummy Load |
| Waveguide Geometry | Rectangular Waveguide Architecture |
Mechanical & Environmental Data
| Net Weight Profile | 0.745 kg (Precision Rigid Footprint) |
| Interface Connection Compatible | Circular Interconnect System Mating Face |
| Application Sector | S-Band System Integration & Laboratory Test Benches |
| Compliance Standard | Standard Industrial Quality Control Protocol |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Industrial Grade) |
Superior VSWR Stability
Consistently maintains a VSWR of 1.05 or lower across the full frequency band, ensuring minimal signal reflection for critical system calibration runs.

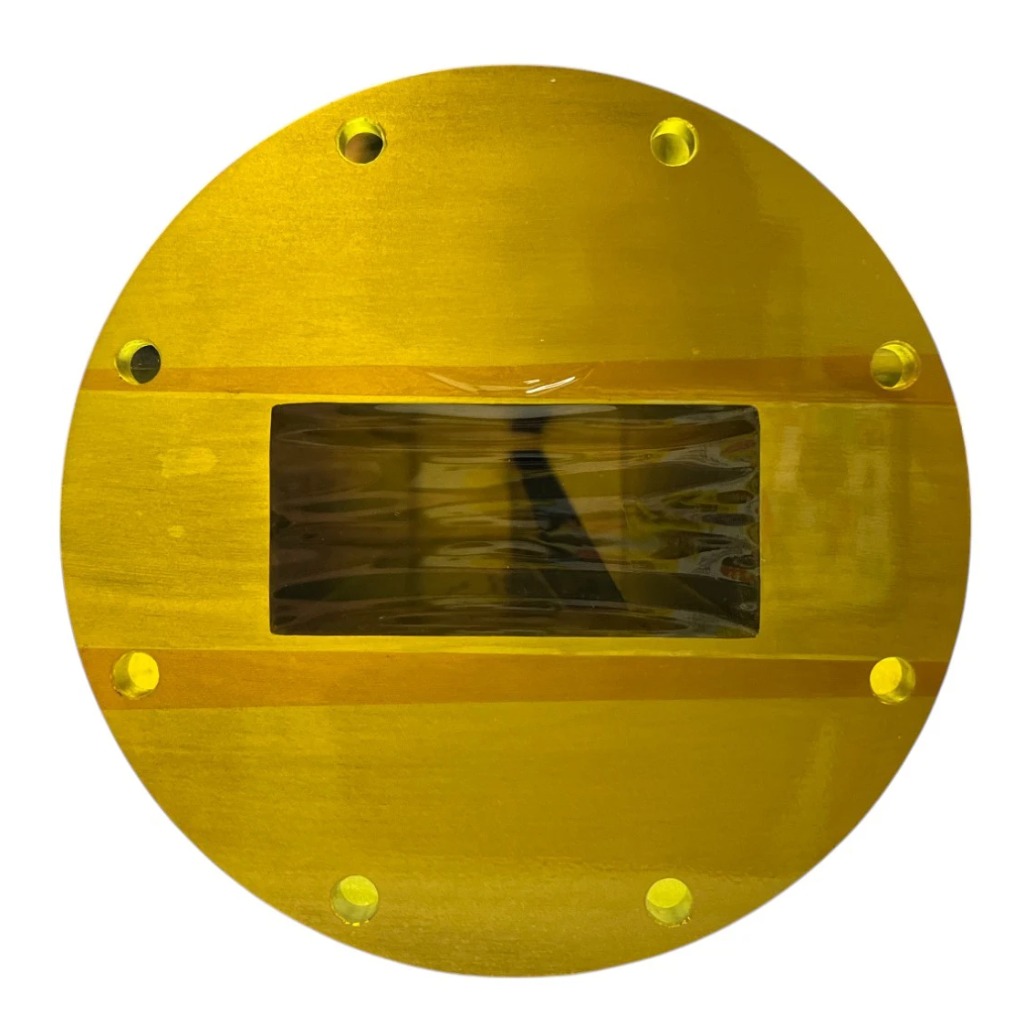

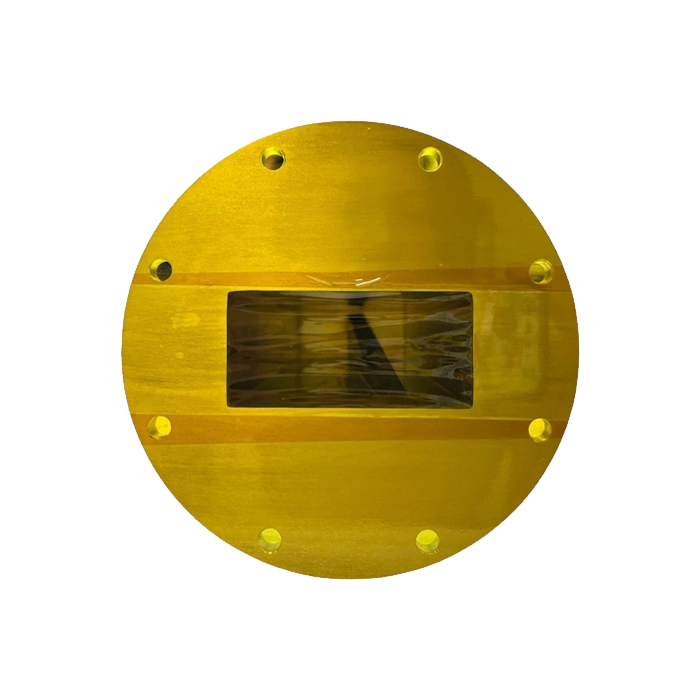

Specialized FAP32 Round Flange
Equipped with a precision-machined round flange interface, providing versatile mounting options for specialized S-band circular interconnect setups.
Superior Signal Integrity
Engineered for high-integrity electromagnetic absorption, perfectly protecting high-value diagnostic instrumentation from reflected power in laboratory grids.
Precision WR284 Build
Manufactured with high-durability materials and precision-machined internal surfaces in Taiwan to ensure stable electrical parameters and long-term reliability.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, custom flange orientations, specialized high-power ratings, or individual certified calibration data packages.
