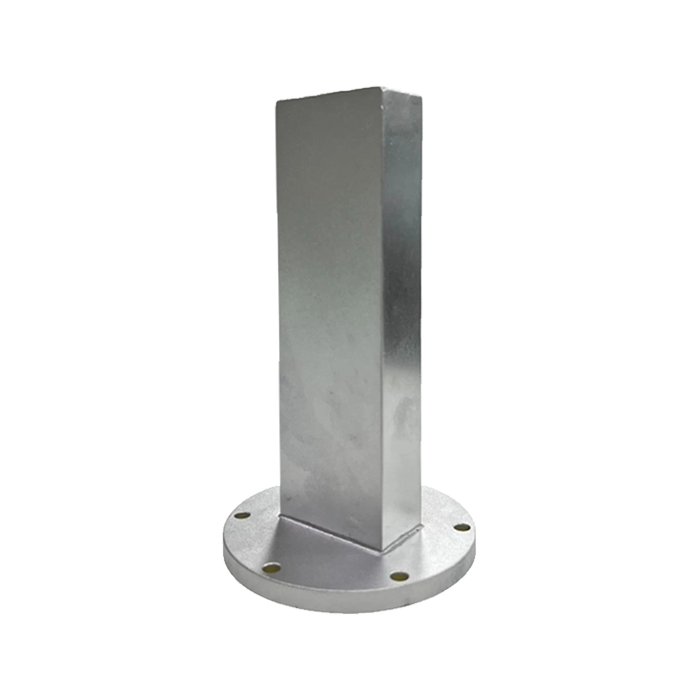

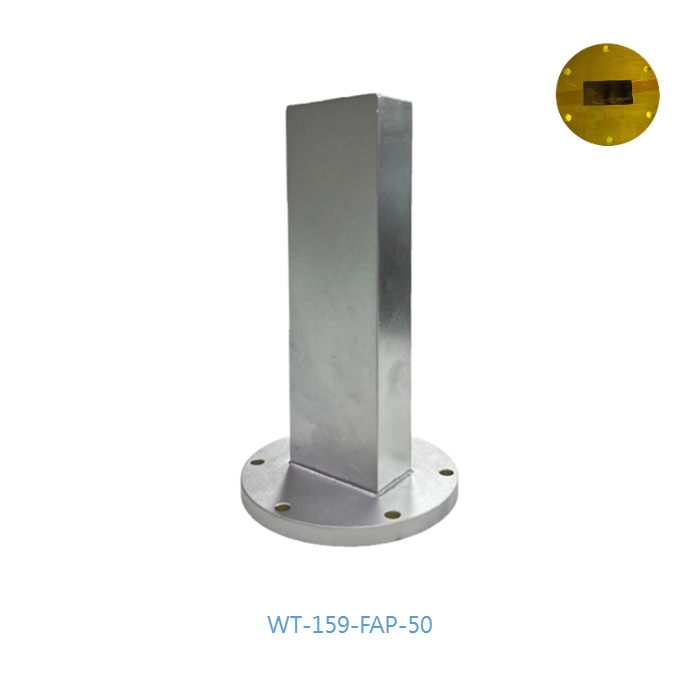

WT-159-FAP-50 Waveguide Termination
C-Band Low Power Waveguide Load (WR159) | FAP58 Round Flange | 4.90 - 7.05 GHz
The WT-159-FAP-50 is a high-performance low power waveguide termination professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for C-band applications. It operates seamlessly within the 4.90 GHz to 7.05 GHz frequency range with a superior maximum VSWR of 1.05. This model is designed for general-purpose low VSWR terminations in system-level configurations, serving as an ideal dummy load for moderate power test benches. Precision machined from premium alloy in Taiwan, it incorporates a standardized FAP58 round flange to guarantee excellent alignment stability and strict electrical tolerance containment.
Electrical Specification
| Frequency Range (GHz) | 4.90 - 7.05 GHz |
| VSWR, Max | 1.05 : 1 |
| Waveguide Size EIA WR | WR159 |
| Waveguide Band | C-Band |
| Waveguide Type | Rectangular (40.386 x 20.193 mm Internal Aperture) |
| WG Load Type | Low Power |
| Power Handling, CW, (W) | 10 - 50 Watts |
| Impedance | Matched |
Mechanical & Interface Specifications

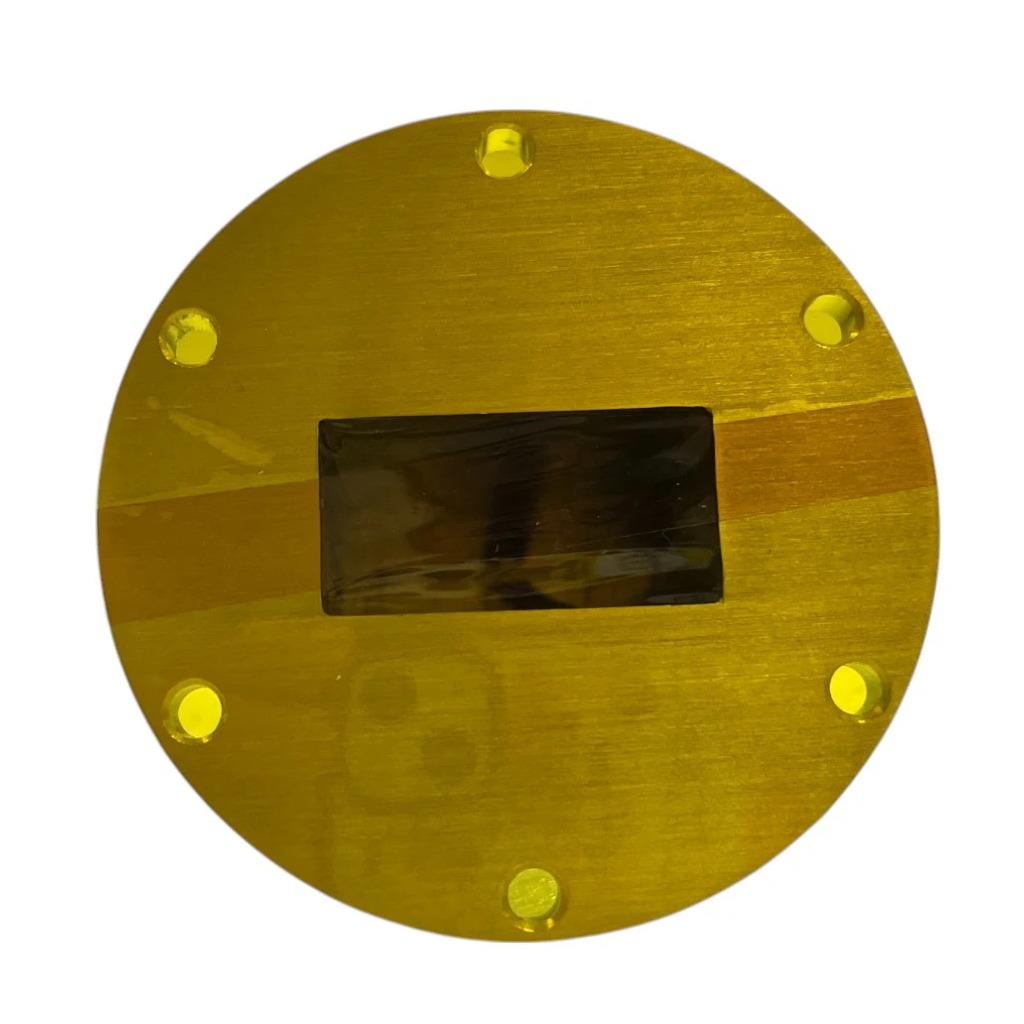

| Flange Style | Round Flange (Diameter 85.9 mm) |
| Flange Designation | FAP58 Layout (6-Hole Arrangement, 5 mm Hole Diameter on 76.2 mm Pitch Circle) |
| Flange Thickness | 7 mm |
| Hole Angular Spacing | 60 Degrees |
| Net Weight | 0.215 kg |
| Design & Manufacturing | Made in Taiwan (FT-RF) |
| Compliance | Standard Industrial Grade / RoHS Compliant |
Low VSWR Stability
Maximum VSWR of 1.05 ensures highly accurate signal termination and minimal reflection loss for precision testing.
C-Band Frequency Coverage
Optimized for the full 4.90 GHz to 7.05 GHz range, perfect for C-band radar and satellite communication systems.
FAP58 Round Flange
Standard round flange interface provides secure and standardized mechanical integration for laboratory environments.
Precision WR159 Design
Rectangular waveguide construction engineered in Taiwan to meet stringent electrical tolerances and thermal stability.
