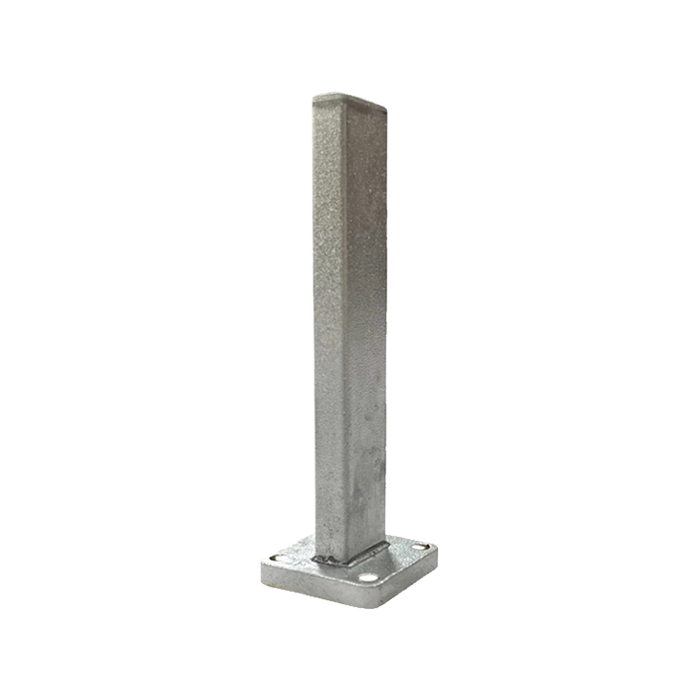

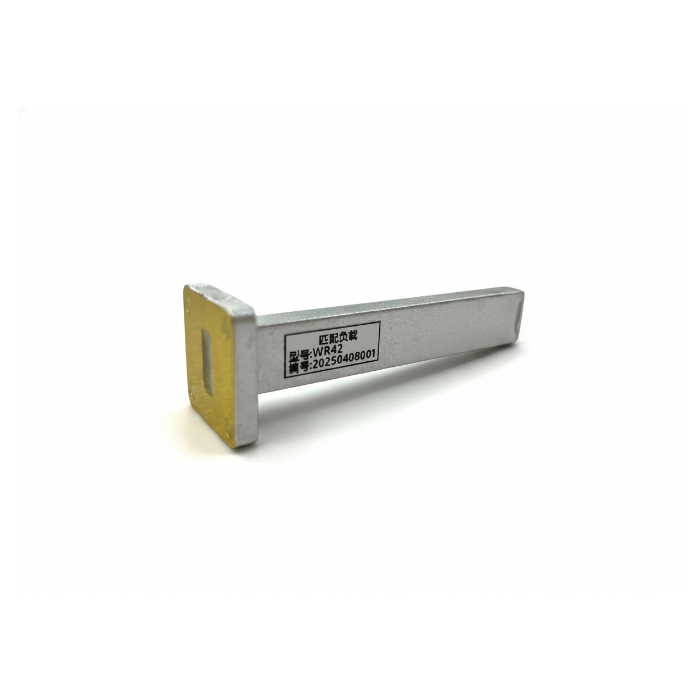

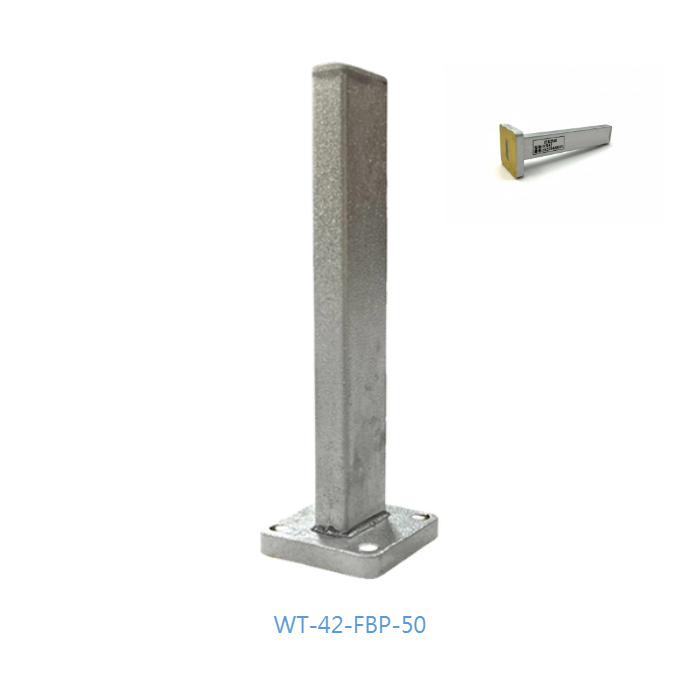

| Frequency Range (GHz) | 18.0 - 26.5 GHz |
| VSWR, Max | 1.05 : 1 |
| Waveguide Size EIA WR | WR42 |
| Waveguide Band | Ku, K-Band |
| Waveguide Type | Rectangular (10.668 x 4.318 mm Internal Aperture) |
| WG Load Type | Low Power |
| Power Handling, CW, (W) | 0.5 - 50 Watts |
| Power Handling, Peak, (KW) | 0.5 kW |
| Flange Style | Square Flange Outline (22.4 x 22.4 mm) |
| Flange Designation | FBP220 Layout (4-Hole Arrangement, 3.0 mm Hole Diameter with +0.085/+0.060 mm Tolerance on a 16.26 x 17.02 mm Mounting Grid) |
| Flange Corner Profile | 4-R2 Rounded Chamfers |
| Net Weight | 0.02 kg (20 g Ultra-Lightweight Configuration) |
| Manufacturing & Design Origin | Taiwan Design & Made in Taiwan (FT-RF) |
| Application Scope | Millimeter-Wave Test Bench / System Level Dummy Load |
Maximum VSWR of 1.05 ensures highly efficient signal termination and minimal back-reflection for high-frequency measurements.
Expertly tailored for the full 18.0 GHz to 26.5 GHz spectrum, providing multi-band versatility across Ku and K-band wireless configurations.
Standardized square outer dimensions with precise 4-hole drilling layout ensure tight mechanical integration and long-term electromechanical reliability.
Reliably handles continuous wave power inputs from 0.5W up to 50W, maintaining strict thermal and electrical parameters during rigorous procedures.
For custom flange configurations, higher power ratings, or specific material requirements, contact our engineering team.
