Description & Specification

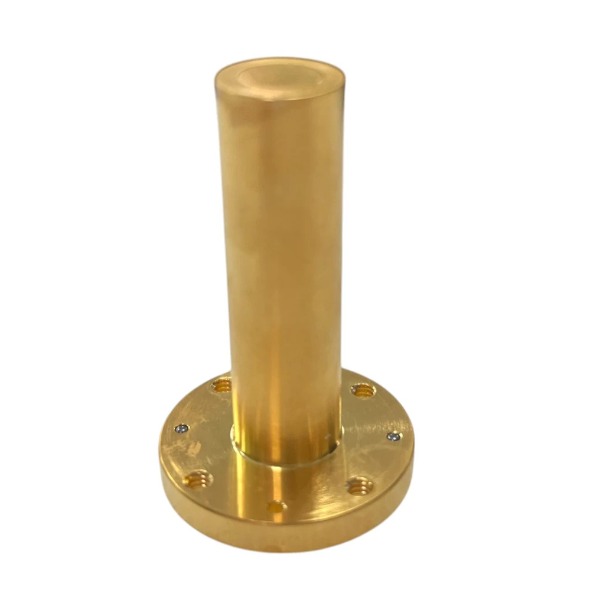

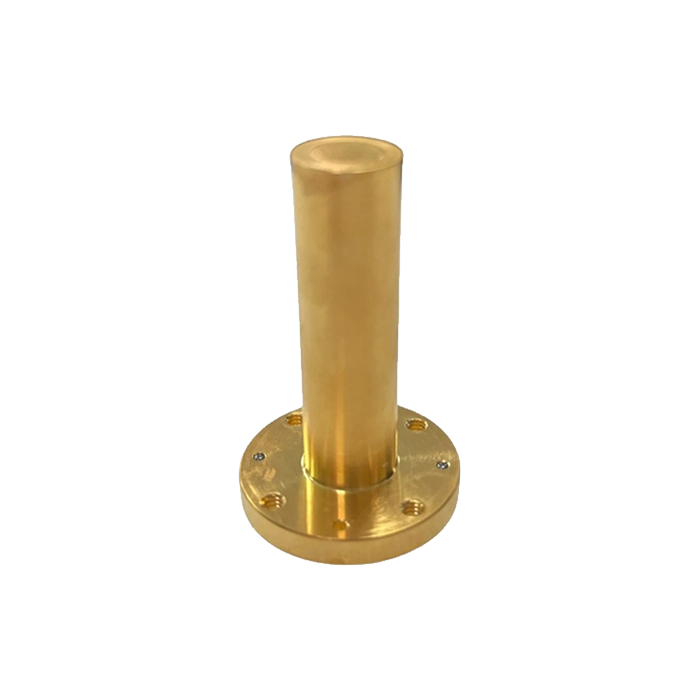

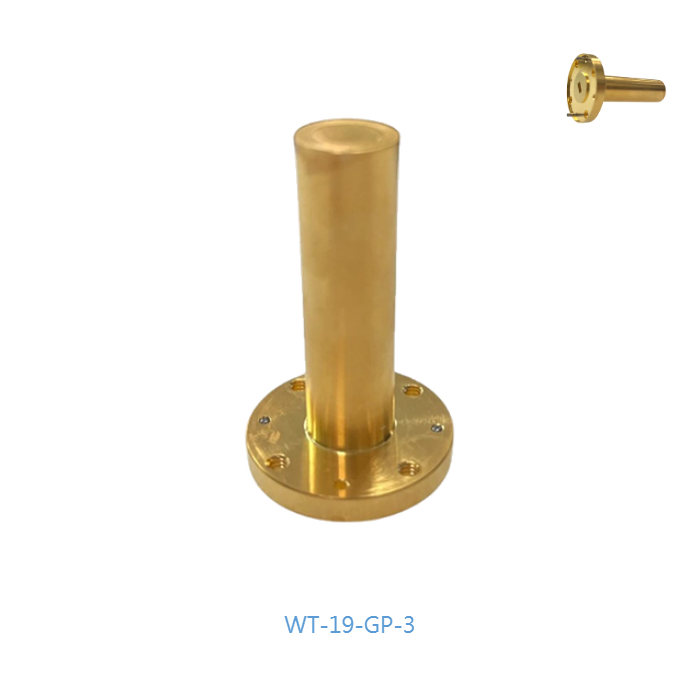

WT-19-GP-3 Waveguide Termination
U-Band Low Power Waveguide Load (WR19)
The WT-19-GP-3 is a high-precision low power waveguide termination specifically engineered for U-band operations. Operating effectively within the millimeter-wave range of 40.0 GHz to 60.0 GHz, it provides an exceptional low VSWR performance (≤ 1.10). This model features a Round FUGP500 Flange, making it a reliable solution for system-level integrations and laboratory test bench configurations requiring precision termination at moderate power levels.
Technical Specifications
Electrical Specifications
[Image of WR19 waveguide dimensions and U-band rectangular profile]| Frequency Range | 40.0 - 60.0 GHz |
| Waveguide Band | U-Band |
| Waveguide Size | EIA WR19 |
| VSWR (Max) | 1.10 : 1 |
| Power Handling (CW) | 0.25W - 3W |
| Power Handling (Peak) | 0.3 KW |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
[Image of FUGP500 round flange bolt hole pattern and alignment pins]| Flange Style | Round |
| Flange Designation | FUGP500 |
| Net Weight | 0.055 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Precision VSWR Performance
Maintains a maximum VSWR of 1.10 for highly efficient signal absorption and minimal back-reflection in U-band systems.
Maintains a maximum VSWR of 1.10 for highly efficient signal absorption and minimal back-reflection in U-band systems.
Optimized U-Band Coverage
Tailored for the 40.0 GHz to 60.0 GHz range, supporting high-frequency research and advanced millimeter-wave development.
Tailored for the 40.0 GHz to 60.0 GHz range, supporting high-frequency research and advanced millimeter-wave development.
Durable WR19 Construction
Standard rectangular waveguide interface ensures robust electrical contact and long-term stability in test environments.
Standard rectangular waveguide interface ensures robust electrical contact and long-term stability in test environments.

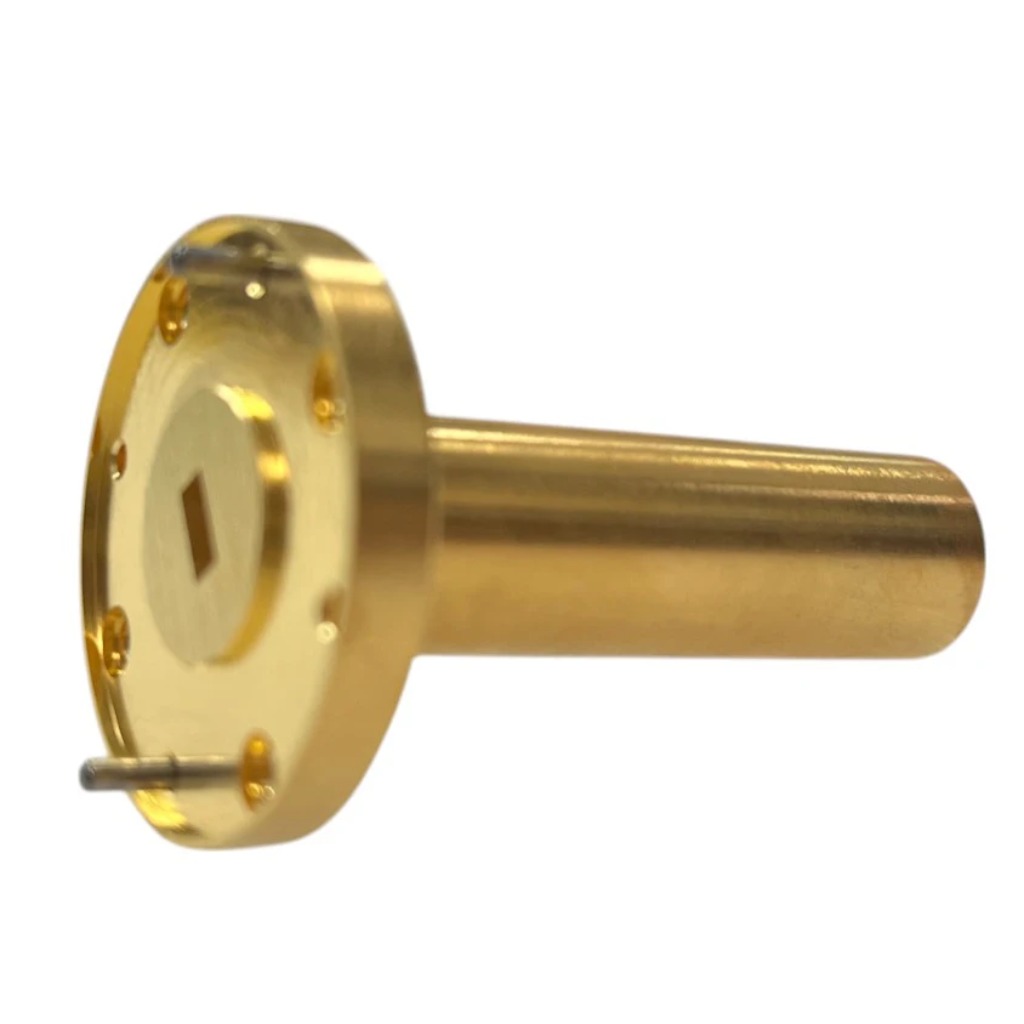

FUGP500 Round Flange
Equipped with a precision round flange interface for standardized and high-integrity mechanical integration.
Equipped with a precision round flange interface for standardized and high-integrity mechanical integration.
3W CW Power Handling
Reliably manages continuous wave power levels up to 3W with consistent electrical stability.
Reliably manages continuous wave power levels up to 3W with consistent electrical stability.
Precision Taiwan Quality
Manufactured to stringent tolerances in Taiwan to ensure consistent performance for critical RF applications.
Manufactured to stringent tolerances in Taiwan to ensure consistent performance for critical RF applications.
Contact Us
For quotes or technical inquiries about the WT-19-GP-3, please contact us:
