Description & Specification

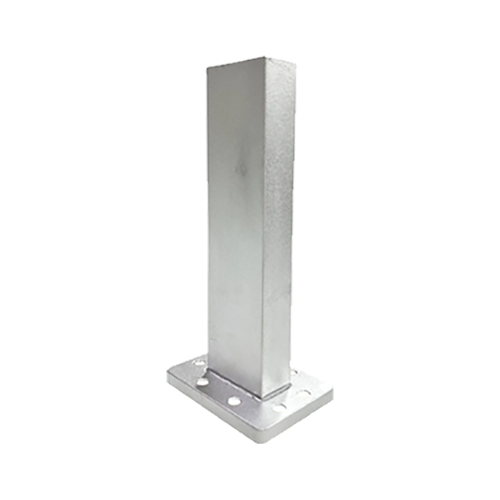

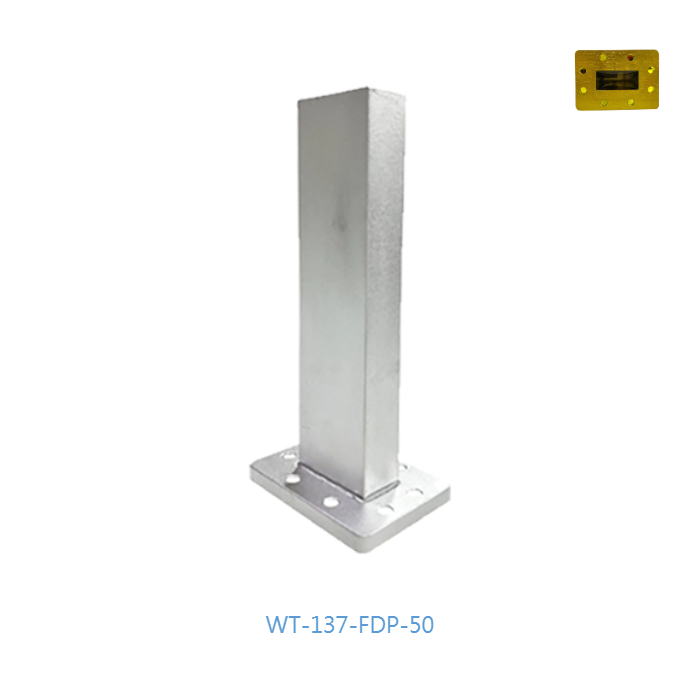

WT-137-FDP-50 Waveguide Termination
C/X-Band Low Power Waveguide Load (WR137)
The WT-137-FDP-50 is a high-precision low power waveguide termination designed to bridge C and X-band applications. Operating within the 5.85 GHz to 8.20 GHz range, it features a WR137 rectangular waveguide interface with an FDP70 square flange. This component is engineered for general-purpose low VSWR terminations, making it perfect for laboratory test benches and moderate power dummy loads up to 50W.
Technical Specifications
Electrical Specifications
| Frequency Range | 5.85 - 8.20 GHz |
| Waveguide Band | C, X-Band |
| Waveguide Size | EIA WR137 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 10W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
| Flange Style | Square |
| Flange Designation | FDP70 |
| Net Weight | 0.16 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Superior VSWR Performance
Maximum VSWR of 1.05 ensures highly accurate signal absorption and minimal reflection.
Maximum VSWR of 1.05 ensures highly accurate signal absorption and minimal reflection.
Dual Band Versatility
Optimized for both C and X-band (5.85 GHz to 8.20 GHz) frequency ranges.
Optimized for both C and X-band (5.85 GHz to 8.20 GHz) frequency ranges.
Ultra-Lightweight WR137 Design
Precision-engineered at only 0.16 kg, offering a compact solution for dense systems.
Precision-engineered at only 0.16 kg, offering a compact solution for dense systems.
Standard FDP70 Flange

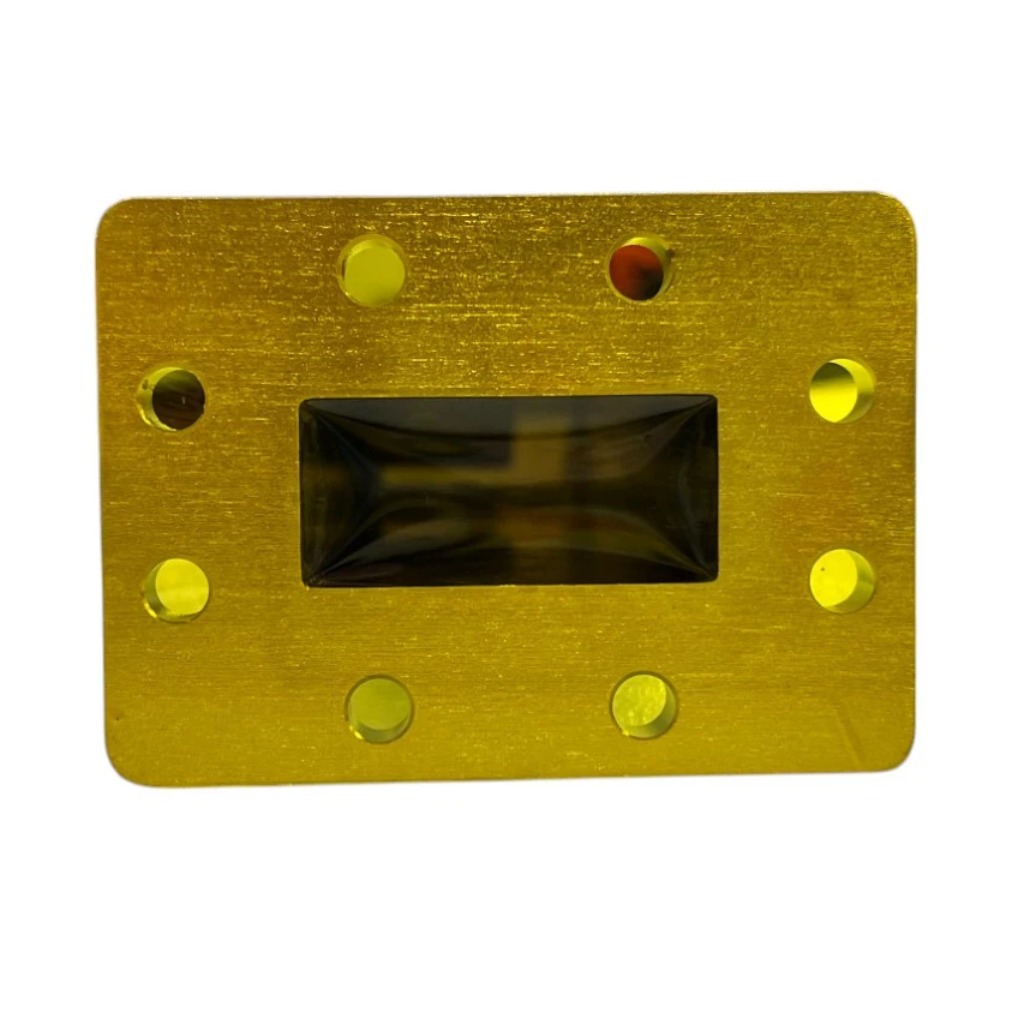

Equipped with a square FDP70 flange for secure and standardized mechanical connection.
Equipped with a square FDP70 flange for secure and standardized mechanical connection.
Reliable CW Power Handling
Supports continuous wave power levels from 10W to 50W with excellent stability.
Supports continuous wave power levels from 10W to 50W with excellent stability.
Precision Taiwan Quality
Manufactured to stringent tolerances to ensure consistent performance in all test environments.
Manufactured to stringent tolerances to ensure consistent performance in all test environments.
Contact Us
For quotes or technical inquiries about the WT-137-FDP-50, please contact us:
Email: info-tw@ft168.com.twNew Products
