| Frequency Range (GHz) | 10.0 - 15.0 GHz |
| VSWR, Max | 1.05 : 1 |
| Waveguide Size EIA WR | WR75 (WG17 / R120) |
| Waveguide Band | X, Ku-Band |
| Waveguide Type | Rectangular |
| WG Load Type | Low Power |
| Power Handling, CW, (W) | 2 - 50 Watts |

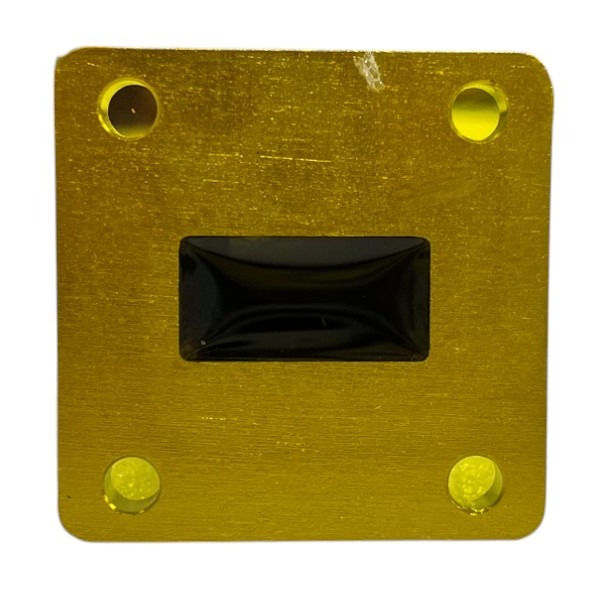

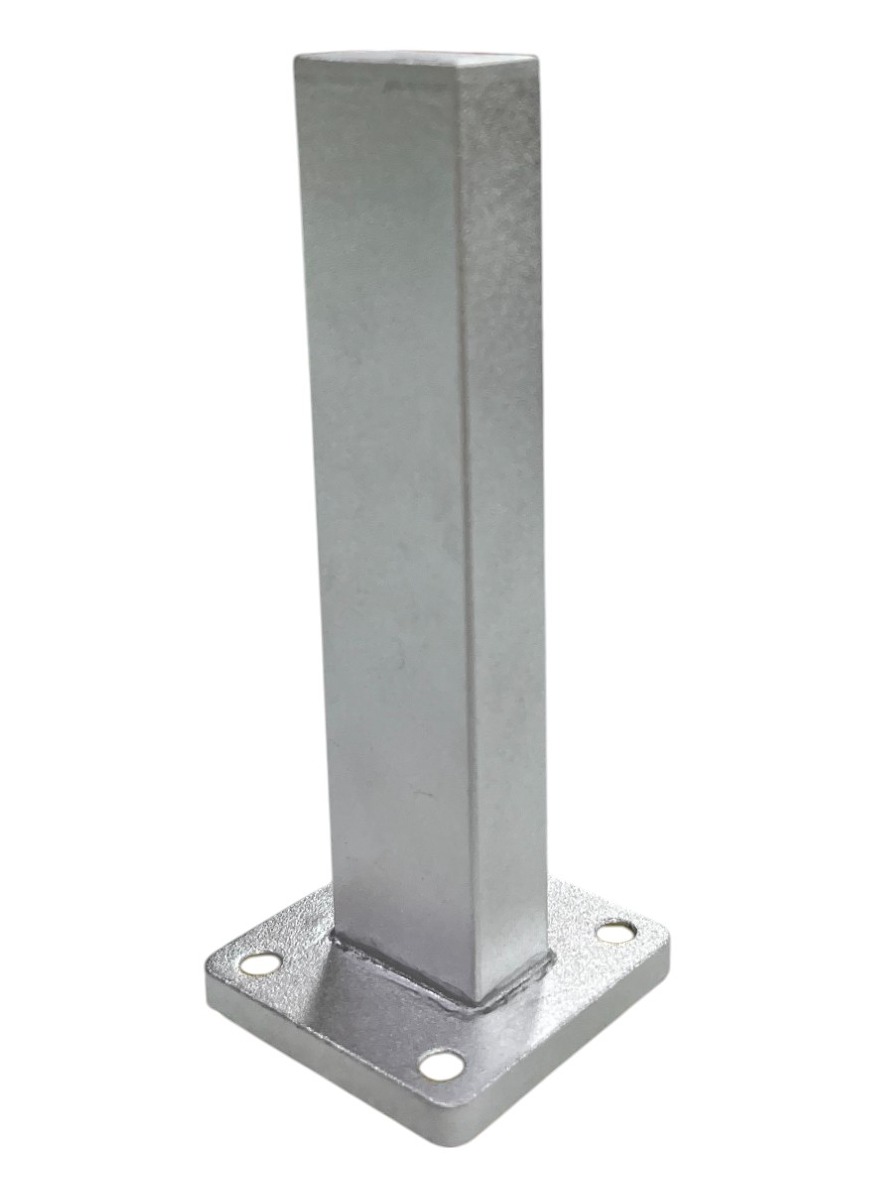

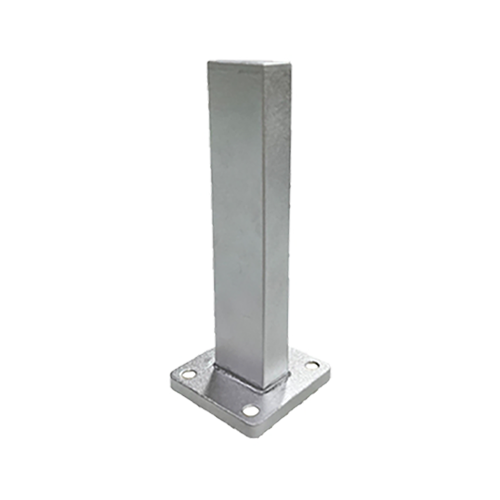

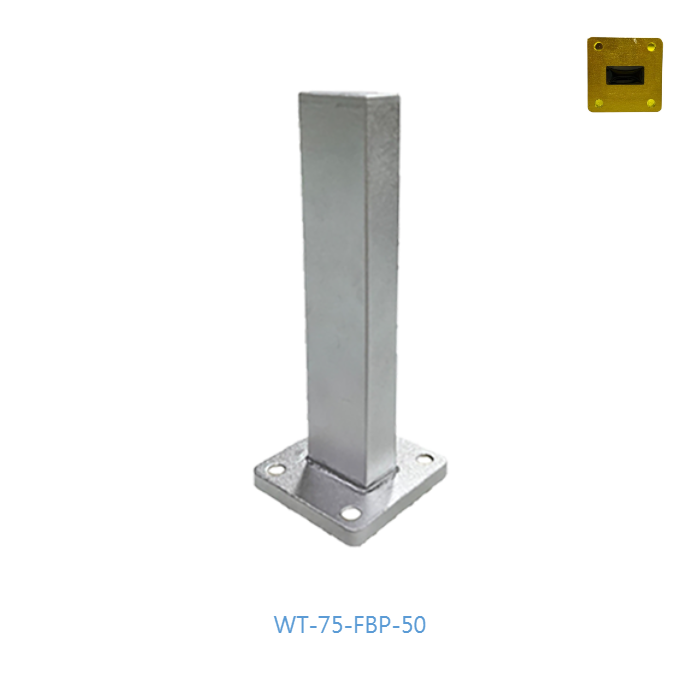

| Flange Style | Square Outline (49 x 39.5 mm) |
| Flange Designation | FDP120 Layout (Multi-Hole Structure layout: 2 x 4 mm and 4 x 4 mm Thru Holes on a 28.58 x 33.34 mm Grid layout) |
| Flange Thickness | 6 mm |
| Flange Corner Profile | 4-R4 Rounded Chamfers |
| Aperture Internal Dimension | 19.05 x 9.525 mm (with 0.038 mm tolerance) |
| Aperture External Width | 15.88 mm Width Support Layout |
| Net Weight | 0.055 kg |
| Manufacturing Origin | Made in Taiwan (FT-RF) |
| Design Standard / Application | Precision Engineered / Laboratory or System Dummy Load |
Maximum VSWR of 1.05 ensures precise signal termination with minimal reflection across the entire X and Ku band frequency range.
Specifically engineered for the 10.0 GHz to 15.0 GHz range, providing reliable performance for WR75 waveguide systems.
Weighing only 0.055 kg, this termination is ideal for space-constrained laboratory test benches and system-level dummy loads.
Features a square FDP120 flange layout design for secure mechanical connection and high power stability up to 50W CW.
For custom flange configurations, higher power ratings, or specific material requirements, contact our engineering team.
