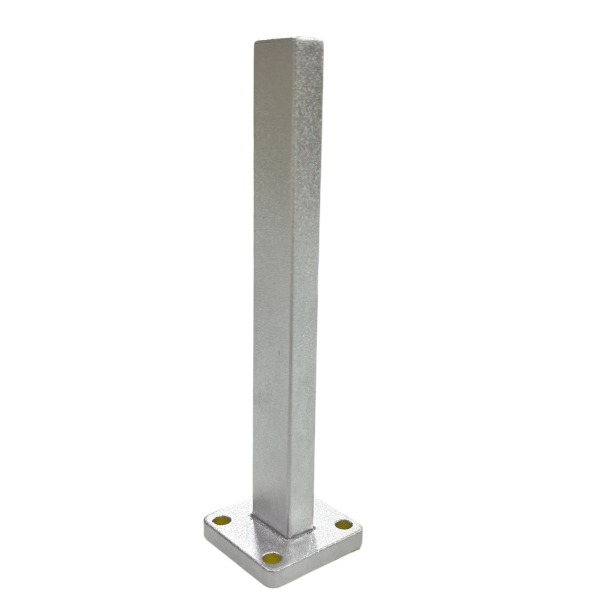

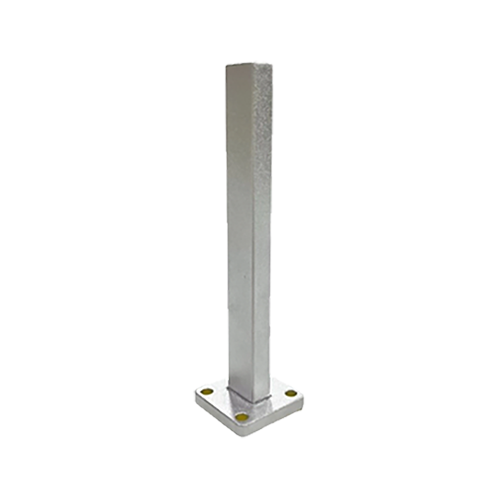

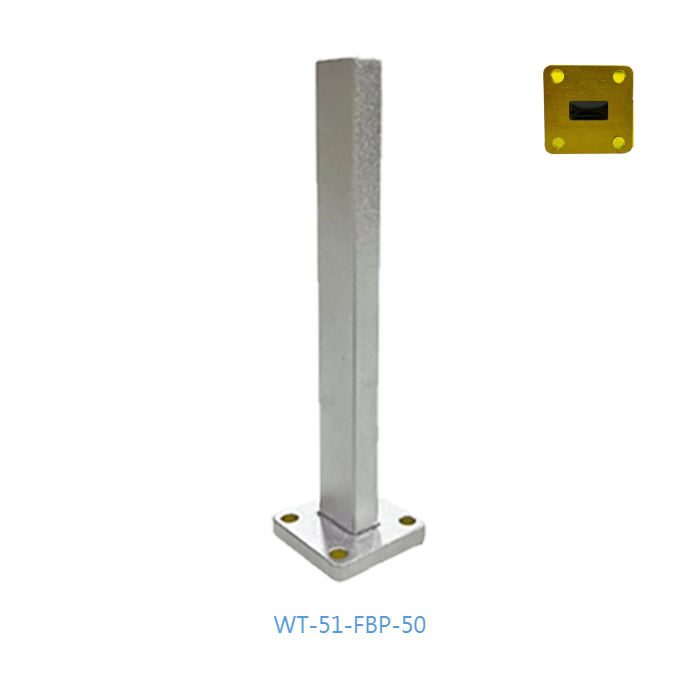

WT-51-FBP-50 Waveguide Termination
Ku/K-Band Low Power Waveguide Load (WR51)
The WT-51-FBP-50 is a high-precision low power waveguide termination optimized for Ku and K-band applications. Operating within the 15.0 GHz to 22.0 GHz range, it features a WR51 rectangular waveguide interface with an FBP180 square flange. This component is engineered for general-purpose low VSWR terminations (≤ 1.05), providing a reliable dummy load for system-level integrations and laboratory test configurations with power capacity up to 50W.
Technical Specifications
Electrical Specifications
| Frequency Range | 15.0 - 22.0 GHz |
| Waveguide Band | Ku, K-Band |
| Waveguide Size | EIA WR51 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 2W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
| Flange Style | Square |
| Flange Designation | FBP180 |
| Net Weight | 0.03 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Superior VSWR Performance
Maximum VSWR of 1.05 ensures highly accurate signal absorption and minimal reflection loss.
Maximum VSWR of 1.05 ensures highly accurate signal absorption and minimal reflection loss.
Dual-Band Optimization
Optimized for the 15.0 GHz to 22.0 GHz range, covering critical Ku and K-band requirements.
Optimized for the 15.0 GHz to 22.0 GHz range, covering critical Ku and K-band requirements.
Ultra-Lightweight Design
Precision-engineered at only 0.03 kg, ideal for space-sensitive configurations and field test sets.
Precision-engineered at only 0.03 kg, ideal for space-sensitive configurations and field test sets.
FBP180 Square Flange
Standard square flange interface ensures secure and standardized mechanical integration.
Standard square flange interface ensures secure and standardized mechanical integration.
50W CW Power Capacity
Reliably manages continuous wave power levels from 2W up to 50W with consistent stability.
Reliably manages continuous wave power levels from 2W up to 50W with consistent stability.
Precision Manufacturing
Manufactured in Taiwan to stringent tolerances to ensure consistent performance in laboratory use.
