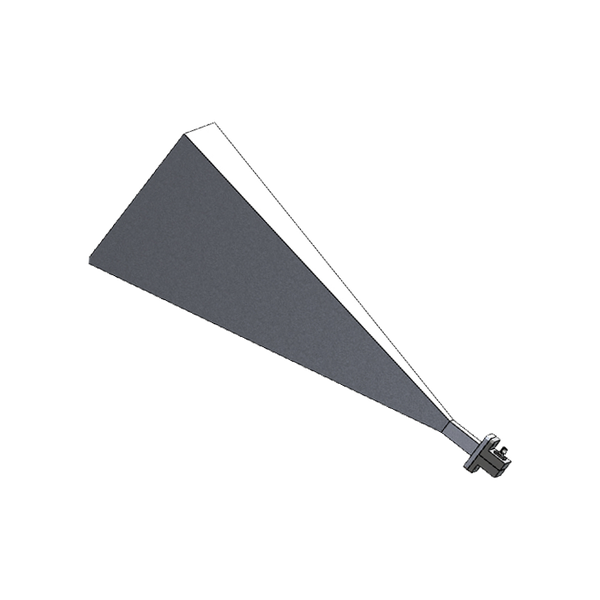

WR75 Standard Gain Horn Antenna

The WR75 waveguide Standard Gain Horn Antennas are intended for use in emissions and immunity testing in 10GHz to 15GHz
Each antenna is linearly polarized and has a constant antenna factor, uniform gain, and low VSWR.
The performance of the Standard Gain Horn is exact and predictable due to design parameters that follow international standards.

The antenna's only power-limiting component is the waveguide to coaxial adapter, which can be removed if high fields are desired.
10 dBi to 25 dBi gain standard gain horn antenna WR75 waveguide with TNC Female connector, SMA-Female or N-Female connector.

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • - Waterproof Radome structure
  • - PTZ Controlling function
  • - Tripod or antenna mounting design
  • - Customize Color



WR75 Standard Gain Horn Antenna, 10GHz to 15 GHz, 10dbi gain, UBR Flange, TNC-Female Connector NEW
  • Waveguide: WR-75
  • Frequency: 10GHz to 15GHz
  • Gain: 10 dBi
  • Max Power (W): 280
  • Original Model No.: HS-07510A-SF
  • Waveguide: WR-75
  • Frequency: 10GHz to 15GHz
  • Gain: 10 dBi
  • Original Model No.: HS-07510A-NF
  • Waveguide: WR-75
  • Frequency: 10GHz to 15GHz
  • Gain: 10 dBi
  • Original Model No.: HS-07515A-SF
  • Waveguide: WR-75
  • Frequency: 10GHz to 15GHz
  • Gain: 10 dBi



WR75 Standard Gain Horn Antenna, 10GHz to 15 GHz, 15dbi gain, UBR Flange, N-Female Connector NEW
  • Waveguide: WR-75
  • Frequency: 10GHz to 15GHz
  • Gain: 10 dBi
  • Max Power (W): 250
WR75 Standard Gain Feed Horn Antenna, 10GHz to 15 GHz, 10dbi gain, UBR Flange, SMA-Female Connector NEW
  • Waveguide: WR-75
  • Frequency: 10GHz to 15GHz
  • Gain: 10 dBi
  • Original Model No.: HS-07520A-SF
  • Waveguide: WR-75
  • Frequency: 10GHz to 15GHz
  • Gain: 20 dBi




  • Original Model No.: HS-07525A-SF
  • Waveguide: WR-75
  • Frequency: 10GHz to 15GHz
  • Gain: 25 dBi
