Ku-Band Standard Gain Horn
WR-75 Waveguide | 10 GHz – 15 GHz | 20 dBi
The HS-075-UBR-20-SF is a precision-engineered Ku-band standard gain horn antenna designed for high-fidelity laboratory and antenna measurement applications. Operating across the 10 GHz to 15 GHz spectrum, it features a standardized WR-75 waveguide interface with a UBR flange. Delivering a stable 20 dBi gain with exceptionally low VSWR, this antenna is a critical instrument for EMI/EMC testing, gain calibration, and professional RF setups requiring industrial-grade Signal Integrity and mechanical stability.
Technical Specifications
Electrical RF Performance
| Frequency Range | 10 GHz - 15 GHz (Ku-Band) |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 20 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | Horizontal: 18° | Vertical: 19° |
| Maximum CW Power | 250 Watts |
Mechanical & Interface Data
| Connector Type | Stainless Steel SMA-Female (SUS) |
| Waveguide / Flange | WR-75 / UBR (UBR 120/ M3922/70-004 Compatible) |

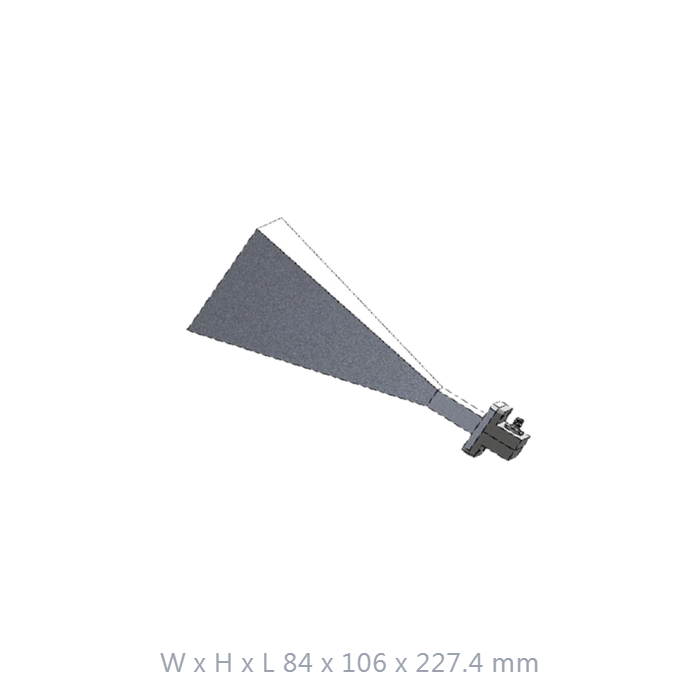

| Dimensions (W x H x L) | 84 x 106 x 227.4 mm |
| Weight | 180 g (Precision Aluminium alloy) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
Ku-Band Precision Beam
Engineered for the 10-15 GHz spectrum, providing stable electrical performance and minimal losses for critical Signal Integrity measurements in microwave systems.
Superior Gain Consistency
Delivers a uniform gain profile for high-accuracy antenna calibration, making it an ideal reference device for measuring the gain of secondary RF systems.
Industrial Grade SUS Interface
Equipped with a high-durability stainless steel SMA interface to ensure reliable mating cycles and performance stability in rigorous laboratory environments.
Custom Engineering Flexibility
Available for advanced modifications including waterproof structures, PTZ control integration, and customized color finishes to meet specific project needs.
Inquire About Ku-Band Solutions
Contact our engineering team for specialized gain calibration data, custom mounting options, or technical support regarding high-frequency measurement setups.
