1.1 GHz to 8 GHz High Power 15 dBi High Gain Double-Ridged Horn Antenna
Broadband Performance | High Gain Design | Model: HL-0206G15-NF

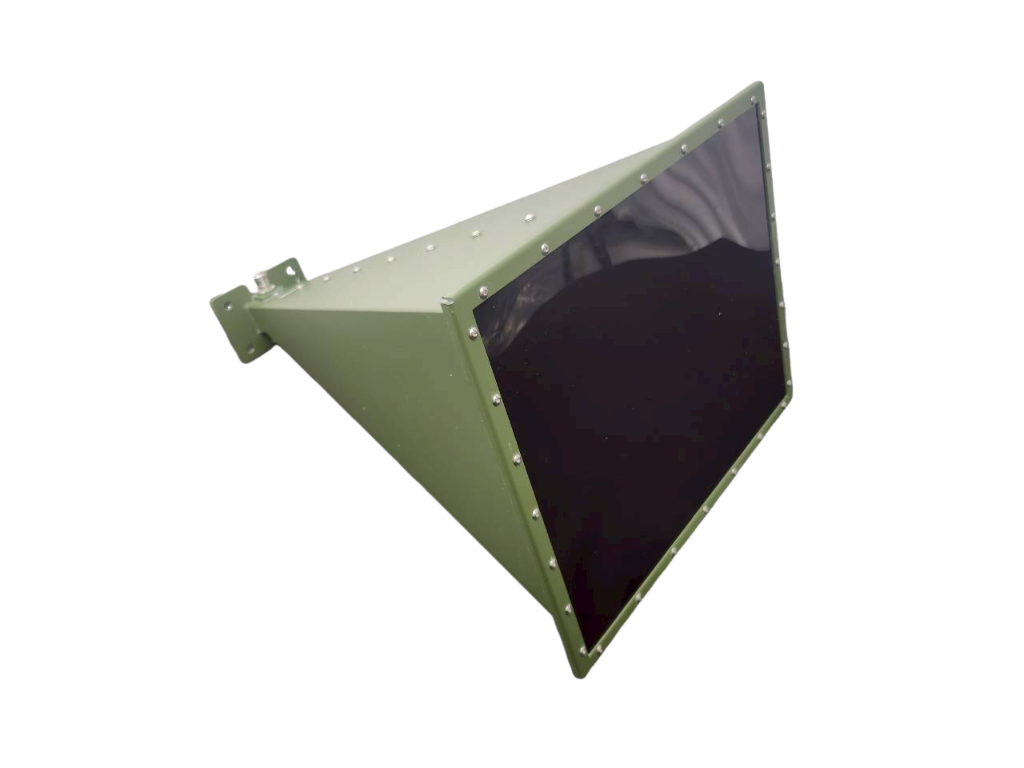

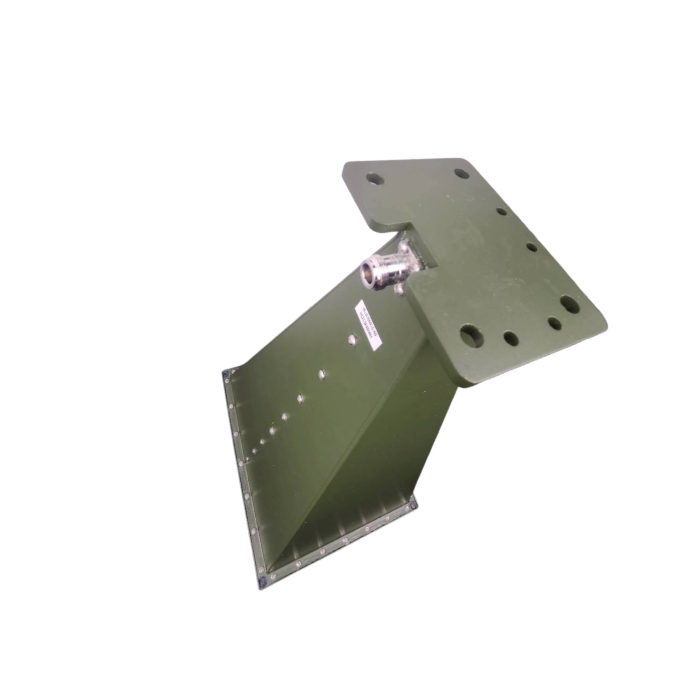

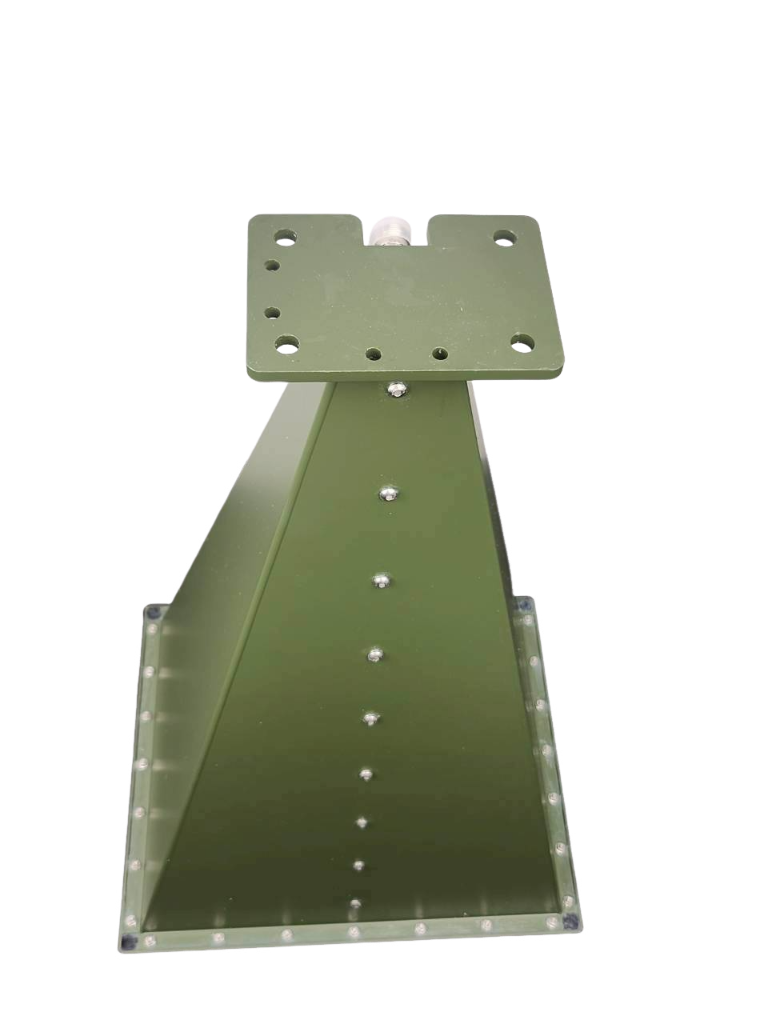

The HL-0206G15-NF is a high-performance Double-Ridged Horn Antenna specifically engineered for high-power broadband applications from 1.1 GHz to 8 GHz. This professional-grade antenna delivers an impressive gain range of 10 to 20 dBi and is designed to handle a continuous power of 125W with peaks up to 350W. Featuring a rugged IP54 waterproof rating and a precision stainless steel N-Female connector, it is an essential tool for demanding EMC/EMI testing, anechoic chamber measurements, and high-frequency signal monitoring. Expertly manufactured in Taiwan, it ensures exceptional signal integrity and long-term durability.
Technical Specifications
| Frequency Range | 1.1 GHz to 8 GHz |
| Antenna Gain | 10 to 20 dBi |
| VSWR | Typical 2.5 |
| Max Power (CW) | 125 W @ 8 GHz |
| Peak Power | 350 W |

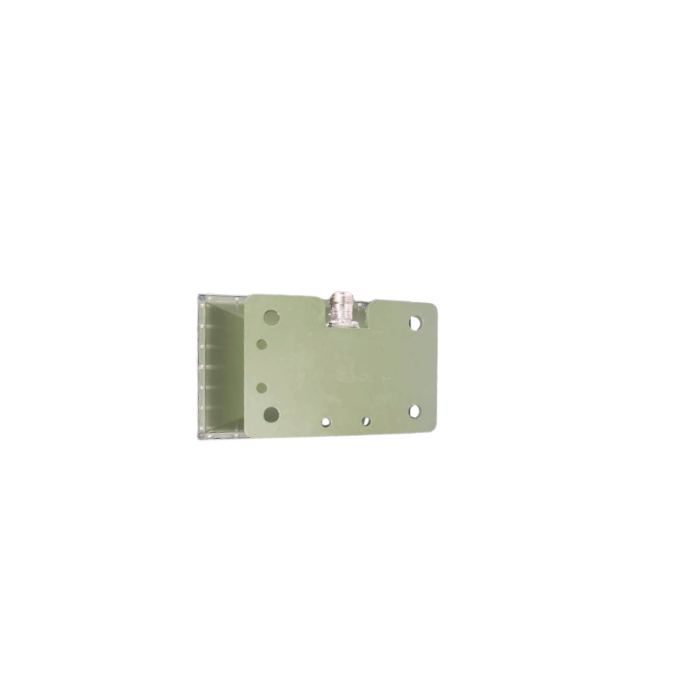

| Connector Style | N-Female (SUS) |
| Waterproof Rating | IP54 |

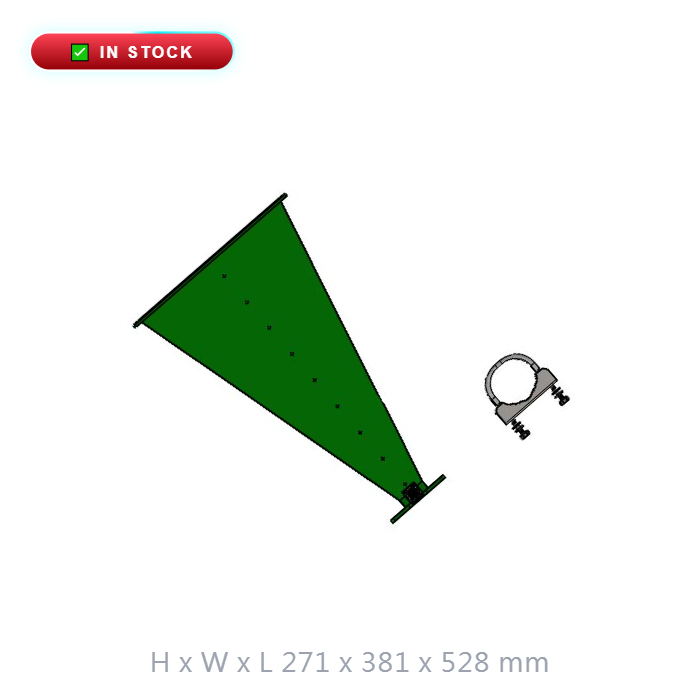

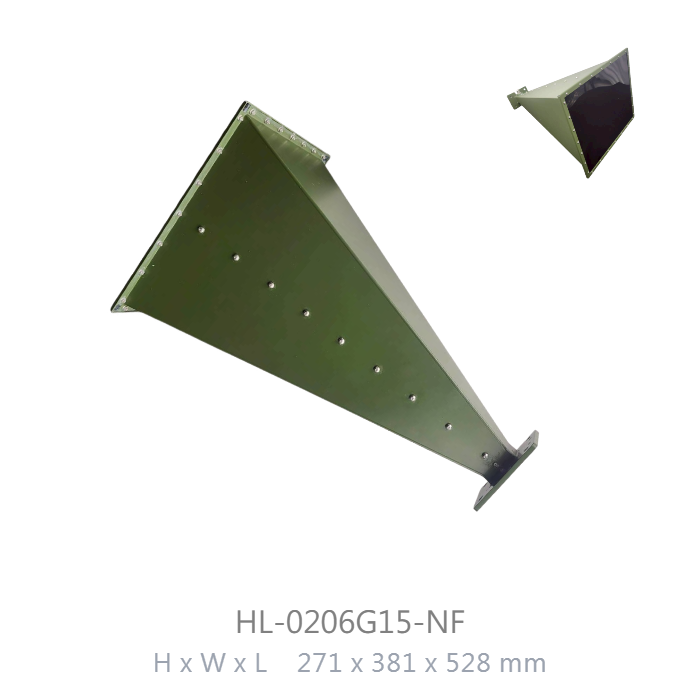

| Dimensions (H x W x L) | 271 x 381 x 528 mm |
| Weight | 3.4 kg |
| Origin | Made in Taiwan |
High Power & High Gain
Delivers up to 20 dBi gain while supporting 125W continuous power, making it ideal for high-intensity RF environments.
Ruggedized All-Weather Design
Certified with an IP54 waterproof rating and constructed with stainless steel components for reliable operation in outdoor or indoor test sites.
Broadband Taiwanese Precision
Precision-manufactured in Taiwan to provide stable directional radiation patterns and low VSWR across the 1.1–8 GHz spectrum.
Engineered for high-precision directional measurements and stable signal integrity in professional microwave testing environments.
