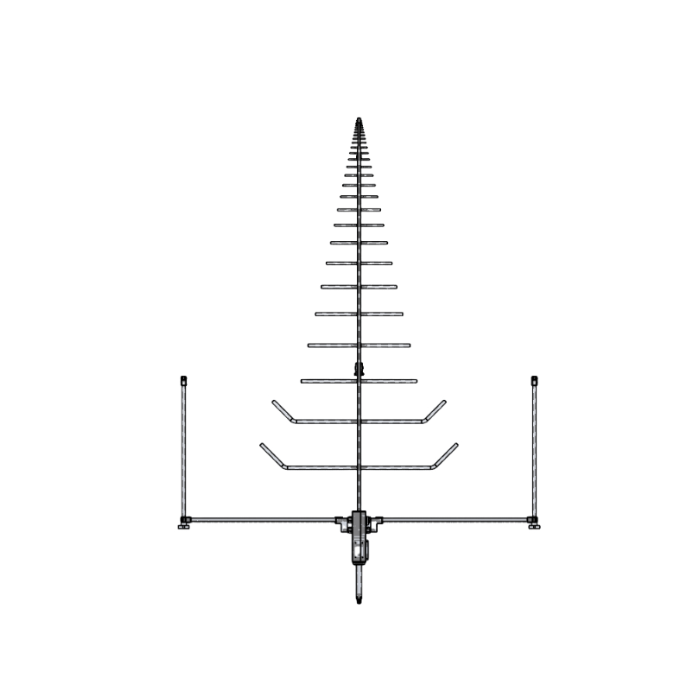

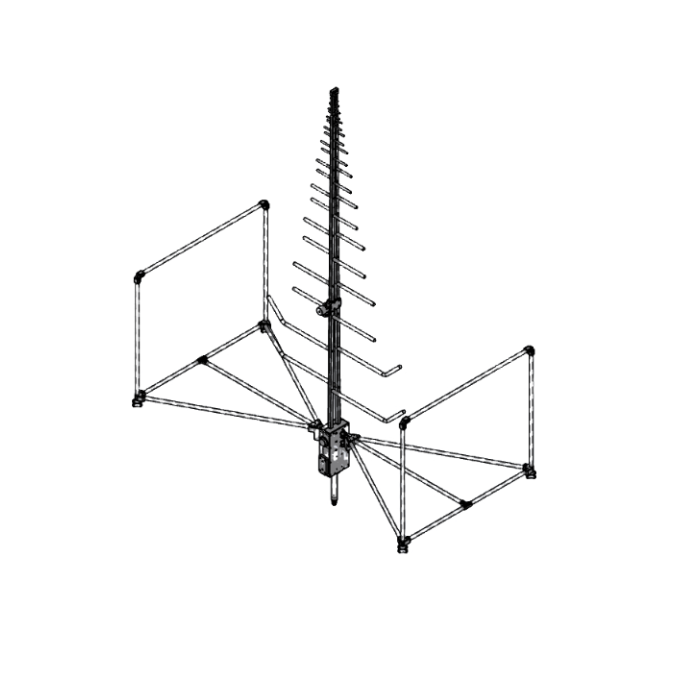

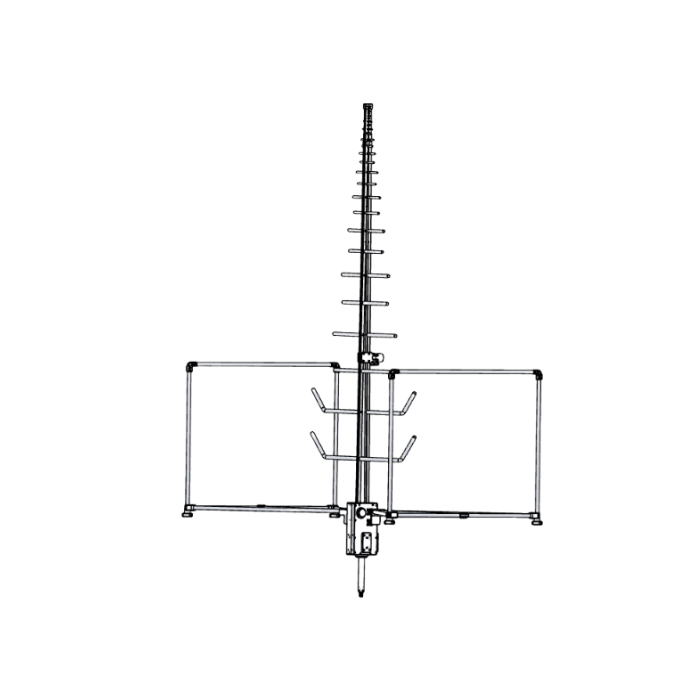

20MHz to 8GHz Broadband Log-Periodic N-Female Antenna
Broadband Directivity | Lightweight Engineering | Model: LO-20M08GA-NF
The LO-20M08GA-NF is a precision Broadband Log-Periodic Antenna engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan[cite: 9]. Operating across a wide spectrum from 20 MHz to 8 GHz, it provides consistent directional gain profiling and reliable front-to-back performance[cite: 9]. Featuring an optimized physical profile (1827 x 1458 mm) with an estimated weight of approximately 5.34 kg, it is equipped with a durable N-Female connector[cite: 9]. This antenna serves as an essential measurement standard for EMC/EMI compliance testing, spectrum surveillance, directional monitoring, and laboratory RF validation[cite: 9].
Technical Specifications
| Frequency Range | 20 MHz - 8 GHz |
| Antenna Type | Log-Periodic Antenna (Type: A) |
| Polarization | Linear |
| Impedance | 50 Ω |
| Connector | N-Female |
Mechanical & Physical Data

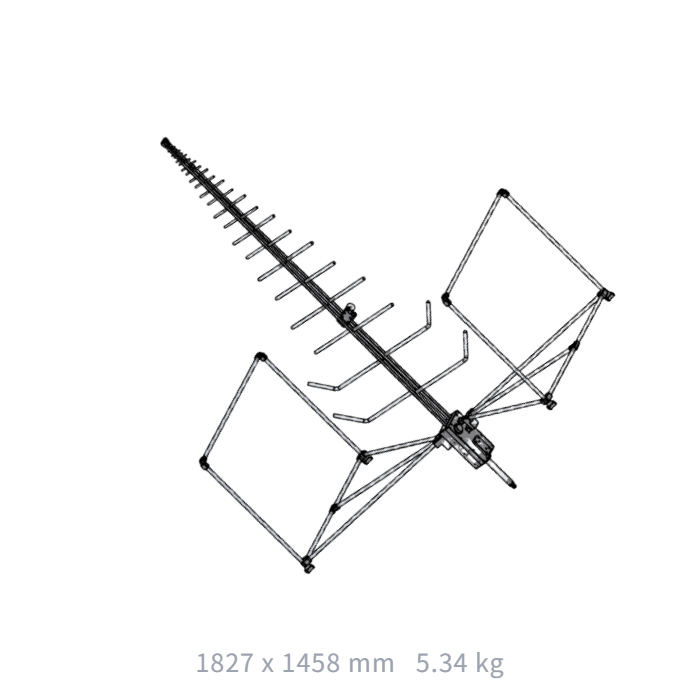

| Dimensions (L x W) | 1827 x 1458 mm (Total Length: 1997 mm) |
| Weight | 5.34 kg (Estimated ~5339 g) |
| Support Structure | Ø21.70 mm Mounting Tube |
| Country of Origin | Taiwan |
Key Design & Feature Highlights
Ultra-Wideband Spectrum
Covers 20 MHz to 8 GHz continuously, providing versatile multi-octave signal capture[cite: 9].
Stable Directivity
Precision log-periodic array ensures pure linear polarization and clean radiation patterns.
Optimized Mechanical Design
Structural support frame with Ø21.70 mm mounting tube ensures stable outdoor or lab installation[cite: 9].
Taiwanese Precision
100% engineered and manufactured in Taiwan to meet stringent EMC/EMI testing standards[cite: 9].
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
