  • 225MHz to 3000MHz Log Periodic Antenna (LPDA) N-Female

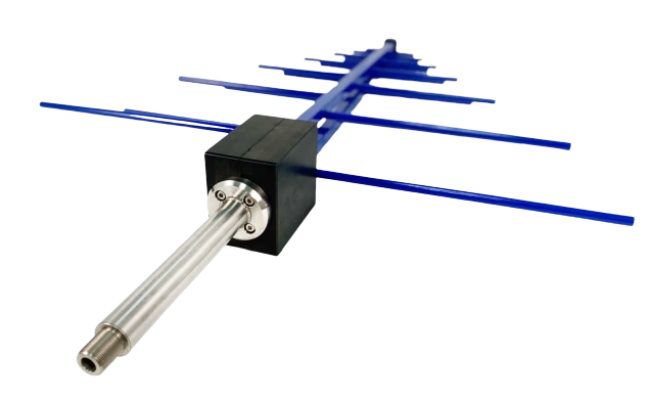

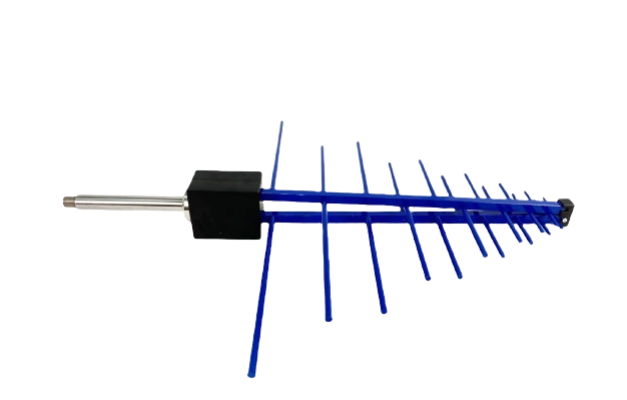

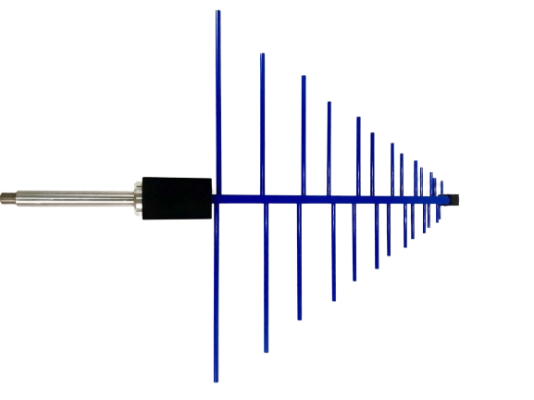

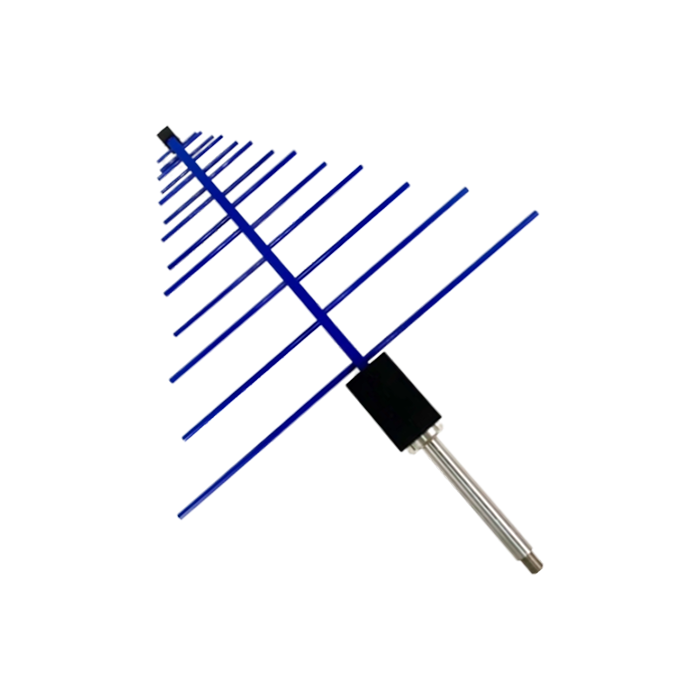

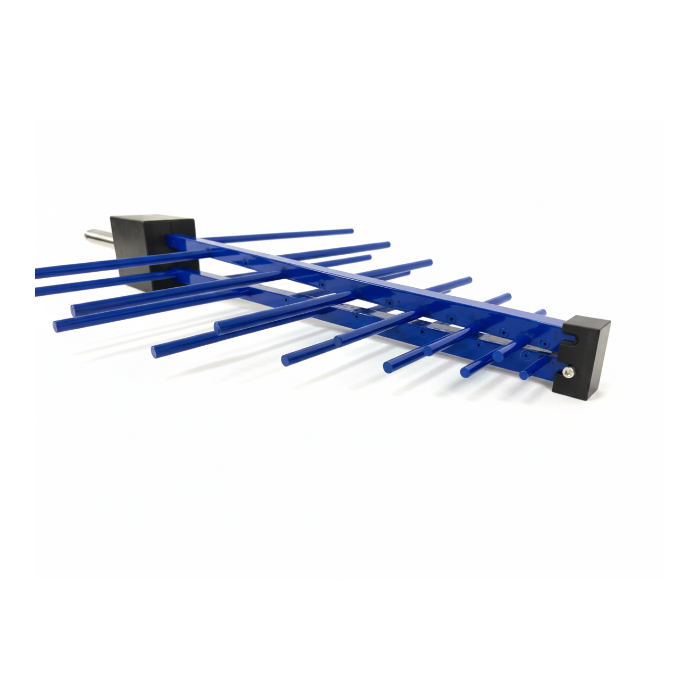

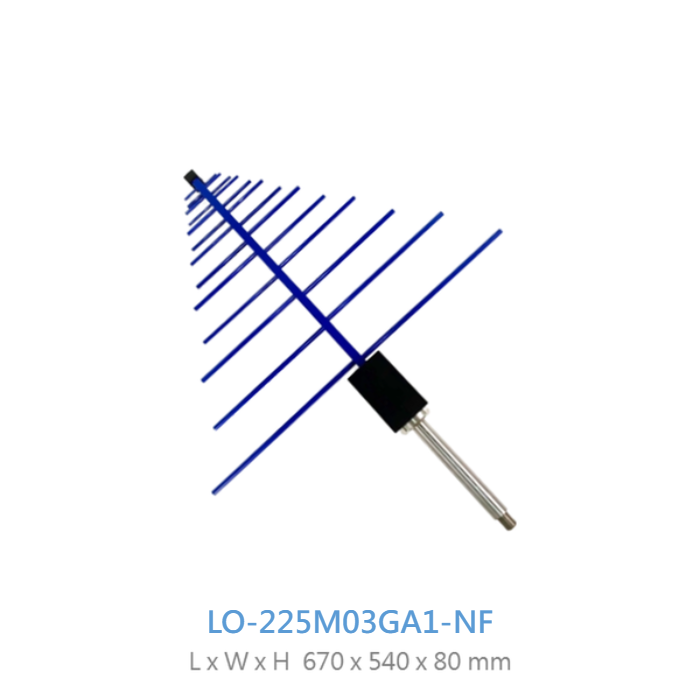

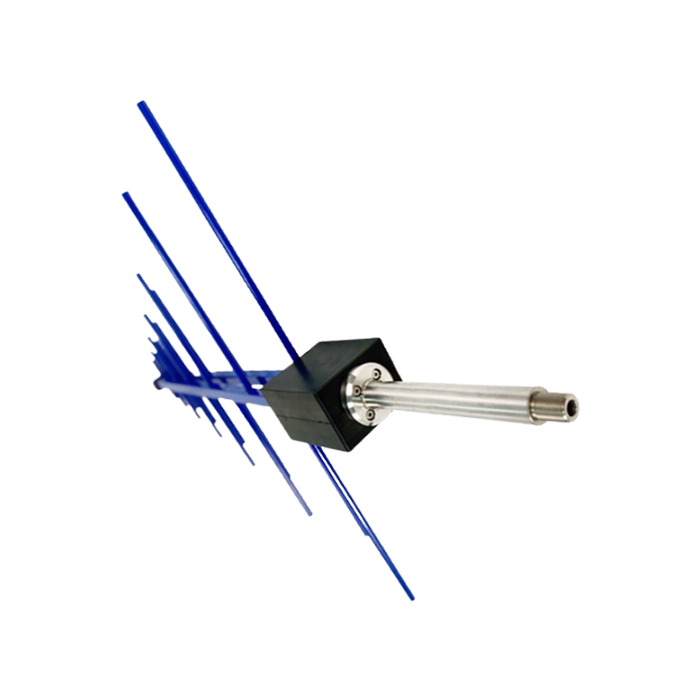

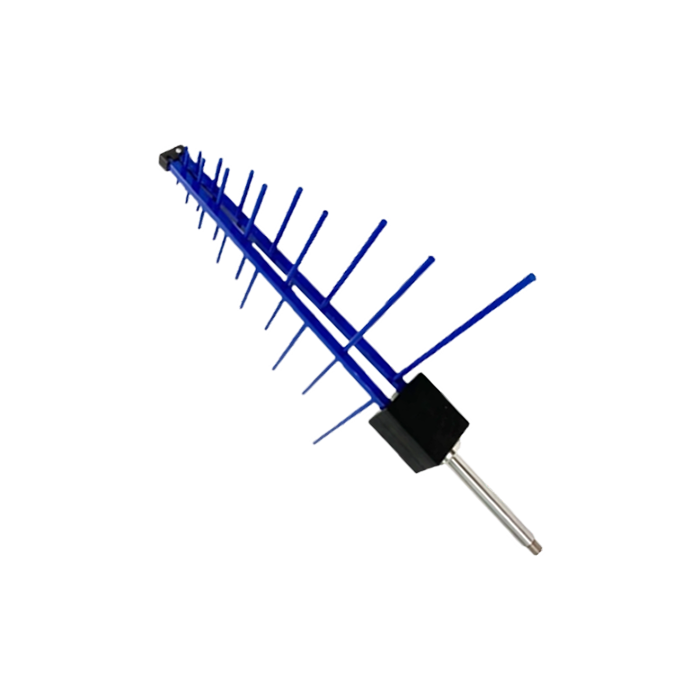

225MHz to 3000MHz Log Periodic Antenna (LPDA) N-Female

225MHz to 3000MHz Log Periodic Antenna (LPDA) N-Female

Model No: LO-225M03GA1-NF

Product Datasheet: Download

  • Frequency: 225 MHz to 3000 GHz
  • LxWxH: 670x540x80mm
  • N.W.: 1.45 KG
  • In Stock: 10 - Delivery in 15 days
Quantity:
INQUIRY

  • Description

  • Specifications

  • Product Video

Application:

  • LO-225M03GA1-NF - 225MHz to 3000MHz Log Periodic Antenna (LPDA)
  • General Antenna Testing, EMC/EMI pre-compliance test antennas
  • Radar Cross Section
  • Wireless

Feature:

  • Superior Performance
  • 6061 Aluminum metal alloy
  • Stainless Steel N-female
  • RoHS Compliant

Electrical Specs

Frequency Range

225MHz to 3000MHz

V.S.W.R

250Mhz – 300MHz: 3.5:1

300Mhz – 2400MHz: 2.5:1

Antenna Type

Log

Radiation

Directional

Gain

3-9dBi

Polarization

Vertical or horizontal

Maximum Power

150 Watts

Vertical Beamwidth

47.2 Deg

Horizontal Beamwidth

91.71 Deg

Impedance

50 Ohm

Connector

N-Female

Mechanical Specifications

Dimension (LxWxH)

670x540x80mm

Antenna Weight (N.W)

1.45kg

Application

Indoor / Outdoor

Radom Material

White Fiberglass

Parts Material

Aluminum

Wind Survival

Greater than 150MPH

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
