Description & Specification

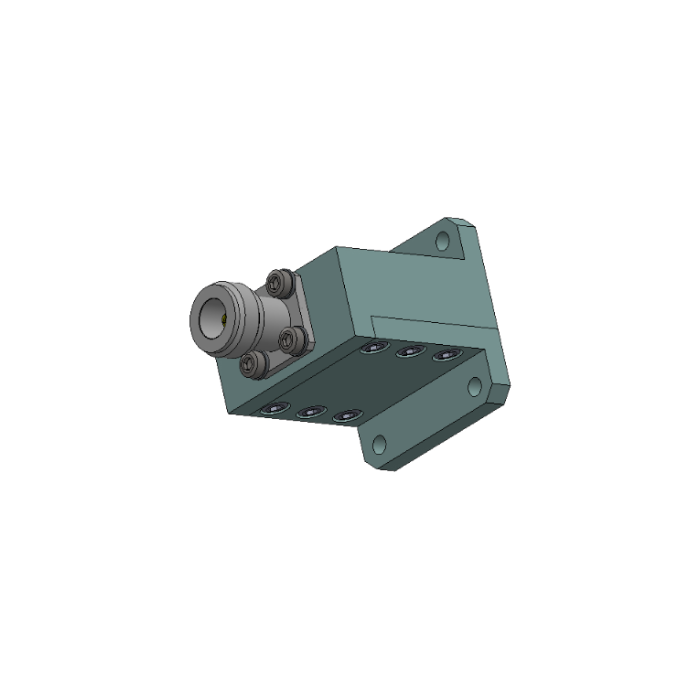

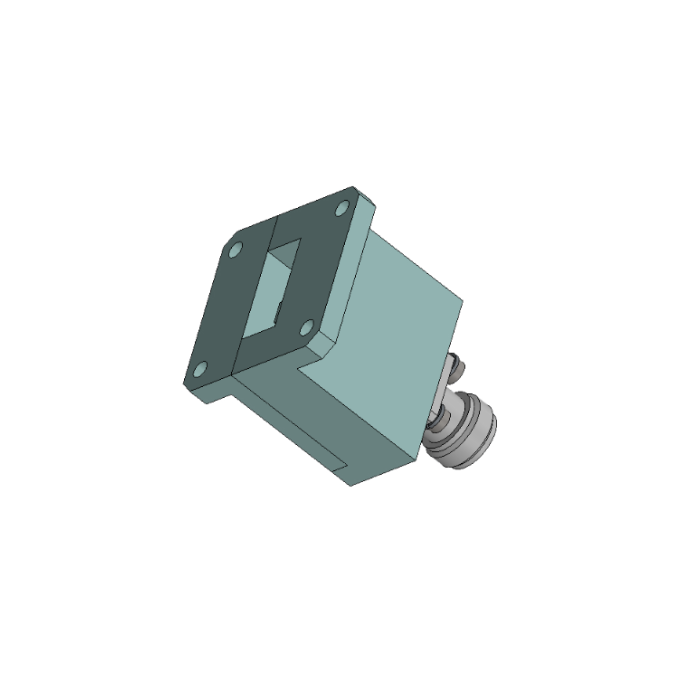

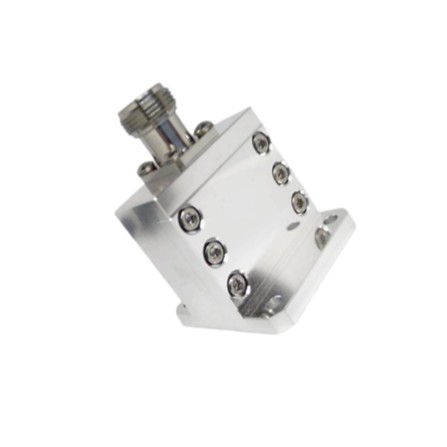

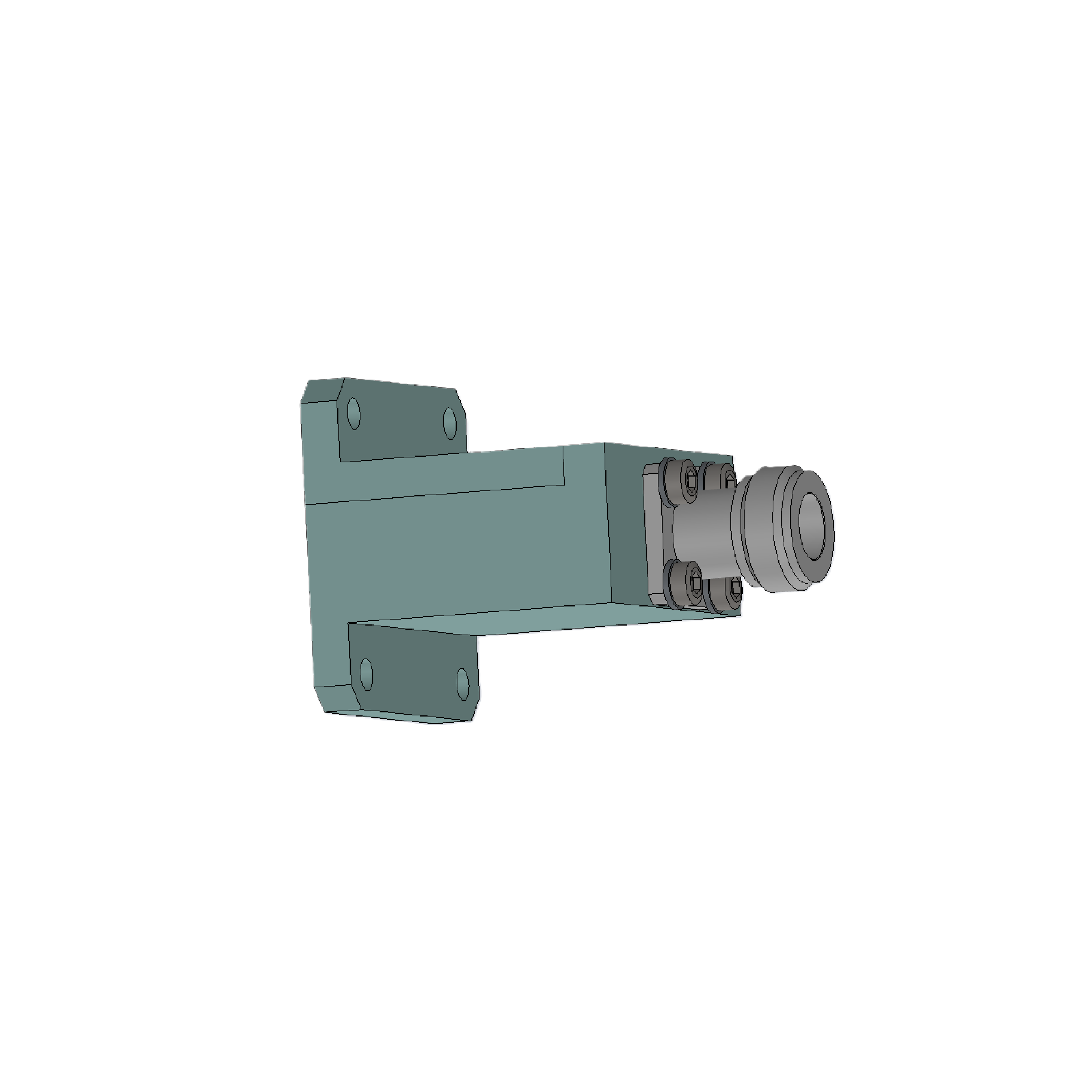

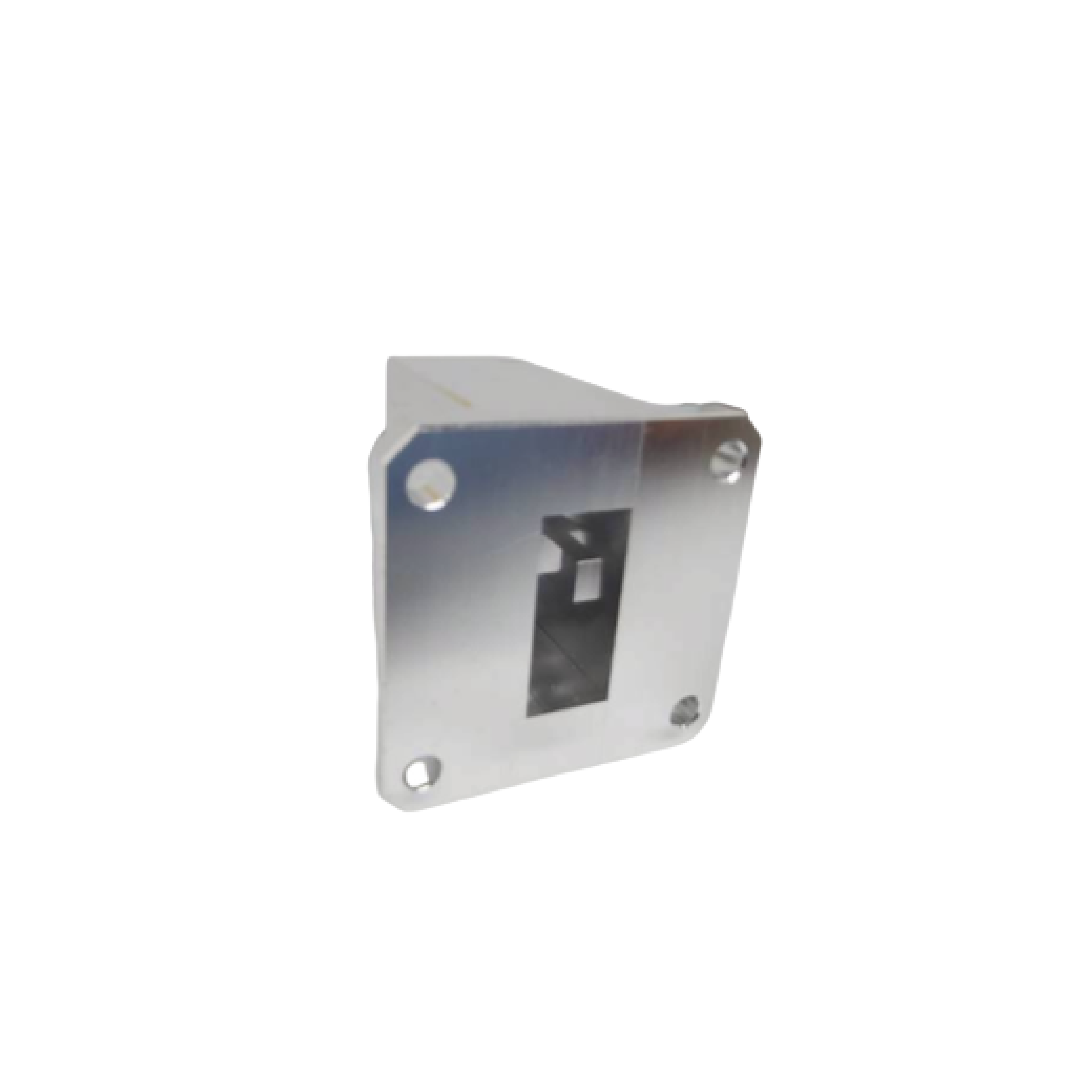

WR90 8.2 to 12.4GHz N-Female Endlaunch Waveguide to Coaxial Adapter
X-Band In-Line High-Power Transition | Flange: UBR Type: E2 | Model: WC-090-UBR-E2-NF
The WC-090-UBR-E2-NF is a high-power X-band endlaunch rectangular waveguide to coaxial adapter professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the 8.2 GHz to 12.4 GHz frequency range, it provides a high-efficiency in-line transition between standard WR-90 (WG16 / R100) rectangular waveguides and 50-ohm N-Female coaxial systems. Built with tight mechanical tolerances, it delivers a low insertion loss of only 0.15 dB and a maximum VSWR of 1.25:1. Featuring a robust aluminum alloy body with an integrated square UBR flange (compatible with UBR100 / FBP100 patterns) and a durable passivated stainless steel N-Female connector, it handles power levels up to 150W CW / 3 kW Peak, providing an essential solution for microwave communications, radar system testing, and laboratory RF instrumentation.
Technical Specifications
| Frequency Range | 8.2 - 12.4 GHz |
| Waveguide Size | WR-90 (WG16 / R100) |
| Flange Type | UBR (UBR100 / FBP100 Compatible) |
| Connector Interface | N-Female (Endlaunch In-Line) |
| Impedance | 50 Ω |
| Insertion Loss | 0.15 dB |
| V.S.W.R (Max) | 1.25 : 1 |
| Continuous Power (CW) | 150 Watts |
| Peak Power Handling | 3 kW |
Mechanical & Physical Data

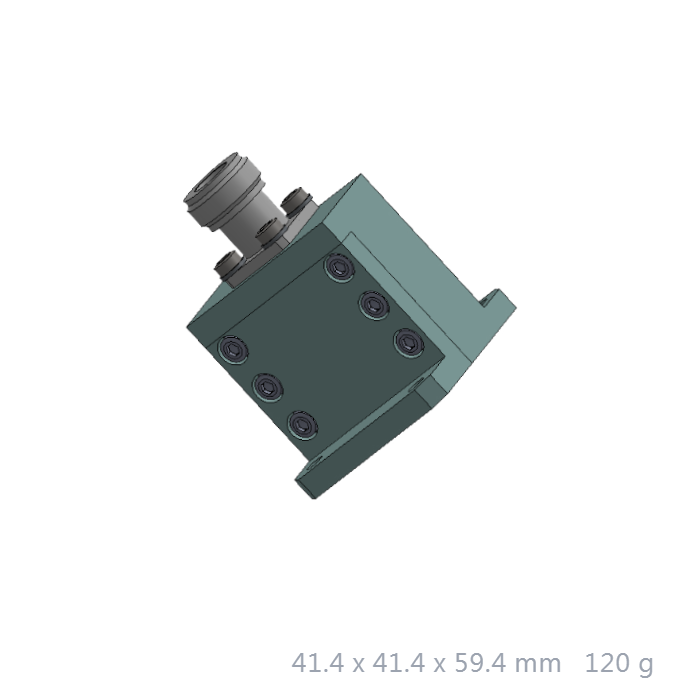

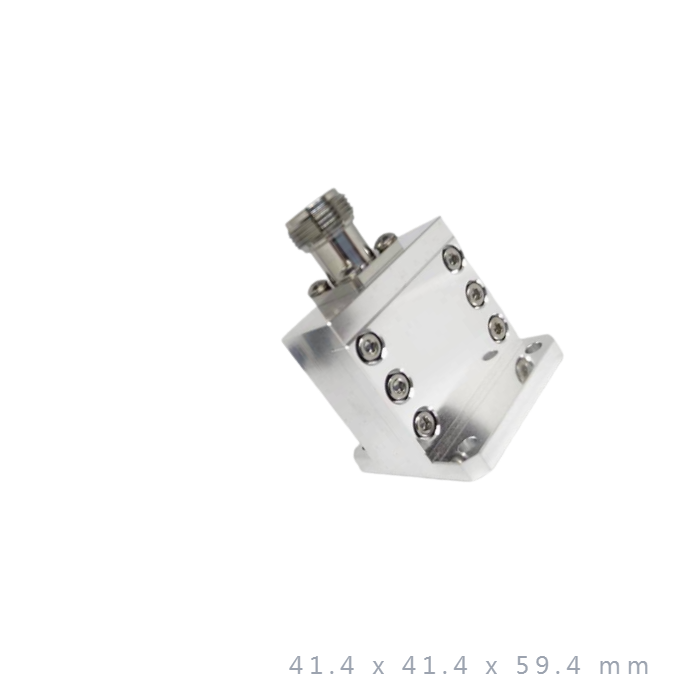

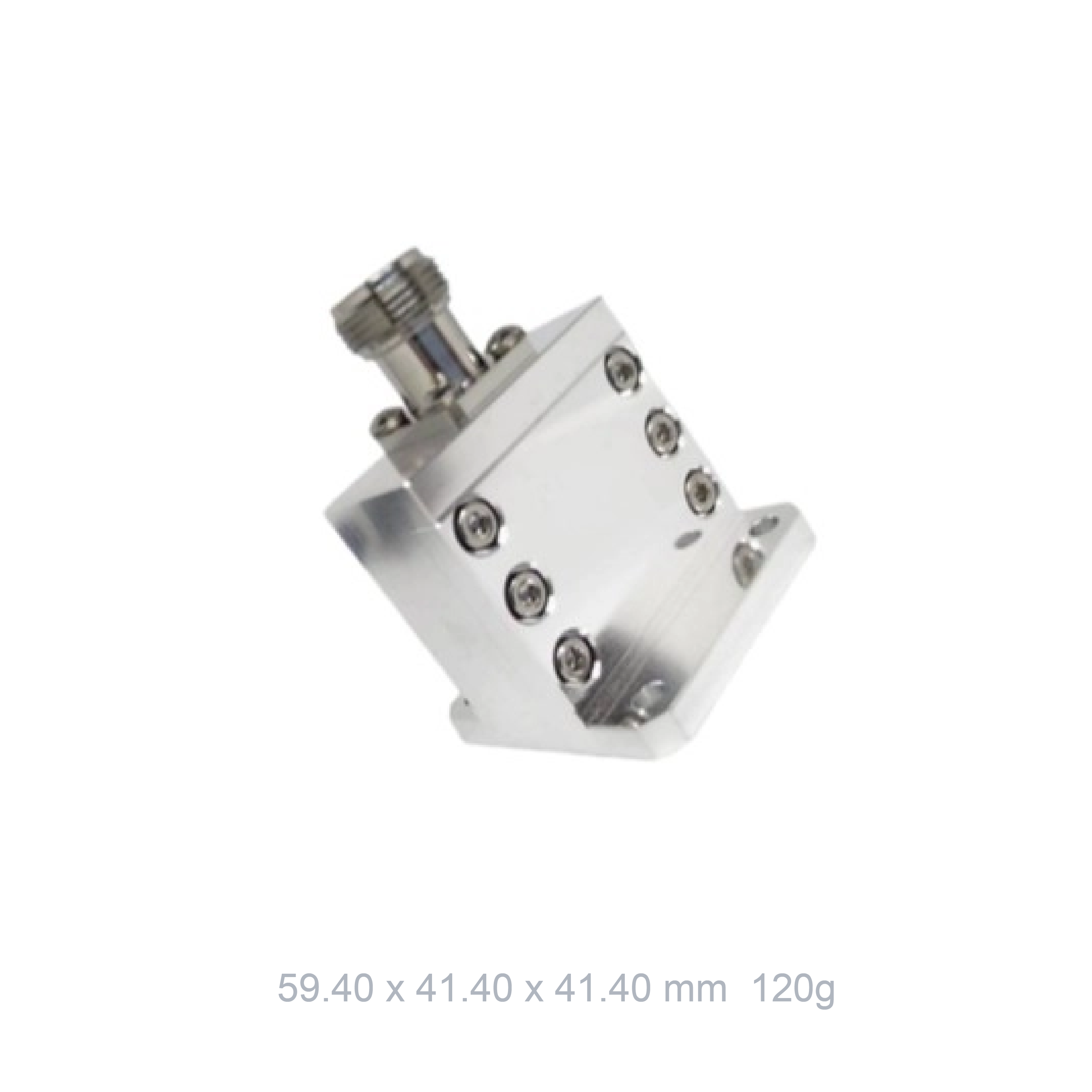

| Dimensions (L x W x H) | 59.40 x 41.40 x 41.40 mm |
| Component Weight | 120 g (Estimated ~106.32 g) |
| Body Material | Precision CNC Aluminum Alloy |
| Connector Material | Passivated Stainless Steel |

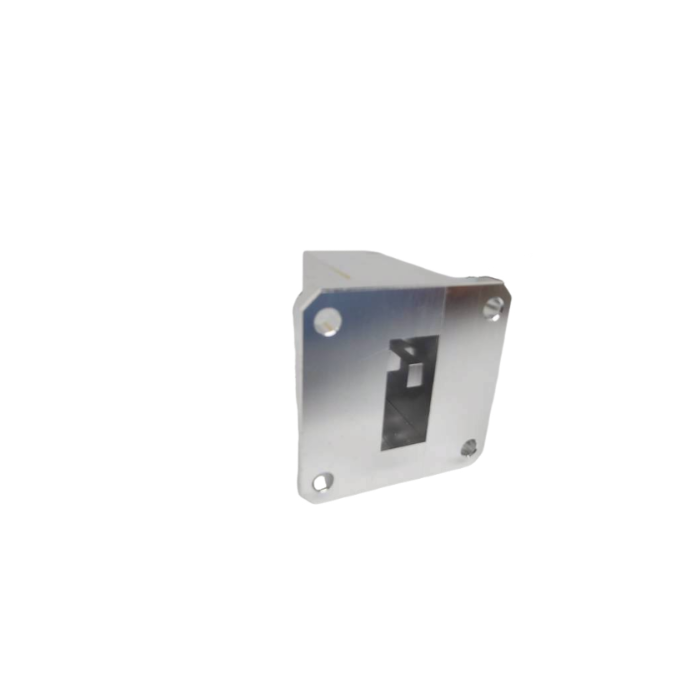

| Flange Hole Pattern | 4 x 4.17 mm Thru Holes (30.99 x 32.51 mm Spacing) |
| Country of Origin | Taiwan |
Insertion Loss Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Return Loss Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
In-Line Endlaunch Design
Axial coaxial configuration streamlines waveguide transitions for benchtop measurement setups.
High Power Rating
Handles robust power levels up to 150W continuous CW and 3 kW peak power across the full X-band.
Durable N-Female Interface
Passivated stainless steel N-Female interface provides exceptional mechanical strength and mating durability.
Taiwanese Precision
Engineered and manufactured in Taiwan to guarantee tight tolerances and reproducible metrology results.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
New Products
Related Products
NEW
WC-090-UBR-E1-NF
WR90 Waveguide to Coax Adapter END Launch, 8.2GHz to 12.4GHz, N-Female Connector, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Component Type: | End Launch Waveguide to Coax Adapter |
| Waveguide Size: | WR-90 (UG-39/U / N-Female) |
| V.S.W.R (Max): | 1.3 : 1 |
| Power Handling (CW): | 300 Watts |
| Stock: | 0 |
| 2026/10/12 | |
NEW
WC-090-PBR-A2-NF
WR90 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, N-Female Connector, PBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 300 Watts (CW) |
| Waveguide Size: | WR-90 (UG-39/U / N-Female) |
| Stock: | 0 |
| 2026/06/16 | |
NEW
WC-090-PBR-SF
WR90 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, SMA-Female Connector, PBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 250 Watts (CW) |
| Waveguide Size: | WR-90 (UG-39/U / SMA-Female) |
| Stock: | 0 |
| 2026/06/15 | |
NEW
WC-090-PBR-E1-SF
WR90 Waveguide to Coaxial Adapter END launch, 8.2 to 12.4GHz Frequency, SMA-Female Connector, PBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 200 Watts (CW) |
| Waveguide Size: | WR-90 (UG-39/U / SMA-F End Launch) |
| Stock: | 0 |
| 2026/08/21 | |
WC-090-D-SF
WR90 1/2 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, SMA-Female Connector, Type D
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | Standard (WR90) |
| Waveguide Size: | WR-90 (1/2 Size / SMA-F) |
| Stock: | 0 |
| 2026/06/16 | |
NEW
WC-090-D2-SF
WR90 1/2 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, SMA-Female Connector, Type D2
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi (Waterproof Radome) |
| Waveguide Size: | WR-90 (SMA-Female SUS) |
| Stock: | 1 |
| 2026/06/09 | |
NEW
WC-090-D3-SF
WR90 1/2 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, SMA-Female Connector, Type D3
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 300 Watts (CW) |
| Waveguide Size: | WR-90 (1/2 Height / SMA-F) |
| Stock: | 0 |
| 2026/06/16 | |
NEW
WC-090-UBR-A1-NF
WR90 Waveguide to Coaxial Adapter, UBR Flange: UG-39/U, 8.2 to 12.4GHz Frequency, N-Female Connector
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 300 Watts (CW) |
| Waveguide Size: | WR-90 (UG-39/U) |
| Stock: | 0 |
| 2026/08/21 | |
NEW

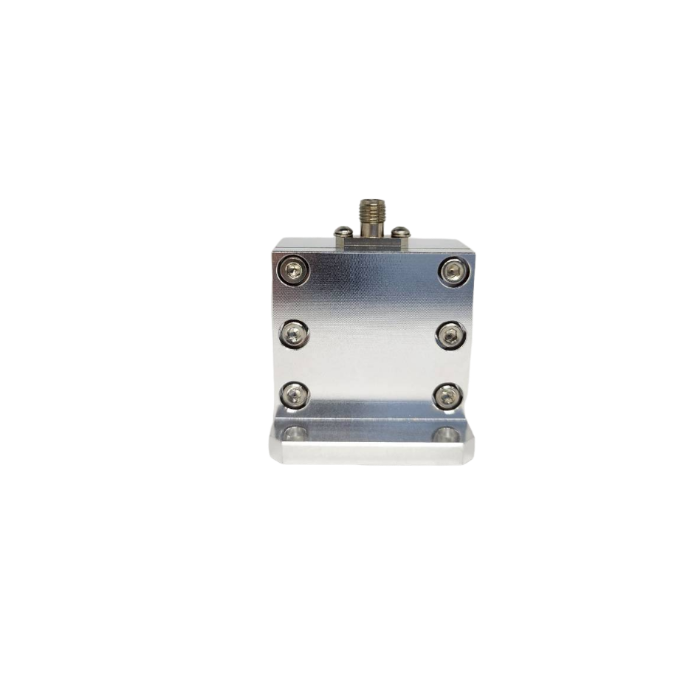

WC-090-UBR-E2-SF
