WR1800 Waveguide Adapter (WC Series)
- Select
WC Series • Sub-1GHz / VHF (410 – 620 MHz)

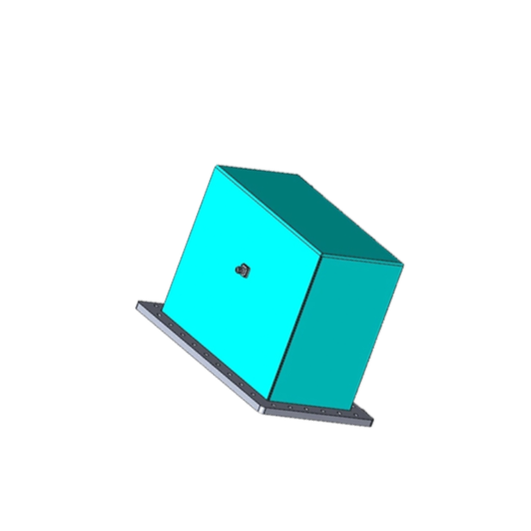

FT-RF WR1800 Waveguide Adapter
FT-RF WR1800 Waveguide Adapters deliver heavy-duty mode transition solutions across VHF/UHF transition bands (410 MHz to 620 MHz). Constructed from heavy-duty structural aluminum, they facilitate efficient coupling between large WR1800 waveguide lines and 50 Ω coaxial cables.
Engineered with high structural strength and internal support ribbing, WR1800 adapters maintain tight physical tolerances across large dimensions. Options include heavy-duty 7/16 DIN or N-type female connectors and CPR1800F cover flanges, guaranteeing minimal return loss and dependable Signal Integrity.
🛠️ Engineering & Customization Options
Tailored structural designs and custom launch options:
- Flange Configuration: CPR1800F cover flange.
- Coaxial Interface: Heavy-Duty 7/16 DIN / N-Type Female.
- Reinforced Structure: High CW power capacity design.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 410 MHz to 620 MHz (VHF / Sub-1GHz) |
| Coaxial Interface | Precision Heavy-Duty 7/16 DIN / N-Type Female (50 Ω) |
| VSWR Performance | < 1.25 : 1 Typical |
| Flange Configuration | CPR1800F Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
NEW
WC-1800-UDR-716
WR1800 Waveguide to Coaxial Adapter Flange: UDR, 410 MHz to 620 MHz, 7/16-Female connector
View Details
Made in Taiwan
| Frequency Range: | 410 to 630 MHz |
| Connector Type: | 7/16 DIN Female |
| Max Power (W): | 3000W (3kW) |
| Waveguide Size: | WR-1800 (UDR) |
| Stock: | 0 |
| 更新日期: 2026/06/10 | |
WC-1800-UDR-NF
WR1800 Waveguide to Coaxial Adapter Flange: UDR, 410 MHz to 620 MHz, N-Female connector
View Details
Made in Taiwan
| Frequency Range: | 450 MHz - 630 MHz |
| Waveguide Type: | WR-1800 (UHF Scale) |
| Flange / Interface: | UDR / N-Female |
| Application: | High-Power RF Systems |
| Stock: | 0 |
| 2026/06/10 | |
