WC-1800-UDR-716 Waveguide to Coaxial Adapter
7/16 DIN High-Power Interface | Heavy-Duty WR-1800 Standard | 410 MHz – 630 MHz
The WC-1800-UDR-716 is a high-performance Waveguide to Coaxial Adapter specifically engineered for the WR-1800 standard. Operating within the 410 MHz to 630 MHz UHF spectrum, this heavy-duty 8.5kg component is ideal for pairing with standard gain horn antennas in professional EMI/EMC testing and laboratory measurement environments. Featuring a high-power 7/16 DIN Female connector, it manages robust continuous power loads up to 3000 Watts (3kW CW), ensuring exceptional Signal Integrity and stable RF coupling for large-scale UHF broadcast and radar sub-systems. Expertly manufactured in Taiwan, it is built to satisfy the most demanding industrial and high-power scientific measurement standards.
Electrical & RF Performance
| Frequency Range | 410 MHz to 630 MHz |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 3000 Watts (3kW CW) |
| Impedance | 50 Ohm |
Mechanical & Construction
| Waveguide Standard | WR-1800 / R5 / WG3 |
| Waveguide Flange | UDR Style (Universal) |
| Coaxial Connector Type | 7/16 DIN Female |

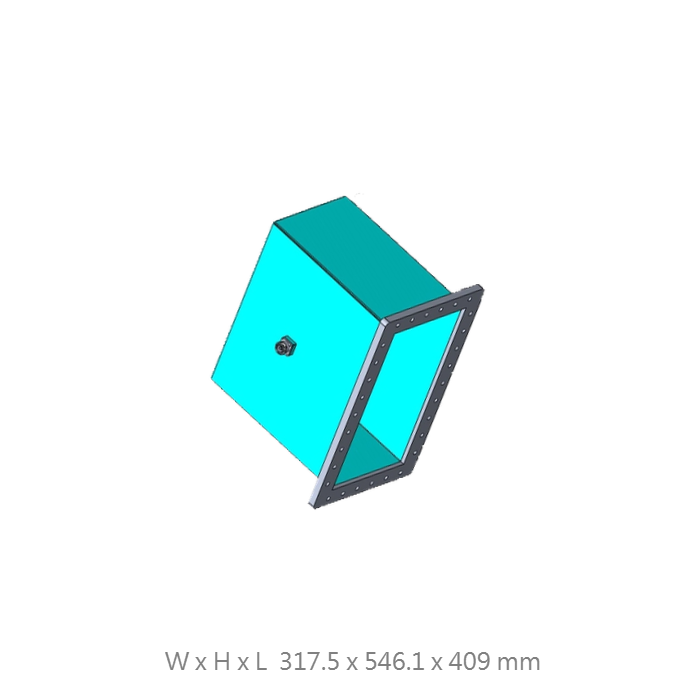

| Dimensions (W x H x L) | 317.5 x 546.1 x 409 mm |
| Net Weight | 8.5 kg (Heavy Duty Build) |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
3kW High-Power Domination
Designed to handle massive continuous power loads, providing a robust transition for high-power UHF station feeds and industrial RF transmitter sub-systems.
Low-Loss 7/16 DIN Interface
Equipped with a precision 7/16 DIN Female connector for superior power handling and lower intermodulation distortion compared to standard coaxial interfaces.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, providing reliable phase stability and enduring laboratory-grade consistency.
Precision Aluminum Architecture
Weighing 8.5kg with high-fidelity machining, this adapter ensures maximum mechanical stability and long-term structural durability in demanding high-power industrial environments.
Inquire About Professional Waveguide Solutions
Contact our engineering team to obtain individual V.S.W.R plots, customized flange drilling, or alternative waveguide adapter designs.
