Description & Specification
800MHz to 8GHz High Gain N-Female Double-Ridged Horn Antenna
High Gain Directivity | High Power Handling | Model: HA-08M08GH-NF
The HA-08M08GH-NF is a high-gain Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan[cite: 5]. Operating across 800 MHz to 8 GHz, it provides high directional gain ranging from 12 to 20 dBi (maintaining 15 dBi gain up from 1 to 8 GHz)[cite: 5]. Robustly constructed with integrated structural handles and mounting brackets, it supports continuous power handling up to 250W (CW) and peak power handling up to 1KW[cite: 5]. Equipped with a precision N-Female connector, it is an essential instrument for EMC/EMI immunity testing, high-power microwave measurement, and precision field illumination[cite: 5].
Technical Specifications
| Frequency Range | 800 MHz - 8 GHz |
| Antenna Type | Double Ridged Horn |

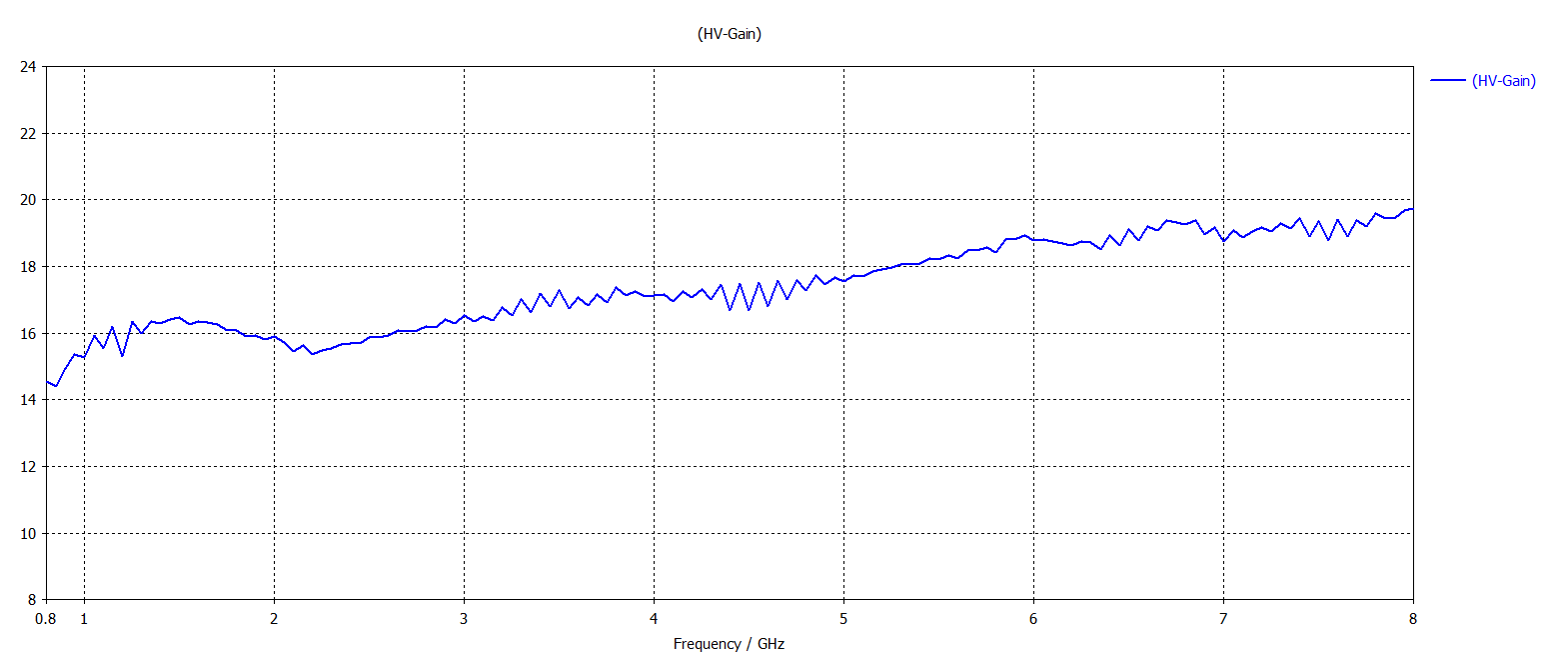

| Gain | 12 - 20 dBi (15 dBi up: 1 - 8 GHz) |
| CW Power | 250 W |
| Peak Power | 1 KW |
| Impedance | 50 Ω |
Mechanical & Physical Data

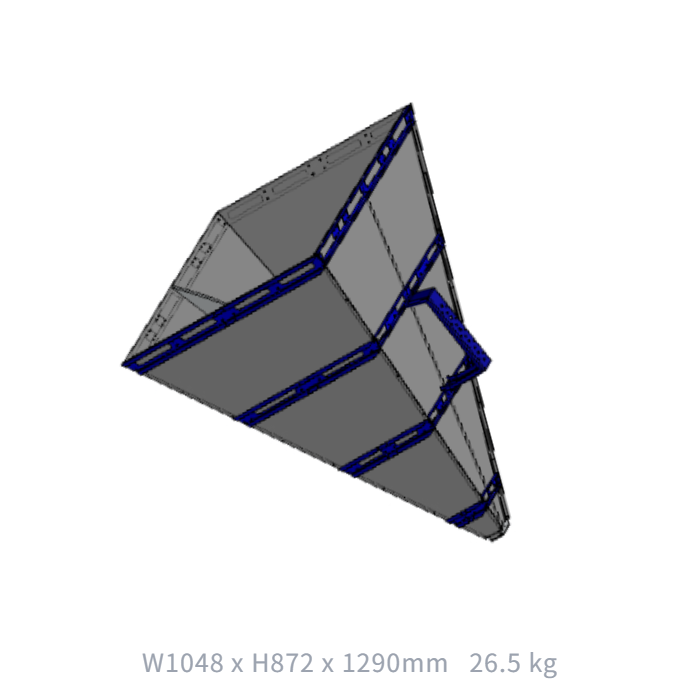

| Dimensions (W x H x L) | 1048 x 872 x 1290 mm |
| Weight | 26.5 kg |
| Connector | N-Female |
| Mounting Interface | Multiple Holes (Ø8.60 / Ø6.40 / Ø12.40 mm) |
| Country of Origin | Taiwan |
Key Design & Feature Highlights
High Gain Performance
Achieves 12 to 20 dBi gain across 800MHz to 8GHz for superior field generation[cite: 5].
High Power Rating
Handles up to 250W CW and 1KW peak input power for high-intensity EMC testing[cite: 5].
Robust Architecture

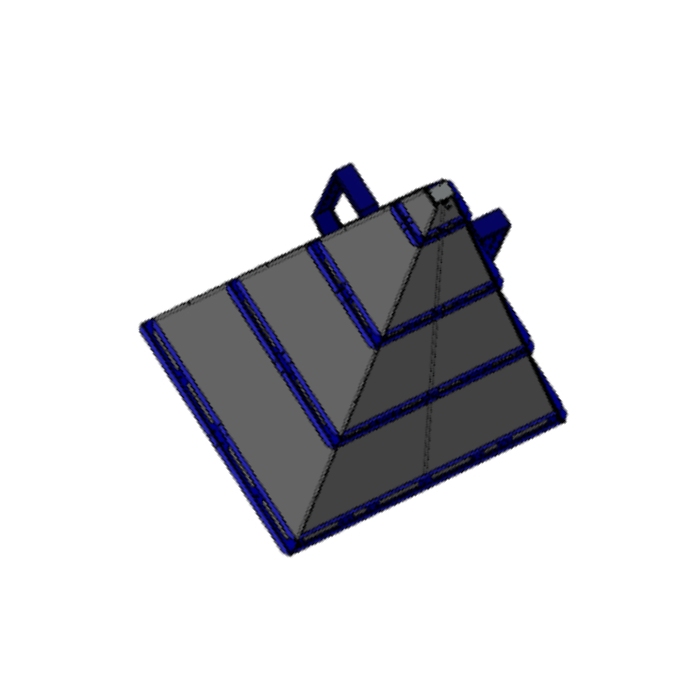

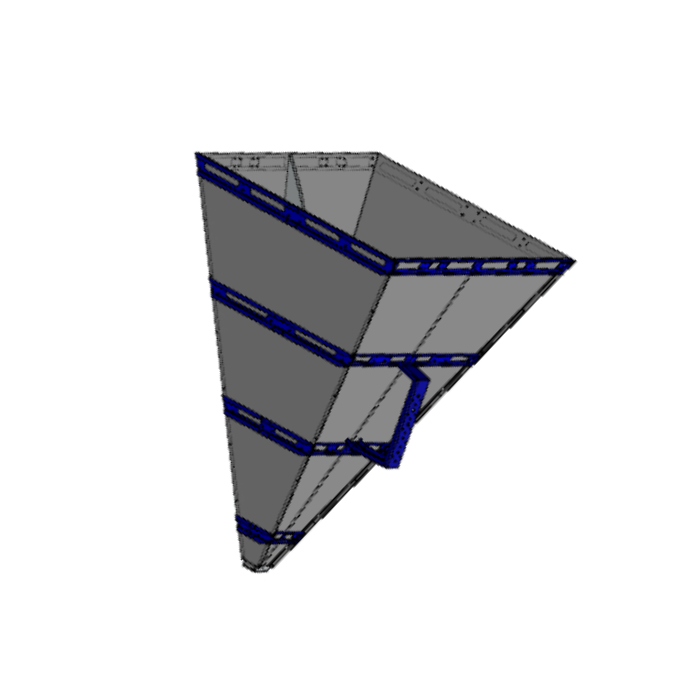

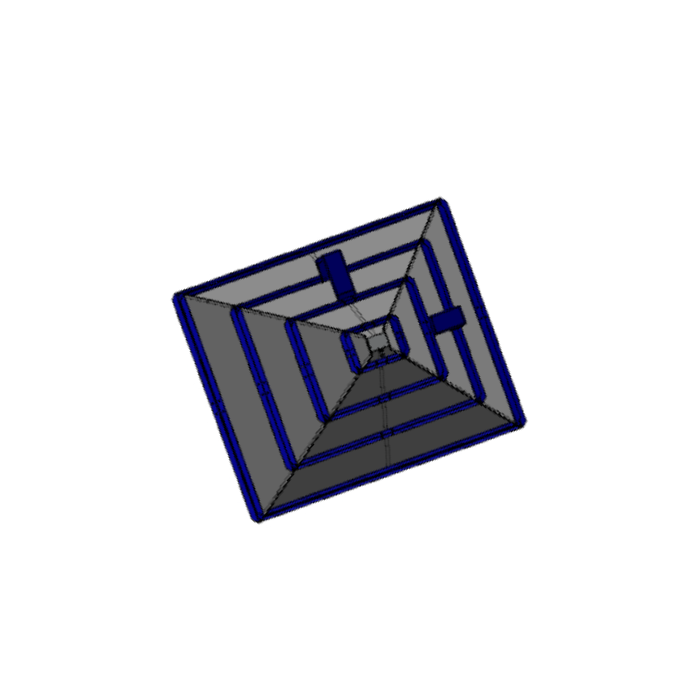

Heavy-duty construction with reinforced frame and integrated handling structure[cite: 5].
Precision Made in Taiwan
Precision-engineered in Taiwan for laboratory durability and traceable RF accuracy[cite: 5].
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
