Description & Specification
2 to 8GHz 16dBi Outdoor Waterproof N-Female Horn Antenna
Model: HA-0208J16A-NF (Upgrade version of HL-0208J16A-NF)

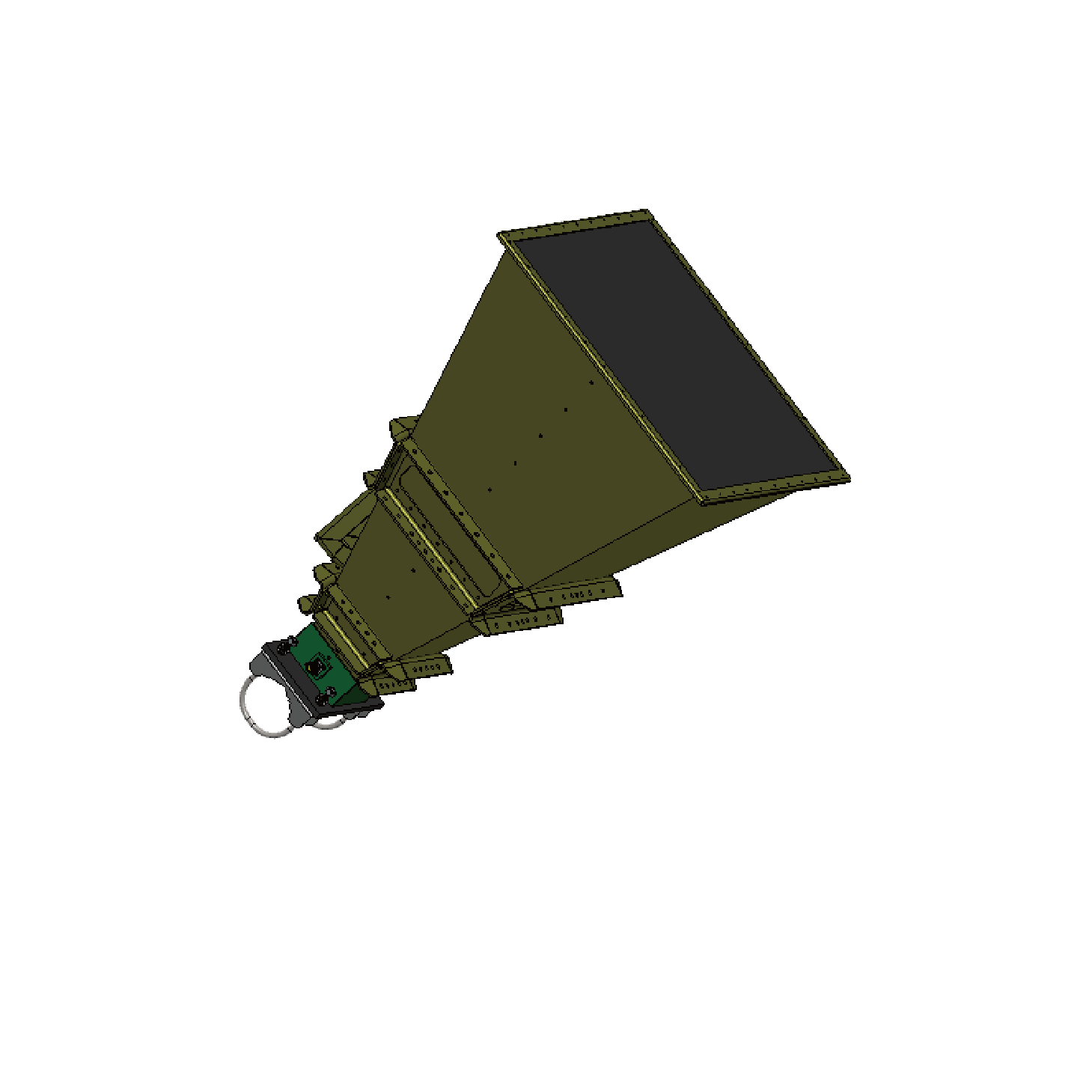

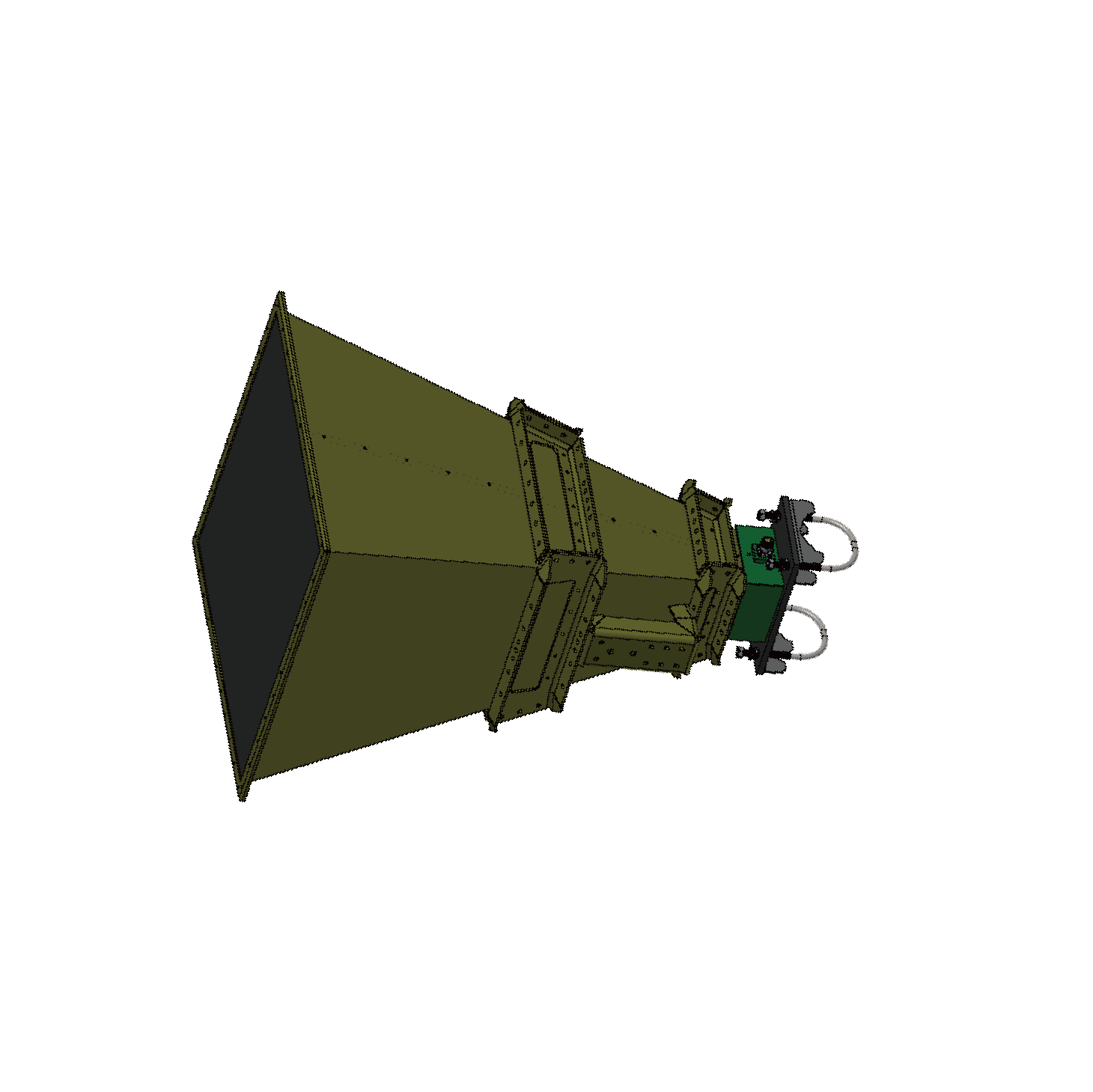

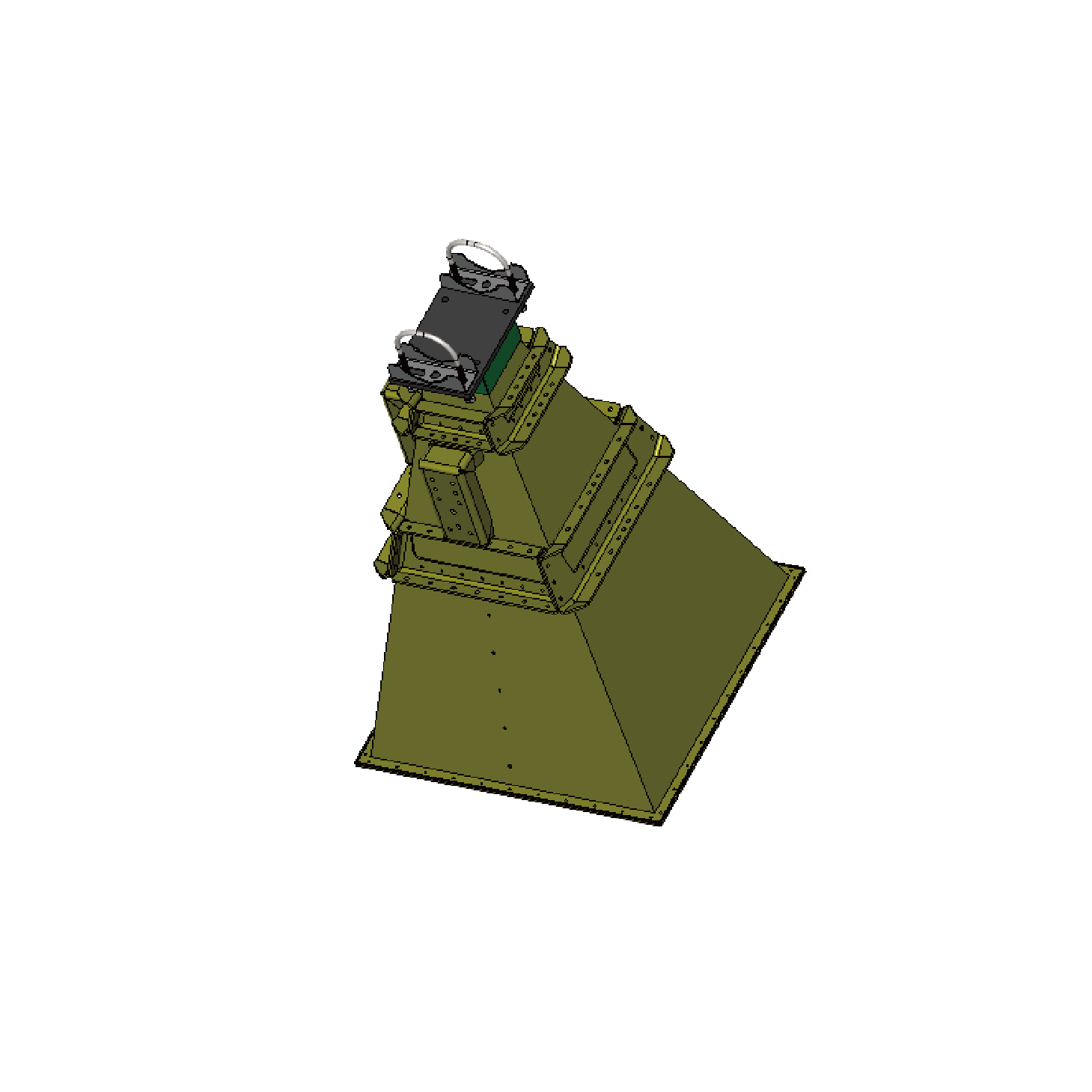

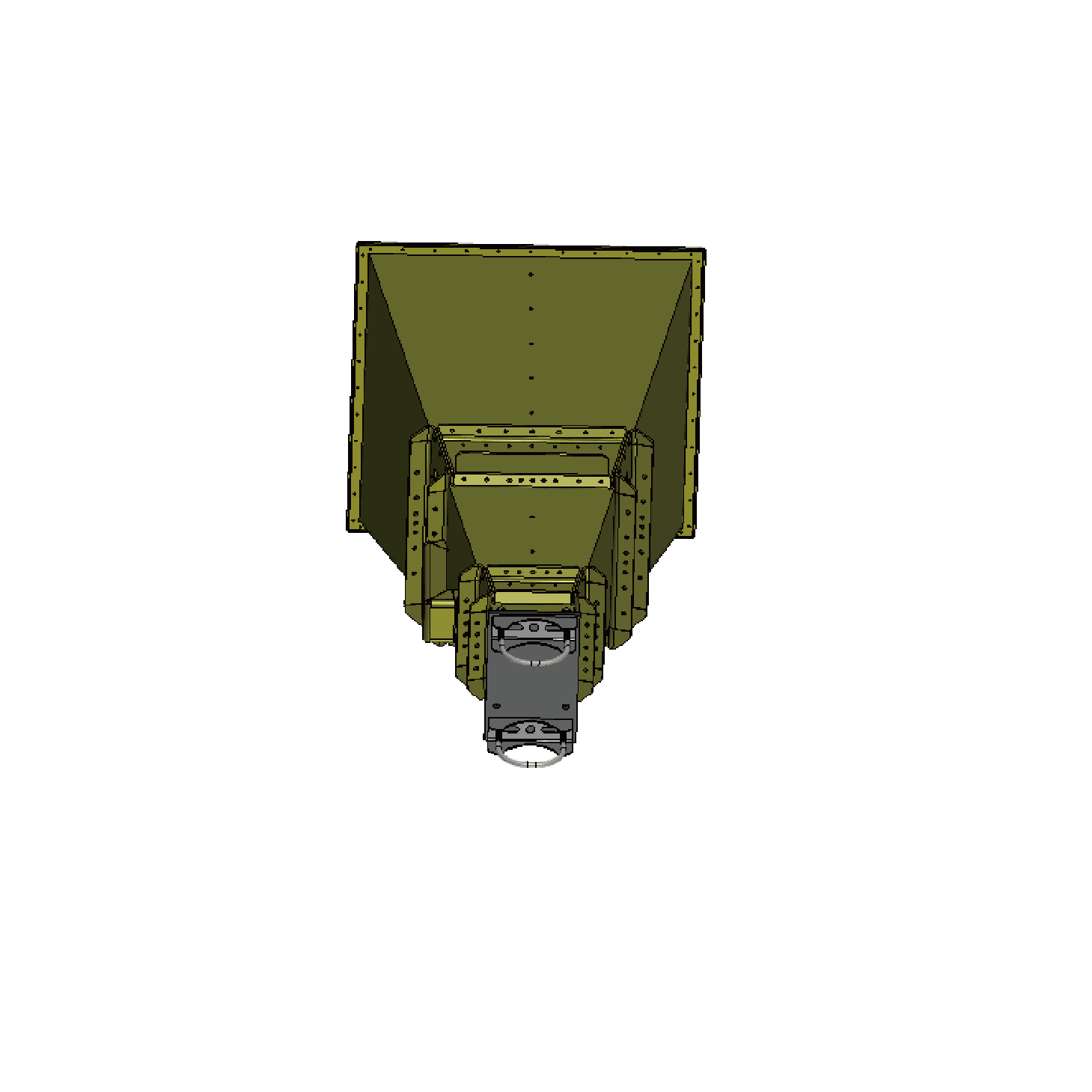

The HA-0208J16A-NF (Upgrade version of HL-0208J16A-NF) is a high-gain Double Ridged Broadband Waveguide Horn Antenna professionally designed and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Covering the frequency spectrum from 2 GHz to 8 GHz, it delivers high directional performance with a nominal gain of 16 dBi. Featuring an aperture measuring 457 x 457 mm and an overall length of 676 mm, it is constructed from precision-formed aluminum alloy weighing approximately 10.63 kg. Engineered for synchronized horizontal and vertical installation, it is fitted with a durable N-Female coaxial connector and includes a dedicated 3-inch stainless steel U-bolt mounting bracket set (MO-A3-1), making it an optimal solution for high-power directional RF transmission, field communications, and broadband testing deployments.
Technical Specifications
| Frequency Range | 2 - 8 GHz |
| Antenna Type | Double Ridged Broadband Horn Antenna |
| Nominal Gain | 16 dBi |
| Radiation & Polarization | Directional | Vertical or Horizontal (Synchronized) |
| Impedance | 50 Ω |
| Connector | N-Female |
Mechanical & Physical Data

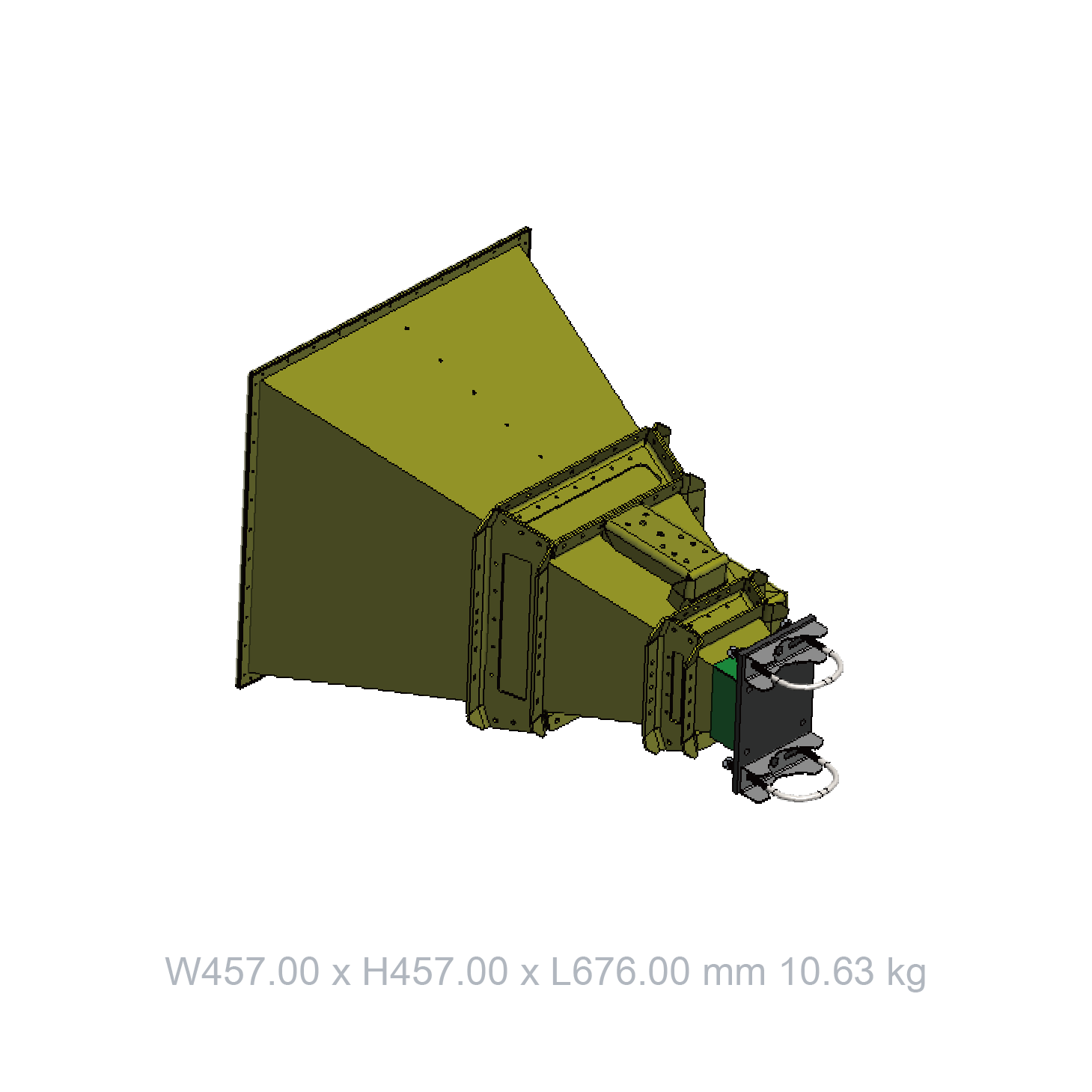

| Dimensions (W x H x L) | 457 x 457 x 676 mm |
| Antenna Weight (N.W) | 10.63 kg (Estimated ~10626.81 g) |
| Body Material | High-Grade Aluminum Alloy & Stainless Steel 303/304 |
| Environmental Protection | Outdoor Waterproof Enclosure |
| Mounting Hardware | 3-Inch Stainless Steel U-Bolt Set (MO-A3-1) Included |
| Country of Origin | Taiwan |
Gain Calibration Plot
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
High Gain Performance
Delivers high front directivity of 16 dBi across 2 GHz to 8 GHz for focused coverage and extended range.
Outdoor Waterproof Sealing
Sealed structure designed specifically for harsh outdoor environments and prolonged mast deployments.
Dual Orientation Mounting
Supports synchronized horizontal and vertical installation via heavy-duty 3-inch stainless steel U-bolt kits.
Taiwanese Precision
Precision CNC machined from high-grade aluminum and stainless steel in Taiwan for superior structural stability.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
