5GHz to 40GHz Double Ridged Broadband Waveguide Horn 2.92mm-Female Antenna (Upgrade version of HA-0543GS-KF)
Fei Teng Wireless - Horn Antenna Specialist
10 out of
10
-
Description & Specification

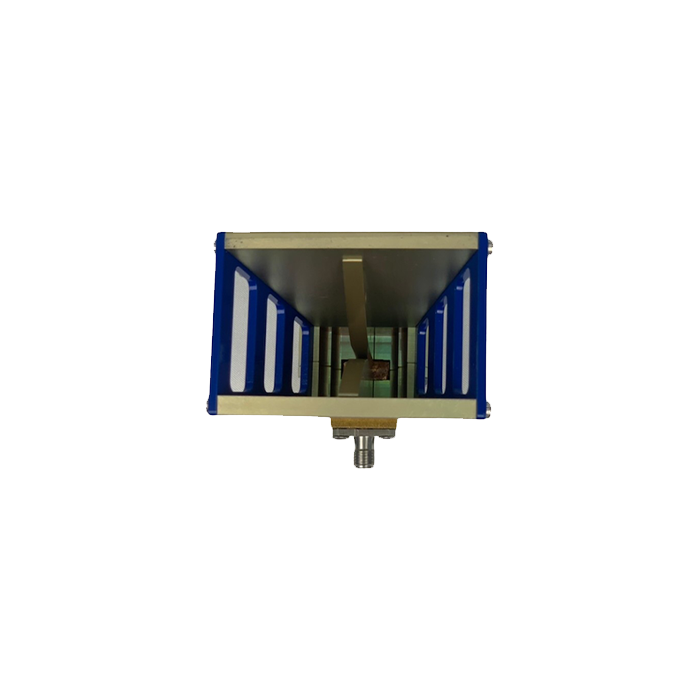

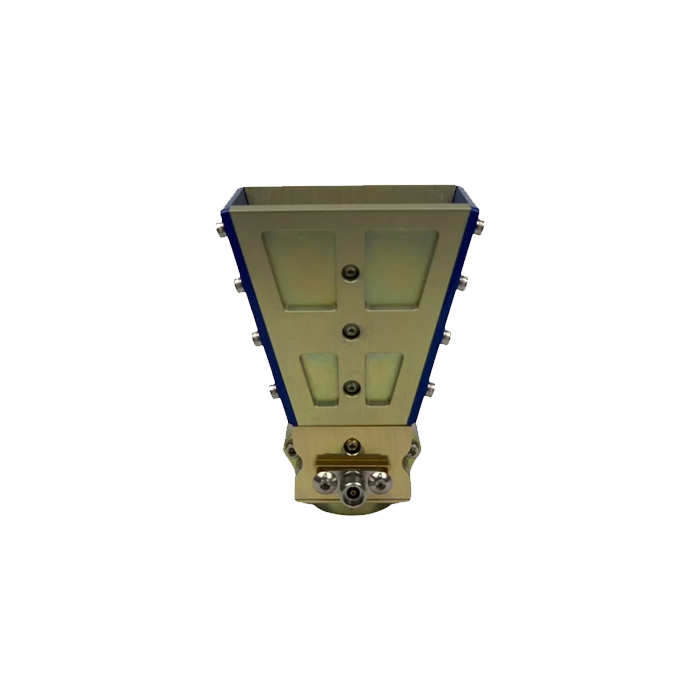

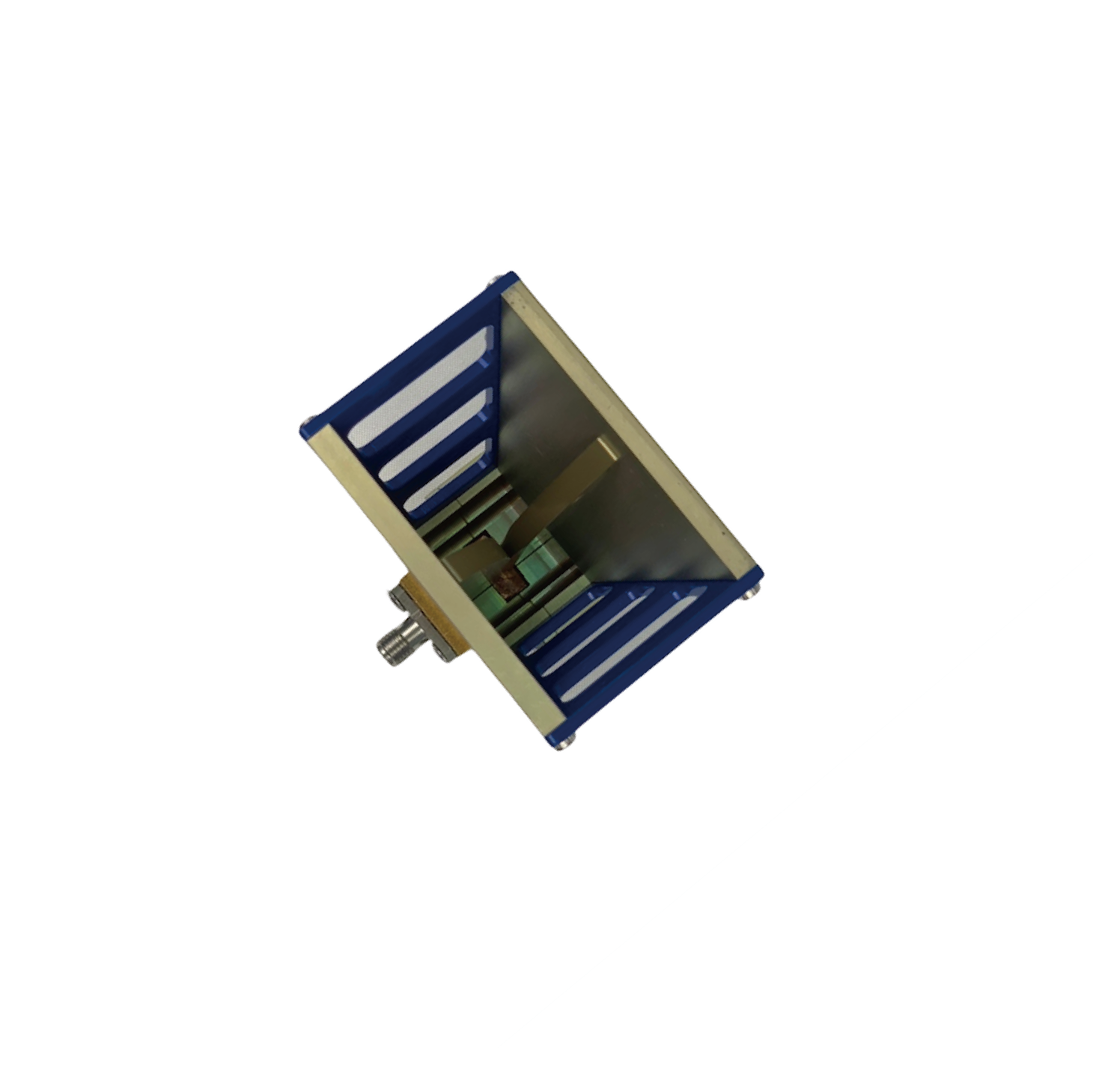

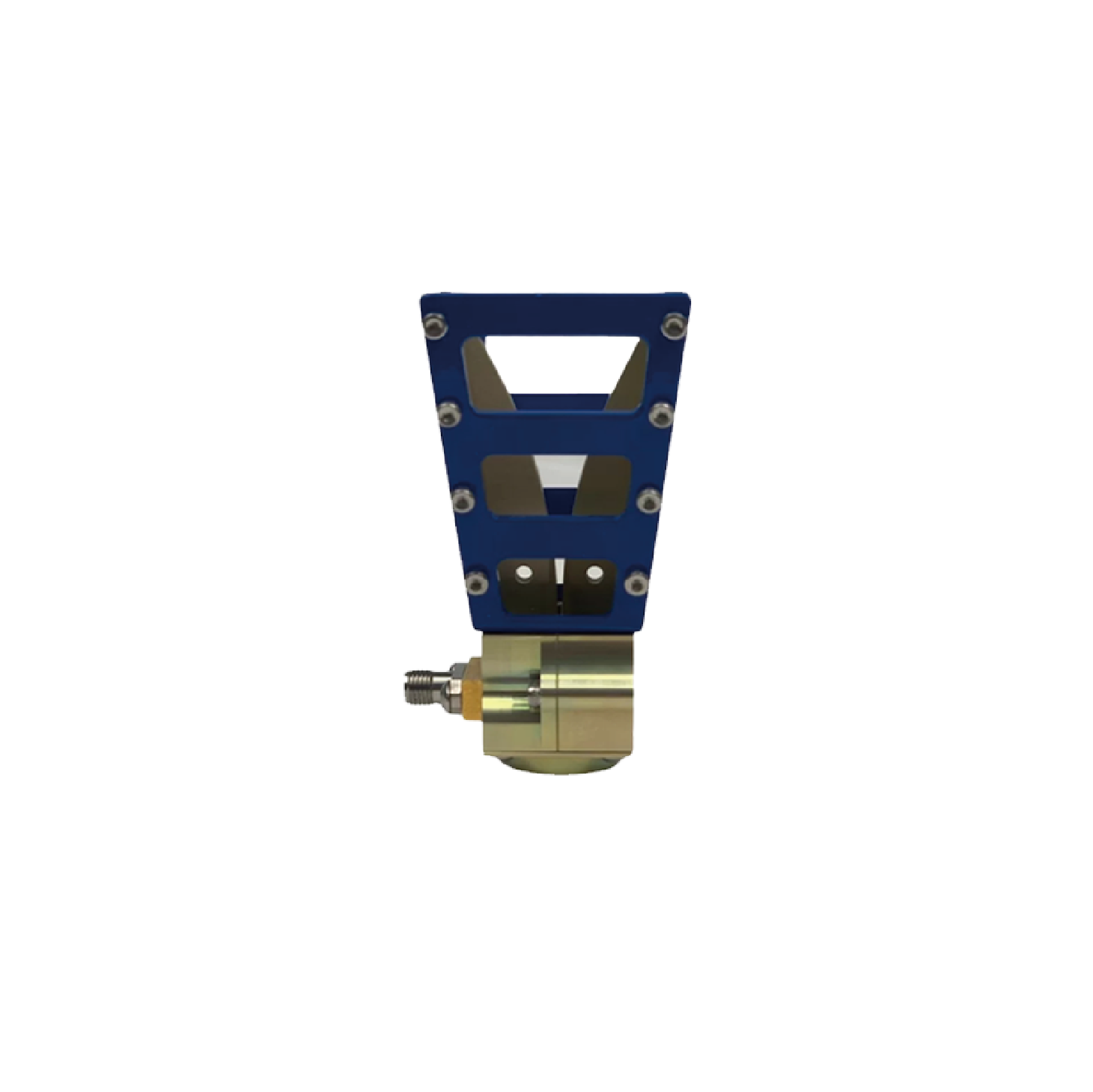

5GHz to 40GHz Double Ridged Broadband Waveguide Horn 2.92mm-Female Antenna
Millimeter-Wave Precision | 2.92mm Female (K) | Model: HA-0540GB-KF
The HA-0540GB-KF is a high-frequency Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the millimeter-wave frequency band of 5 GHz to 40 GHz, it provides directional gain from 1 to 15 dBi with an average VSWR of 2.5:1. Constructed from precision CNC machined 6061 aluminum alloy with integrated DC short lightning protection, it weighs approximately 92.3 g and has an envelope measuring 104 x 55 x 43 mm. Equipped with a stainless steel precision 2.92mm Female (K-type) coaxial connector and an L-type aluminum mounting bracket, it handles up to 25W RF power, offering an industry-standard solution for 5G FR2 development, satellite communications, laboratory microwave measurements, and broadband EMC/EMI testing.
Technical Specifications
| Frequency Range | 5 - 40 GHz |
| Antenna Type | Double Ridged Broadband Waveguide Horn |
| Nominal Gain | 1 to 15 dBi |
| Antenna Factor | 40 - 51 dB/m |
| V.S.W.R | 2.5:1 (Avg) |
| Radiation & Polarization | Directional | Vertical or Horizontal |
| Maximum Power Handling | 25 Watts |
| Beamwidth (-3dB) | Hor. 38° | Ver. 44° (Avg: 37.69° / 43.65°) |
| Front-to-Back Ratio (FBR) | 24 dB (Avg: 25.79 dB / 23.43 dB) |
| Impedance & Connector | 50 Ω | 2.92mm Female (K-Type) |
Mechanical & Environmental Data

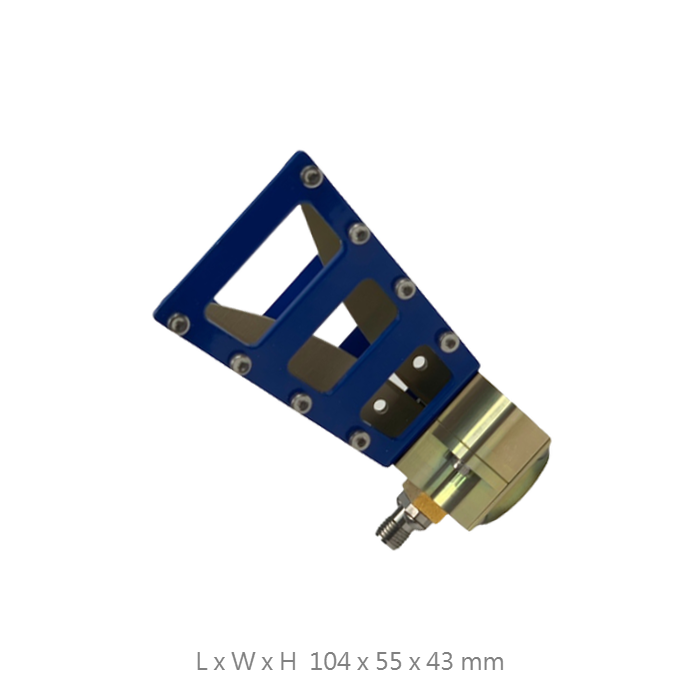

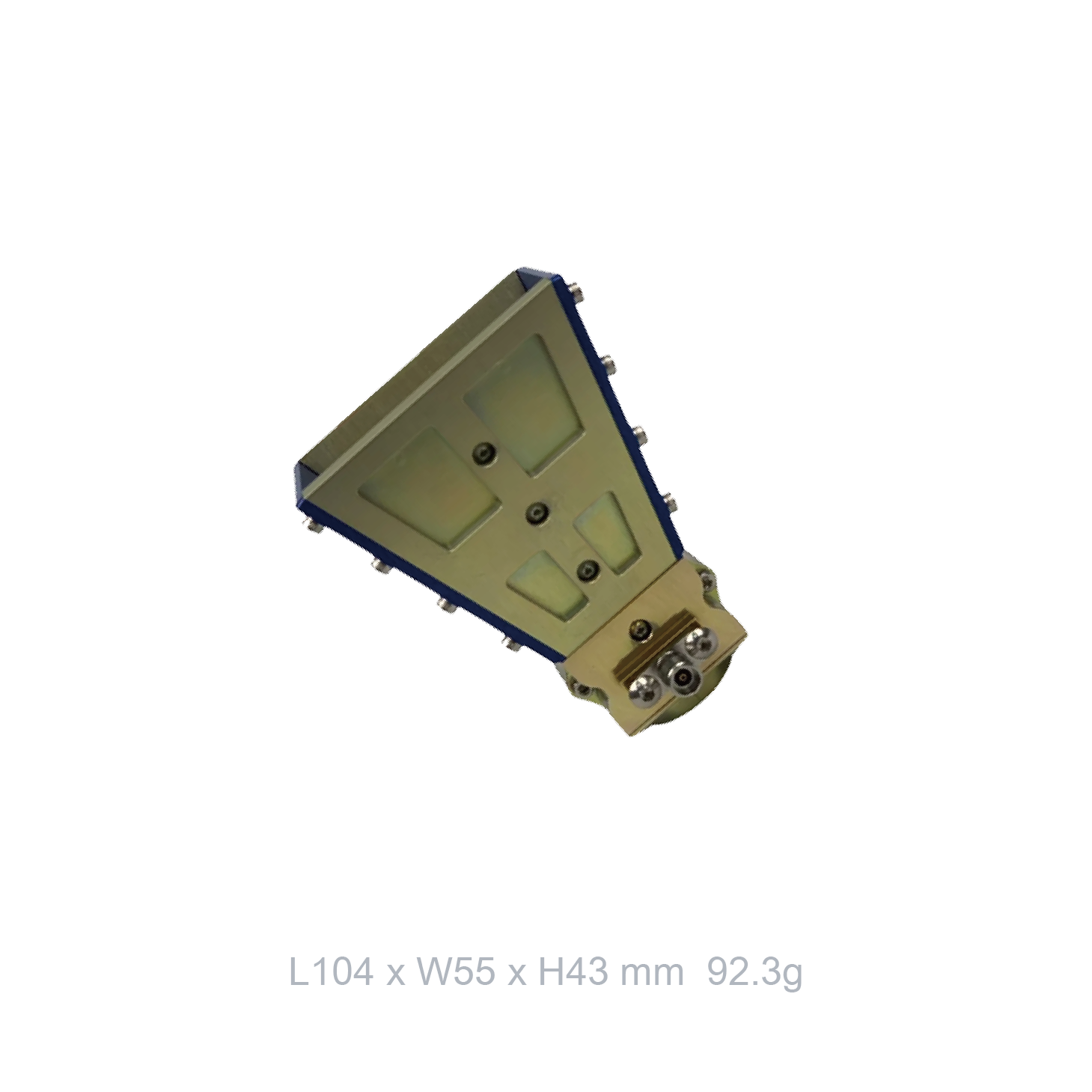

| Dimensions (L x W x H) | 104 x 55 x 43 mm (Aperture: 54.87 x 37.74 mm) |
| Antenna Weight (N.W) | 92.3 g (Estimated ~92.31 g / G.W: 93.1 g) |
| Body Material | 6061 Aluminum Metal Alloy |
| Protection Feature | DC Short Lightning Protection |
| Mounting Interface | L Type Aluminum Bracket (M5 / M2.5 Mounting) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Country of Origin | Taiwan |
Gain Calibration Plot
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Millimeter-Wave Bandwidth
Continuous broad coverage from 5 GHz up to 40 GHz for 5G FR2 and high-frequency microwave research.
Precision 2.92mm Feed
Stainless steel 2.92mm Female (K-Type) connector ensures low reflection and stable multi-GHz matching.
Ultra-Lightweight Body
CNC machined from 6061 aluminum alloy weighing only 92.3 g with an L-type bracket for easy test setup.
Taiwanese Precision
Designed and manufactured in Taiwan to provide dependable laboratory accuracy and repeatability.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
