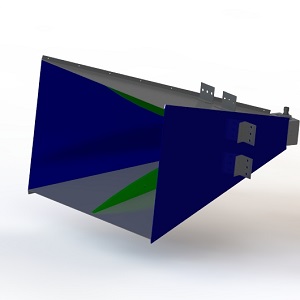

HA-0208G01-NFL High Gain Horn Antenna
2 GHz to 8 GHz | 18 dBi High Gain | Double Ridged Broadband Design
The HA-0208G01-NFL is a high-performance Double Ridged Broadband Horn Antenna designed for applications requiring exceptional directional gain (up to 18 dBi) across the 2 GHz to 8 GHz band. Constructed from durable 6061 Aluminum alloy with a stainless steel N-female connector, it handles up to 250W peak power. This Taiwan-made antenna is ideal for long-range microwave links, high-power EMI testing, and precision radar cross-section measurements.
Technical Specifications
Electrical Specifications

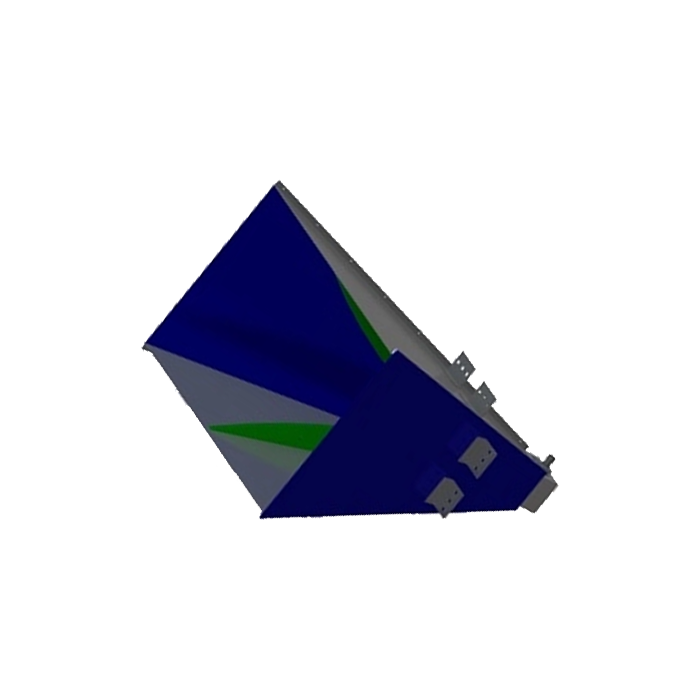

[Image of 2-8GHz high gain double ridged horn antenna radiation pattern]| Frequency Range | 2 GHz - 8 GHz |
| Gain | 14 dBi - 18 dBi |
| V.S.W.R | Low VSWR (Optimized) |
| -3dB Beam-width | 17° - 25° |
| Maximum Power (Peak) | 250 W |
| Polarization | Vertical or Horizontal |
| Impedance | 50 Ohm |
| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications

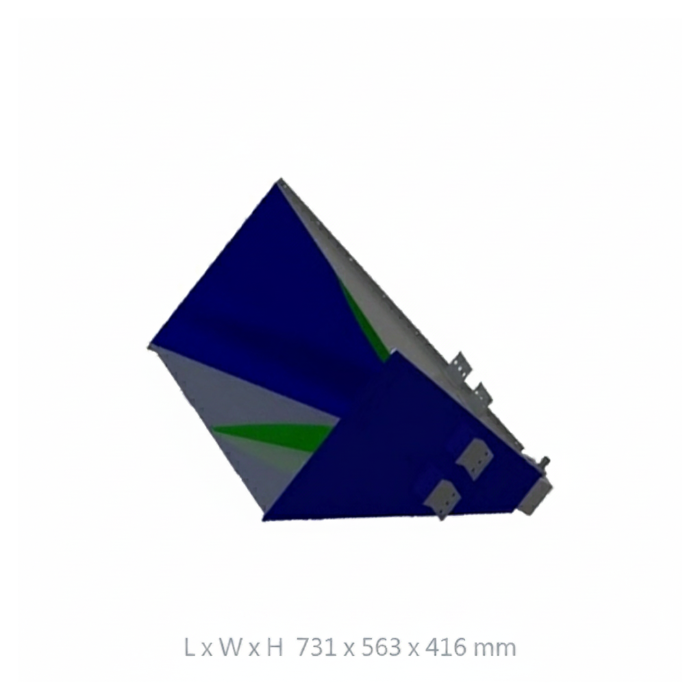

[Image of HA-0208G01-NFL horn antenna mechanical dimensions diagram]| Dimensions (L x W x H) | 731 x 563 x 416 mm |
| Net Weight (N.W.) | 7 kg |
| Material | 6061 Aluminum Alloy |
| Design & Manufacturing | Made in Taiwan |
| Styling | Large Aperture Horn |
Key Features
Extreme High Gain
Delivers up to 18 dBi gain, optimized for long-distance signal transmission and reception.
Delivers up to 18 dBi gain, optimized for long-distance signal transmission and reception.
Narrow Beamwidth
Beamwidth as low as 17° ensures highly directional focus for precision EMI/EMC profiling.
Beamwidth as low as 17° ensures highly directional focus for precision EMI/EMC profiling.
DC Short Lightning Protection
Built-in protection safeguards connected sensitive measurement instrumentation from electrical surges.
Built-in protection safeguards connected sensitive measurement instrumentation from electrical surges.
Rugged Build Quality
Manufactured with 6061 Aluminum alloy for superior mechanical stability in demanding lab environments.
Manufactured with 6061 Aluminum alloy for superior mechanical stability in demanding lab environments.
Uniform Gain Profile
Ensures consistent performance across the entire 2-8GHz band for reliable data collection.
Ensures consistent performance across the entire 2-8GHz band for reliable data collection.
Consolidated Database
Performance is backed by a consolidated performance database for accurate calibration support.
Performance is backed by a consolidated performance database for accurate calibration support.
