400 MHz to 6 GHz Double Ridged Broadband Waveguide Horn Antenna, N-Female Connector
FT-RF Horn Antenna
10 out of
10
-
Description & Specification
400 MHz to 7 GHz Double Ridged Broadband Horn Antenna
Model: HA-04M06GT3-NF | EMC/EMI Broadband | N-Female Connector
The HA-04M06GT3-NF is a high-performance Double Ridged Broadband Horn Antenna professionally engineered for demanding EMC/EMI testing and Signal Security operations across the 400 MHz to 7 GHz spectrum. Constructed with a high-grade 6061 Aluminum Alloy body and a high-durability stainless steel N-Female connector, this antenna ensures uniform gain and exceptional Signal Integrity for professional laboratory environments and tactical Signal Defense sub-systems.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 400 MHz - 7 GHz |
| Antenna Type | Double Ridged Broadband Waveguide Horn |
| V.S.W.R | Optimized Low VSWR Performance |
| Impedance | 50 Ohm |
| Lightning Protection | DC Short |
Mechanical & Physical Specs

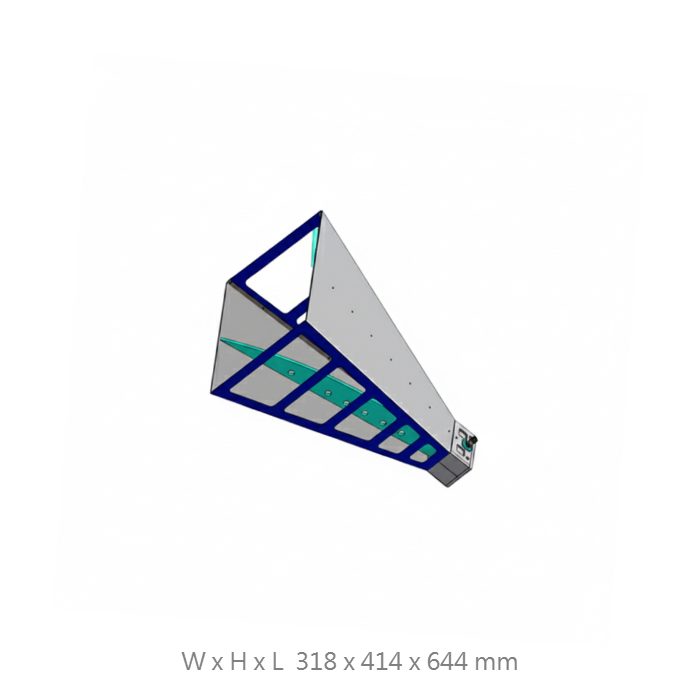

| Dimensions (W x H x L) | 318 x 414 x 644 mm |
| Net Weight | 4047 g |
| Body Material | 6061 Aluminum Alloy |
| Connector Type | N-Female (Stainless Steel) |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
Broadband EMC Domination
Engineered for expansive frequency coverage, reducing the need for multiple antenna swaps during comprehensive EMI/EMC compliance testing.
Precision Signal Integrity
Features optimized internal ridged geometry to ensure minimal return loss and stable radiation patterns across the entire 400MHz-7GHz operating band.
Aerospace-Grade Durability
Constructed from premium 6061 Aluminum Alloy to provide high structural rigidity and corrosion resistance for long-term laboratory and field use.
Signal Security Optimization
Serves as a reliable radiator or receiver for Signal Security operations, enabling precise signal management and interference mitigation.
Request a Professional Quote
Contact our engineering team to obtain individual gain plots, calibration certificates, or customized mounting requirements.
