  • WR51 Waveguide Adapter (WC Series)

WR51 Waveguide Adapter (WC Series)

WC Series • Ku/K-Band (15.0 – 22.0 GHz)

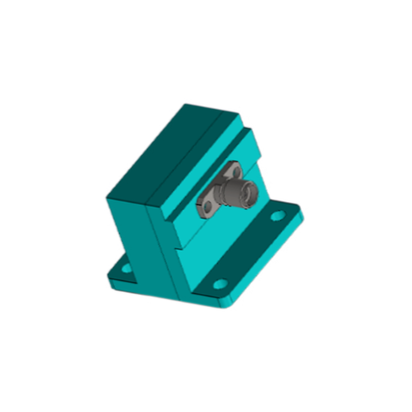

FT-RF WR51 Waveguide to Coaxial Adapter



FT-RF WR51 Waveguide to Coaxial Adapters offer precision impedance matching and minimal insertion loss across Ku/K overlap spectrums (15.0 GHz to 22.0 GHz). These components are essential for converting rectangular waveguide propagation into 50 Ω coaxial lines in satellite payload systems and airborne radar feeds.

FT-RF WR51 Waveguide to Coaxial Adapter

The WR51 series is manufactured from lightweight, high-grade aluminum alloys with passivated surface finishes for environmental protection. Available with precision SMA or N-type connectors and UBR/FBP flanges, these adapters preserve Signal Integrity under continuous operational stress.

🛠️ Engineering & Customization Options

Tailored structural designs and custom launch options:

  • Flange Styles: UBR180, FBP180, or custom alignment.
  • Connector Types: SMA Female or N-Type Female.
  • Ruggedization: Corrosion-resistant passivated finish.
Direct Support: info-tw@ft168.com.tw
Parameter Technical Specifications
Frequency Range 15.0 GHz to 22.0 GHz (Ku/K Band)
Coaxial Interface Precision SMA / N-Type Female (50 Ω Nominal)
VSWR Performance < 1.25 : 1 Typical
Flange Configuration UBR180 / FBP180 Cover Flange
Certifications ISO 9001:2015 / RoHS Compliant
We provide professional ODM, OEM, and R&D services to meet your specific technical requirements.
For further technical details or customized solutions, please contact us for details.
Back to WC Series Main Page
WR51 Waveguide Coaxial Adapter Flange: UBR, operating from 15 GHz to 22 GHz, K-Female connector
WC-51-UBR-KF

WR51 Waveguide Coaxial Adapter Flange: UBR, operating from 15 GHz to 22 GHz, K-Female connector

View Details
Frequency Range: 15.0 - 22.0 GHz
Antenna Type: Waveguide to Coaxial Adapter
Nominal Gain: 280 Watts (CW)
Waveguide Size: WR-51 (UBR / 2.92mm K-F)
Stock: 0
