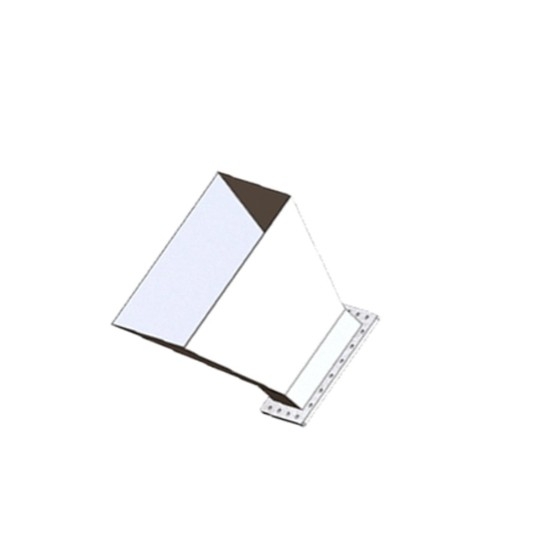

WR1150 Waveguide Horn

FT-RF WR1150 waveguide horns are low-loss RF components capable of handling high power while maintaining high isolation.
WR1150 waveguide horns can be used in system designs for their high power handling capabilities, antenna feed networks for low loss and phase accuracy, and test labs.

The waveguide component and square cover flange are made of quality aluminum and lightweight but sturdy construction. WR-1150 waveguide horns are available in a variety of designs, including E-Plane Horn antennas, H-plane Horn antennas, and radome designs.

WR1150 waveguide horns are available in frequency ranges ranging from 640 MHz to 980 MHz, with 10 dbi, 15 dbi, and 20 dbi. Details of waveguide component specifications design can be found on the specific product page's WR90 waveguide horns mechanical download.

  • Our horn antenna facilities are ISO 9001:2015 certified.
  • We are now offering ODM, OEM, and RD services.
  • Please contact us for more information via: info-tw@ft168.com.tw


  • Waveguide: WR-1150
  • Frequency: 640 to 980MHz
  • Gain: 10
  • Max Power(W): 3000W
