WR-1150 Standard Gain Horn Antenna
High-Power UHF Radiator | Standard UDR Flange Layout | 640 MHz – 980 MHz
The WI-1150-UDR-10 is an industrial-grade, large-scale microwave Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for high-power directional transmission and calibration routines across the 640 MHz to 980 MHz low-frequency UHF spectrum. Meticulously optimized to manage extreme thermal and electromechanical strain, this premium radiator delivers a flat nominal directive gain profile of 10 dBi paired with exceptional phase center stability. Precision manufactured from high-grade structural aluminum alloy in Taiwan to exceed stringent measurement certifications, the massive horn flare architecture establishes a highly symmetric radiation footprint, providing uniform -3dB beamwidths of 54° in both the H-plane and E-plane matrices. Equipped with a standardized large-scale UDR Style waveguide flange layout, this robust 7.2 kg instrument safely manages continuous wave power loads up to 3000 Watts (CW) while ensuring low return loss parameters. This optimized structural geometry makes it the definitive choice for high-intensity EMI/EMC compliance sweeps, anechoic antenna measurement ranges, professional communication networks, and mission-critical Signal Defense high-field infrastructure arrays.
Electrical & RF Performance
| Frequency Range | 640 MHz to 980 MHz (Low-Frequency UHF Continuous Support) |
| Standard Nominal Gain | 10 dBi |
| Maximum Power Handling | 3000 Watts (CW Continuous Wave) |
| -3dB Beamwidth (H-Plane) | 54° |
| -3dB Beamwidth (E-Plane) | 54° (Symmetric Radiation Aperture Layout) |
| Nominal System Impedance | 50 Ohms (Coaxial Launch Mating Dependent) |
Mechanical & Physical Specs
| Waveguide Size Standard | EIA WR-1150 (R8 / WG4 Layout Structure) |
| Waveguide Flange Designation | UDR Style Flange Layout Interface Standard |

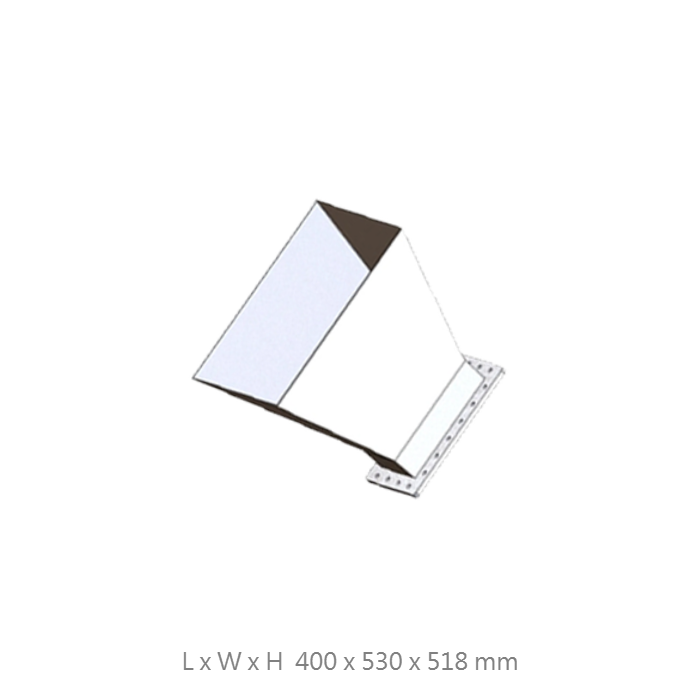

| Physical Dimensions (L x W x H) | 400 x 530 x 518 mm |
| Net Weight | 7200 g / 7.2 kg (Heavy-Duty Large Scale Geometry) |
| Body Material Profile | High-Grade Structural Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
3000W High-Power Domination
Robustly engineered structural core effortlessly manages up to 3000 Watts of continuous wave (CW) power loads without experiencing thermal variance, providing an ultra-stable radiator for high-intensity laboratory testing and signal dominance operations.
Low-Frequency UHF Coverage
Precision-optimized continuously for the 640–980 MHz band, supporting advanced signal management, interference mitigation, and directional monitoring in professional communication networks.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, providing highly accurate internal flare alignments, exceptional surface coplanarity, and traceable reference criteria.
Superior Signal Integrity
Large-scale precision aluminum block build completely avoids destructive mode variations, ensuring exceptionally low return loss and a highly linear directive gain profile across the entire operating frequency spectrum.
Standardized UDR Interface Layout
Equipped with a certified rectangular UDR waveguide flange format, securing immediate plug-and-play matching, secure mechanical coupling, and minimal signal boundary leakage paths in mission-critical structures.
Get a Quote / Custom RF Solutions
Contact our technical engineering division today to request specialized gain calibration data sheets, unique heavy-duty multi-axis adapter plates, alternative coaxial launch transitions, or specialized outdoor structural interfaces.
