HS SERIES • SUB-1 GHZ & VHF (0.32 GHz – 1.15 GHz)

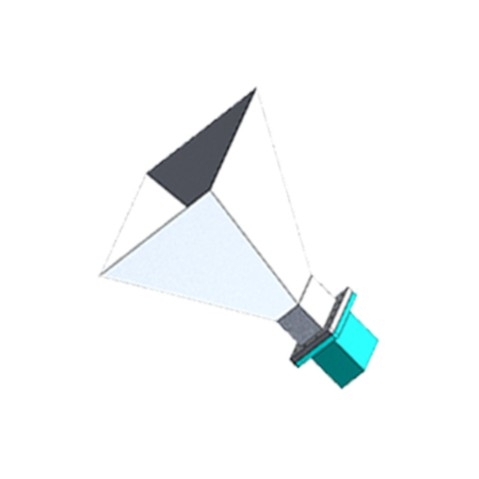

Sub-1 GHz & VHF Large Standard Gain Horns
Heavy-duty, large-scale Sub-1 GHz & VHF Standard Gain Horn Antennas (HS Series) covering 0.32 GHz to 1.15 GHz (WR770 through WR2300). Assembled with high-power Waveguide-to-Coaxial Adapter feeds for low-frequency EMC chamber gain calibration and immunity reference standards.
Constructed with heavy structural aluminum ribbing to maintain high mechanical rigidity for physical aperture dimensions exceeding 1 meter.
*Custom heavy turntables, crane lifting eyes, and rigging mounts required.
⚡ Core Engineering Highlights
0.32 – 1.15 GHz Band
Covers Sub-GHz IoT, UHF TV broadcast, and low-frequency defense radar bands.
Large Scale Design
Structural aluminum framework engineered for large physical dimensions.
High Power CW
Sustains high continuous CW transmitter power for radiated immunity testing.
Rigging Integration
Equipped with specialized lifting eyes and heavy positioning plates.
Covered Waveguide Models & Frequency Chips:
| Waveguide Standard | Frequency Range | Target Applications | Model Link |
|---|---|---|---|
| WR770 | 0.77 GHz – 1.15 GHz | Sub-1GHz IoT, UHF Radar, Defense EMC Calibration | |
| WR975 | 0.75 GHz – 1.12 GHz | UHF Broadcast Calibration, Sub-GHz Test Bench | |
| WR1150 | 0.64 GHz – 0.96 GHz | L-Band Spectrum Calibration, Defense Radar Arrays | |
| WR1500, WR1800, WR2100, WR2300 | 0.32 GHz – 0.74 GHz | UHF Broadcast Calibration, High Power Immunity Chamber |
🛠️ Calibration & Customization Options
- Traceable Far-Field Gain Calibration Certificates
- Custom Heavy Turntable Positioning Adapter Plates
- Crane Lifting Attachments & Rigging Hardware
📐 Recommended Testing Accessories
HS-2300-UDR-10A-716
WR2300̣(320 to 490MHz) 10dBi Standard Gain Waveguide Horn/Flange:UDR 7/16 Female Antenna
View Details
FT-RF
| Frequency Range: | 320 - 490 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-2300 Horn |
| Stock: | 0 |
| 2026/06/24 | |
FT-RF
| Frequency Range: | 750 - 1150 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi (1800W) |
| Waveguide Size: | WR-975 (UHF/L-Band) |
| Stock: | 0 |
| 2026/06/24 | |
FT-RF
| Frequency Range: | 750 - 1150 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-975 (UHF/L-Band) |
| Stock: | 0 |
| 2026/06/24 | |
FT-RF
| Frequency Range: | 970 - 1450 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi (2000W) |
| Waveguide Size: | WR-770 (L-Band) |
| Stock: | 0 |
| 2026/06/24 | |
WI-975-UDR-10
WR975 750MHz to 1120MHz 10 dbi Standard Gain Waveguide Input Horn Antenna, UDR Flange
View Details
FT-RF
| Frequency Range: | 750 - 1150 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-975 (UDR / 3000W) |
| Stock: | 4 |
| 2026/06/09 | |
NEW
HS-1500-UDR-10A-716
WR1500 490MHz to 750MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, 7/16-Female Connector
View Details
FT-RF
| Frequency Range: | 490 - 750 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-1500 (UDR / 3000W) |
| Stock: | 0 |
| 2026/08/21 | |
NEW
HS-1800-UDR-10A-716
WR1800 410 MHz to 620 MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, 7/16-Female Connector
View Details
FT-RF
| Frequency Range: | 410 - 620 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-1800 (UDR / 3000W) |
| Stock: | 0 |
| 2026/08/21 | |
NEW
HS-2300-UDR-10A-716F
WR2300 320 MHz to 490 MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, 7/16-Female Connector
View Details
FT-RF
| Frequency Range: | 320 - 490 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | 7/16-Female DIN (3000W) |
| Stock: | 0 |
| 2026/08/21 | |
HS-2300-UDR-10A-NF
WR2300 320 MHz to 490 MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, N-Female Connector
View Details
FT-RF
| Frequency Range: | 320 - 490 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR-2300 |
| Stock: | 0 |
| 2026/06/24 | |
HS-2100-UDR-10A-716
WR2100 350MHz to 530MHz 10dbi Standard Gain Waveguide Horn Flange Type: UDR, N-Female connector
View Details
FT-RF
| Frequency Range: | 350 - 530 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR-2100 |
| Stock: | 0 |
| 2026/06/24 | |
HS-1800-UDR-10A-NF
WR1800 410 MHz to 620 MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, N-Female Connector
View Details
FT-RF
| Frequency Range: | 410 - 620 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR1800 |
| Stock: | 0 |
| 2026/06/24 | |
HS-1500-UDR-10A-NF
WR1500 490MHz to 750MHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, N-Female Connector
View Details
FT-RF
| Frequency Range: | 490 - 750 MHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR-1500 |
| Stock: | 0 |
| 2026/06/24 | |
