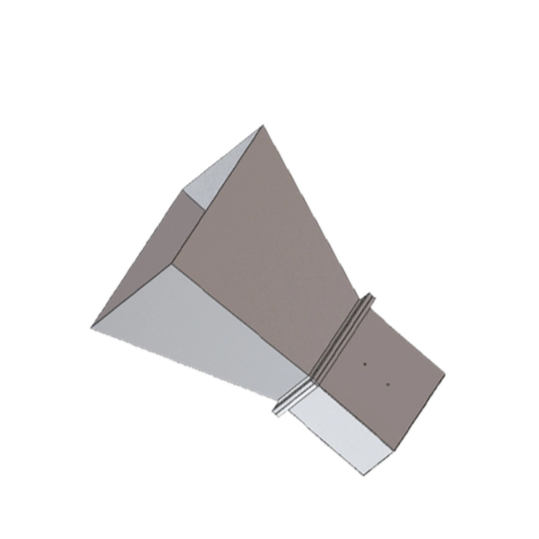

320 MHz to 490 MHz WR-2300 Standard Gain Horn Antenna
Model: HS-2300-UDR-10A-716F | 10 dBi Gain | 3000W High Power
The HS-2300-UDR-10A-716F is a large-scale WR-2300 Waveguide Horn Antenna professionally engineered for extreme high-power UHF applications. Delivering a precise 10 dBi gain across the 320 MHz to 490 MHz spectrum, it handles massive continuous power loads up to 3000 Watts (CW). Constructured from high-grade aluminum with a rugged 7/16-Female (DIN Type) connector, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense operations and high-intensity laboratory EMI/EMC testing.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 320 - 490 MHz (UHF Band) |
| Waveguide Standard | WR-2300 / WG0.0 / R4 |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H/E Plane) | 54° / 54° |
| Maximum Power Handling | 3000 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Material

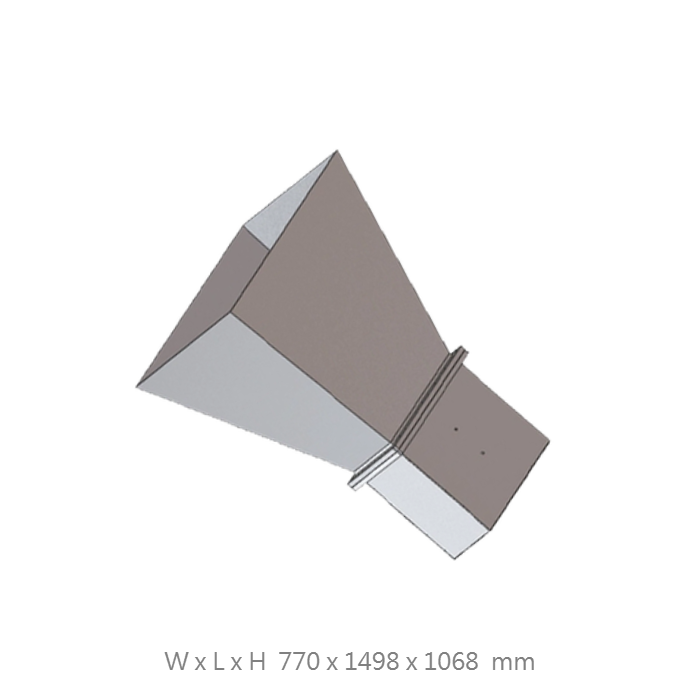

| Dimensions (W x H x L) | 770 x 1068 x 1498 mm |
| Net Weight | 54.0 kg (Industrial Scale) |
| Waveguide Flange | UDR Compatible |
| Body Material | High-Grade Aerospace Aluminum |
| Connector Interface | 7/16-Female (DIN Type) |
| Design & Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
3000W High-Power Capacity
Engineered to handle extreme continuous power levels, providing a reliable radiator for high-intensity Signal Security and immunity testing.
Industrial Scale Precision
Large-scale WR-2300 architecture ensures superior power distribution and stable radiation patterns for long-range UHF measurements.
Unwavering Signal Integrity
Low VSWR design and 7/16 DIN interface prevent signal distortion and thermal drift during mission-critical Signal Defense deployments.
Consolidated Performance Data
Supported by comprehensive performance databases for accurate system calibration and repeatable, traceable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, mechanical structural analysis, or specialized heavy-duty mounting hardware.
