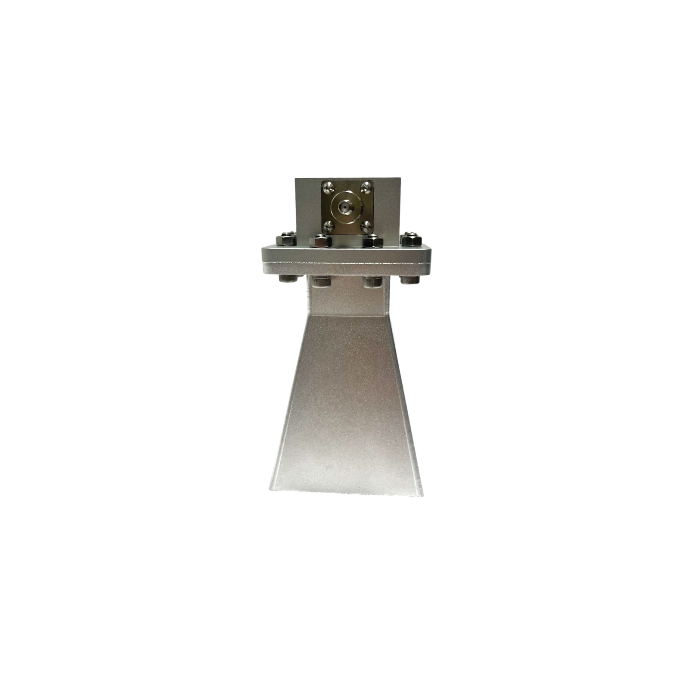

HS-159-UDR-10A-SF Compact Horn Antenna
C-Band Monitoring | 54° Symmetrical Beam | Professional RF Grade
The HS-159-UDR-10A-SF is a professional high-performance C-band horn antenna engineered for the 4.9 GHz to 7.05 GHz frequency range. Featuring a specialized 54° wide symmetrical radiation profile, this antenna is designed for space-constrained signal monitoring and precision RF measurement. Its ultra-compact engineering, measuring only 172mm in length, makes it an ideal solution for integrated measurement systems and professional laboratory test setups.
Electrical & RF Performance
| Frequency Range | 4.9 - 7.05 GHz |
| Gain (Typical) | 10 dBi |
| Peak Power (CW) | 250 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E) | 54° / 54° |
| Connector Interface | SMA-Female (Stainless Steel SUS-303) |
| Waveguide / Flange | WR-159 / UDR |
Mechanical & Physical

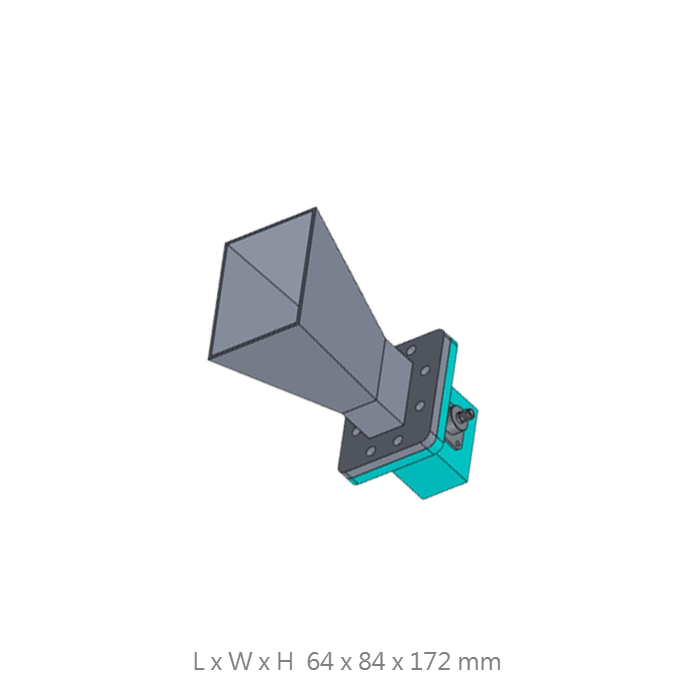

| Dimensions | 64 x 84 x 172 mm |

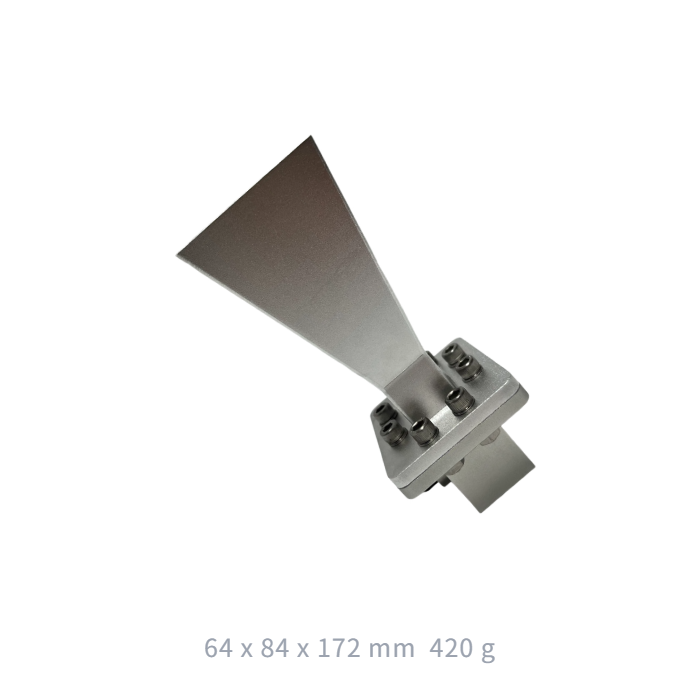

| Weight | 420 g |

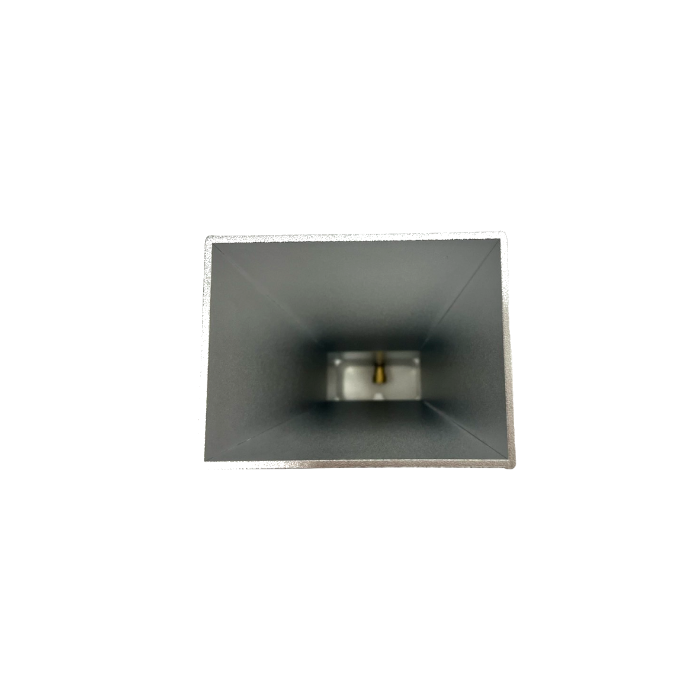

54° Symmetrical Wide Coverage
Optimized radiation profile ensures consistent signal illumination over a wide field, perfect for broad spectrum monitoring and laboratory test setups.

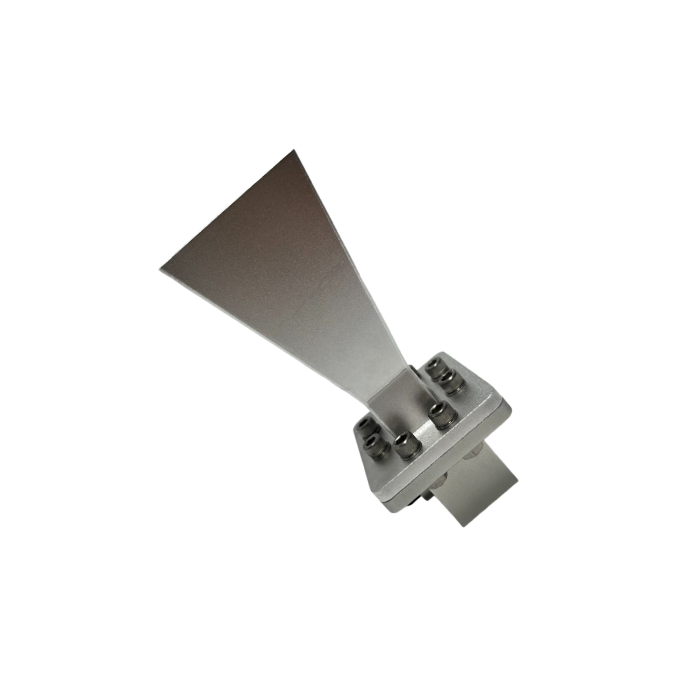

Ultra-Compact Engineering
Measuring only 172mm in length, this antenna provides exceptional 10 dBi performance in a small footprint, ideal for integrated measurement systems.

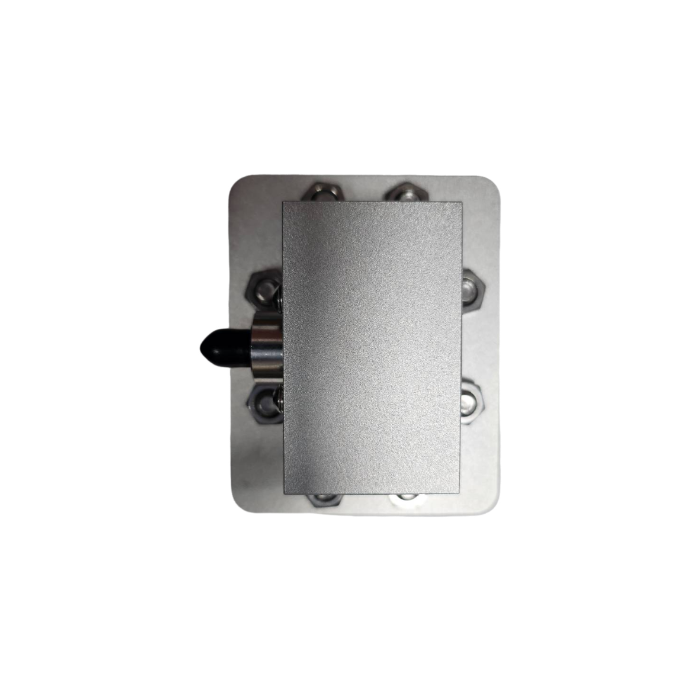

Superior SUS-303 Interface

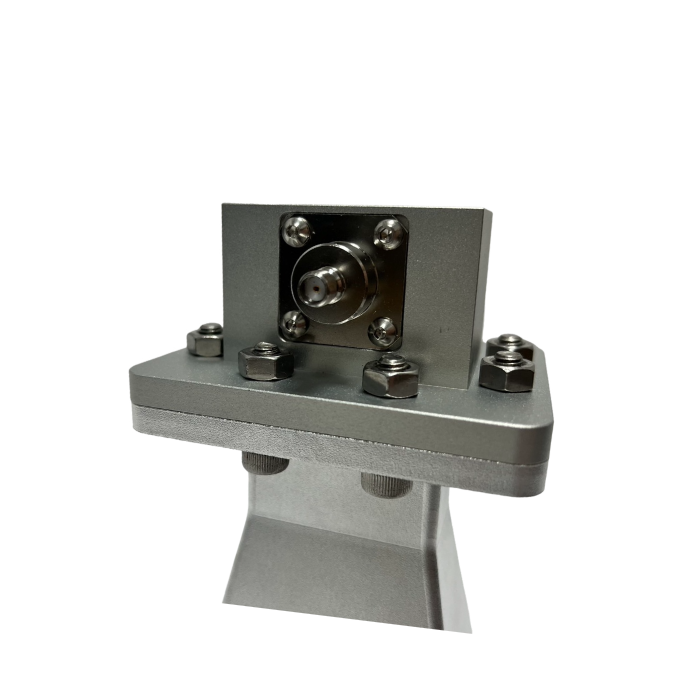

Premium stainless steel SMA connector ensures maximum mechanical cycle life and anti-corrosion protection in both tactical and lab environments.
Contact FT-RF Engineering Division
Contact our engineering team for customized mounting solutions, specific calibration certificates, or technical support.
