3.95GHz to 5.85GHz Standard Gain Waveguide Horn Antenna
Broadband Precision | 20 dBi Nominal Gain | Model: WI-187-UDR-20
The WI-187-UDR-20 is a high-precision Standard Gain Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the continuous 3.95GHz to 5.85GHz frequency band, it delivers a nominal directional gain of 20 dBi with low VSWR of 1.25:1. Featuring a standard WR-187 waveguide interface with UDR Flange and fabricated from premium quality aluminum, this antenna handles high RF power levels up to 1KW. It serves as an indispensable reference standard for microwave antenna pattern measurements, chamber calibration, radar surveillance, and EMC/EMI laboratory compliance testing.
Technical Specifications
| Frequency Range | 3.95 GHz - 5.85 GHz |
| Antenna Type | Standard Gain Horn Antenna |
| Nominal Gain | 20 dBi |
| VSWR | 1.25 : 1 |
| 3dB Beamwidth (E / H Plane) | 19 deg / 19 deg |
| Power Handling | 1000W (1KW) |
| Waveguide Size | WR-187 (WG12 / R48) |
Mechanical & Physical Data

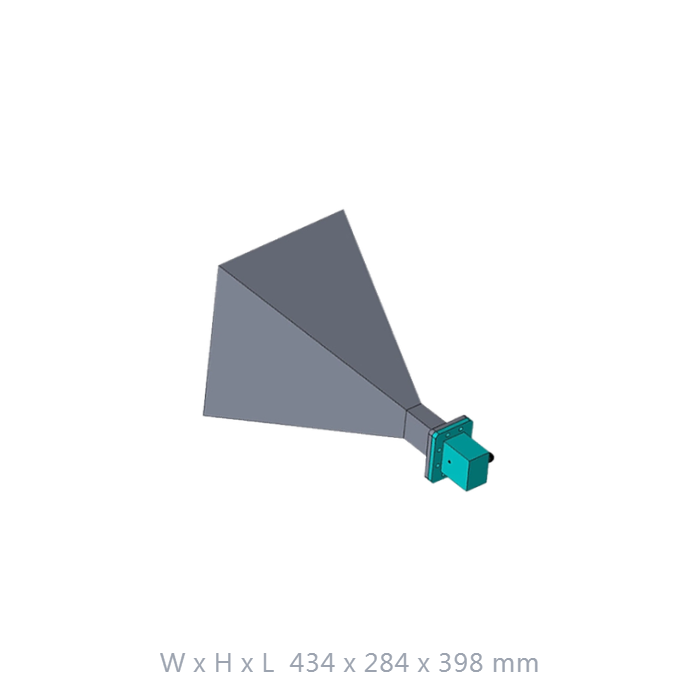

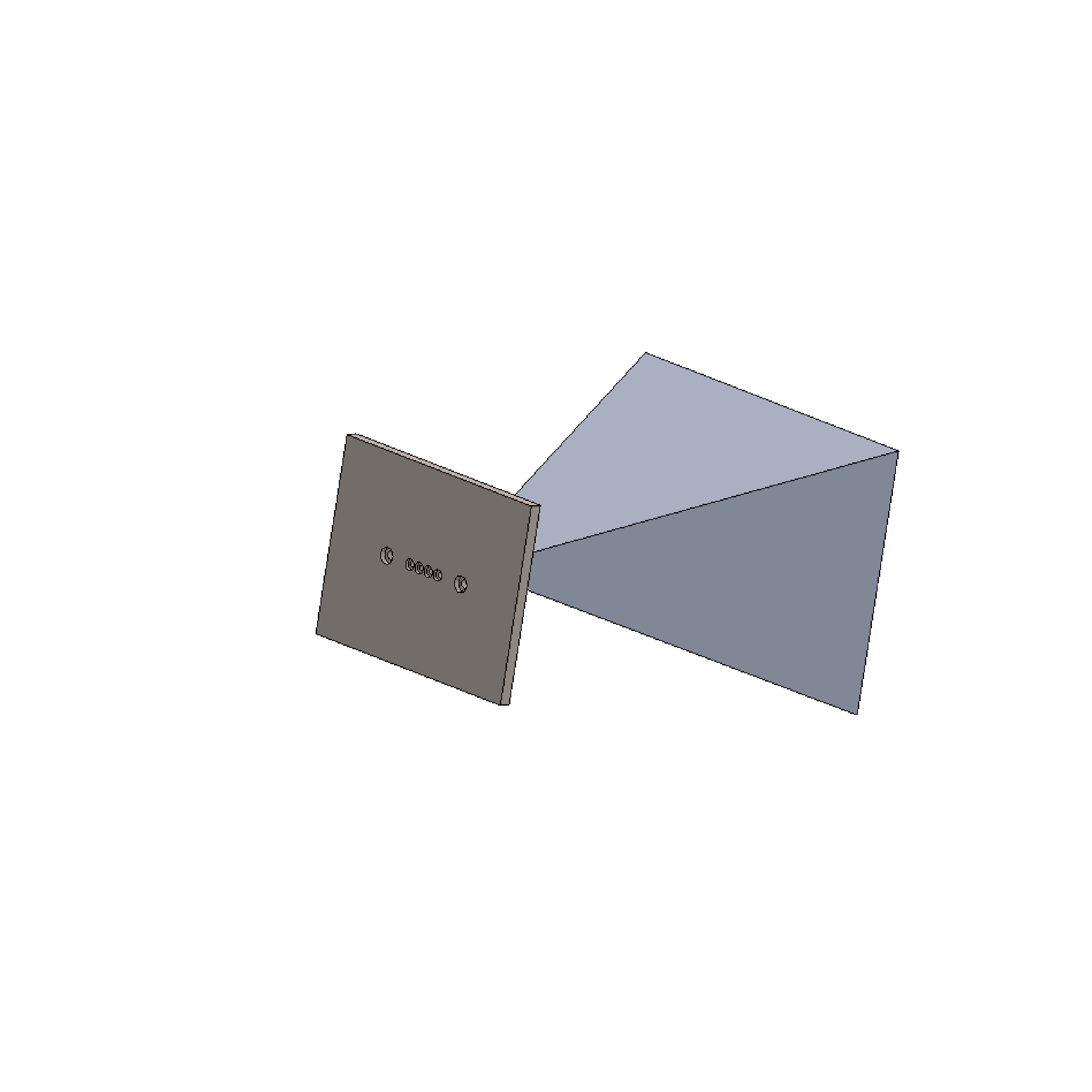

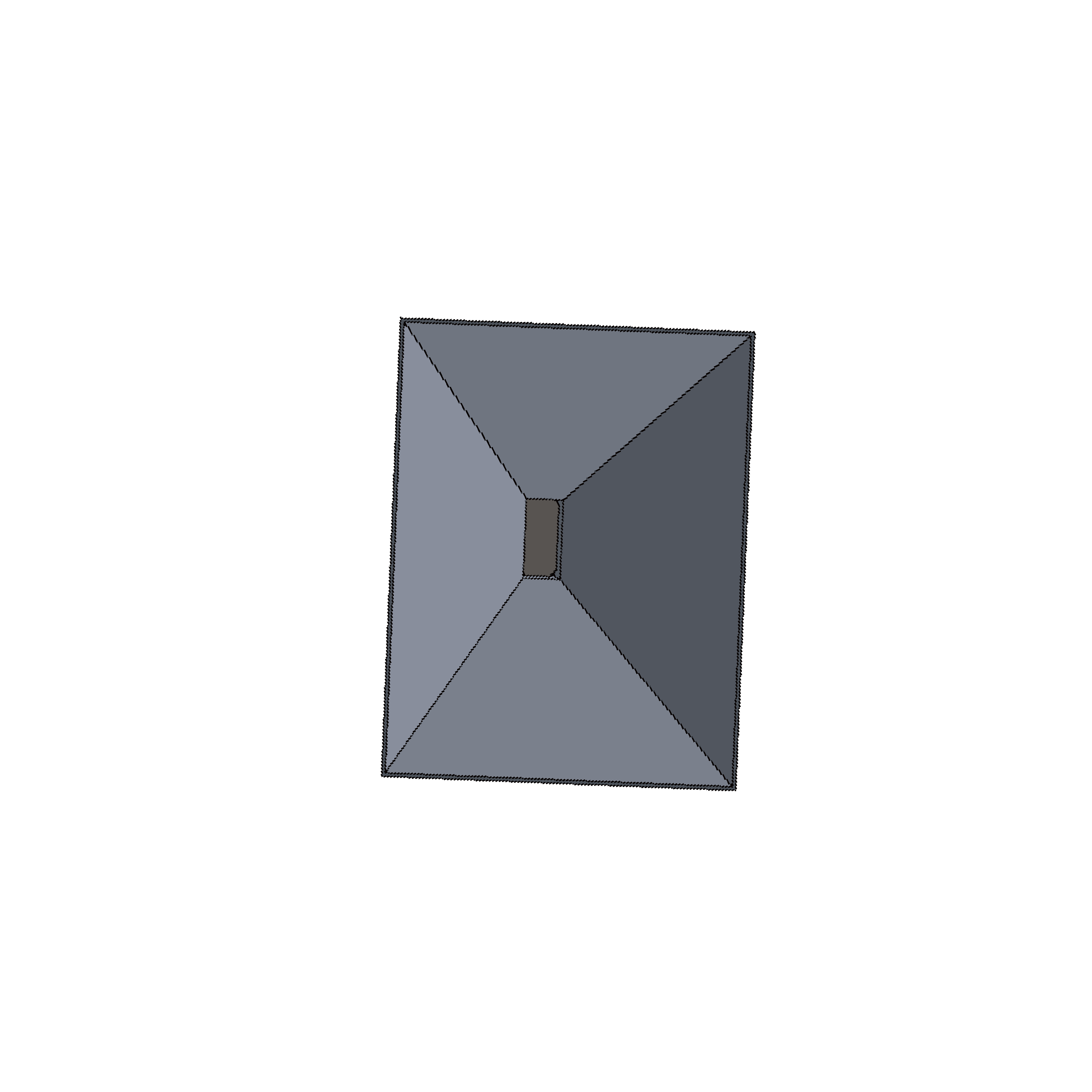

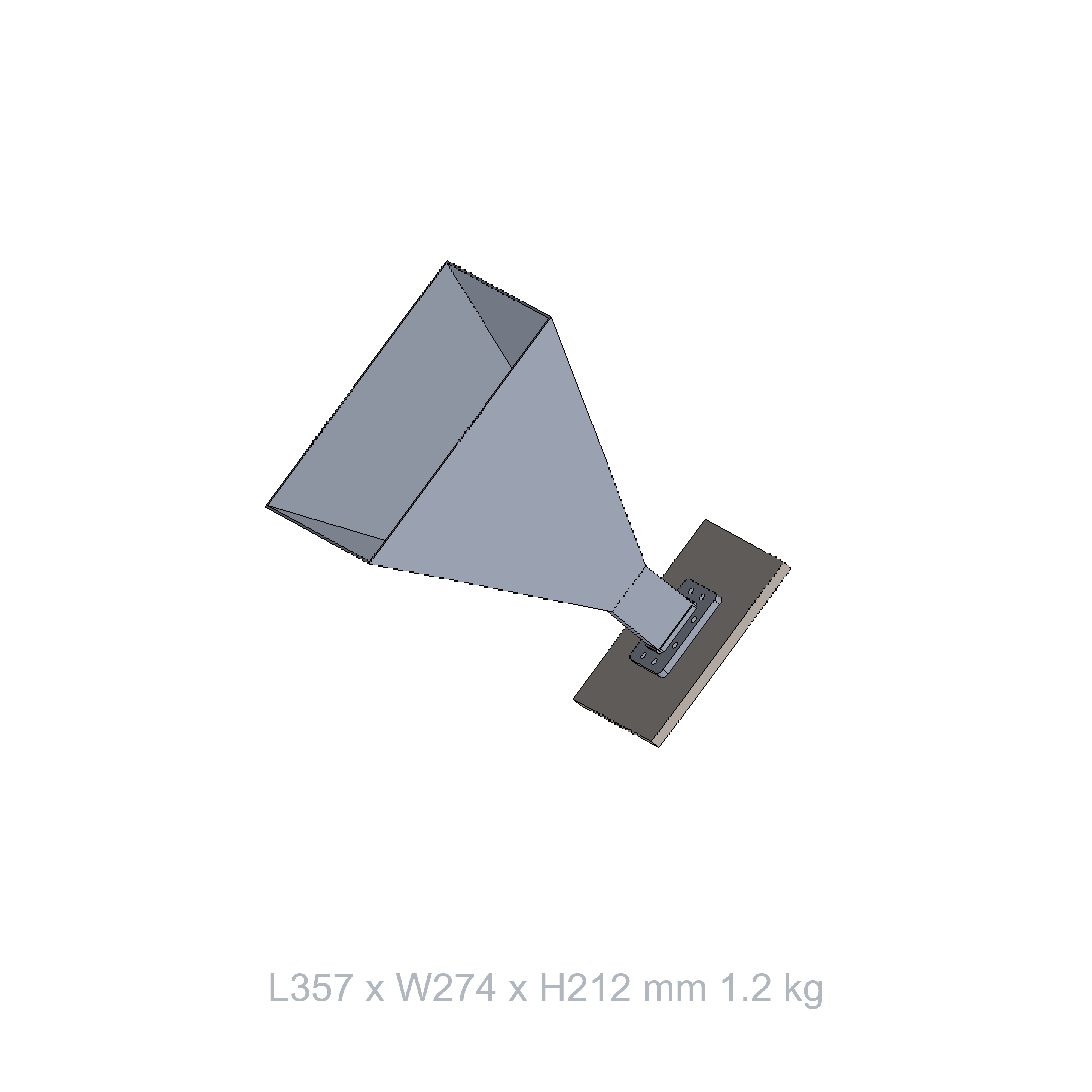

| Dimensions (L x W x H) | 357 x 274 x 212 mm |
| Weight | 1.2 kg (Net: 1037.15 g) |
| Flange Interface | UDR Flange (WF-UDR-187) |
| Body Material | Precision Machined Aluminium |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Standard 20 dBi Gain
Delivers flat, calibrated 20 dBi gain across 3.95GHz to 5.85GHz, serving as a reliable microwave reference standard.
High Power Rating
Handles up to 1000W (1KW) CW RF power capacity for demanding high-field immunity testing and microwave link simulation.
Precision WR187 Flange
Engineered with standard WR-187 (UDR) flange interface ensuring minimal reflection loss and tight waveguide seal.
Taiwanese Precision
Precision CNC machined from high-grade aluminium alloy, compliant with RoHS, WEEE, CE, and FCC standards.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
