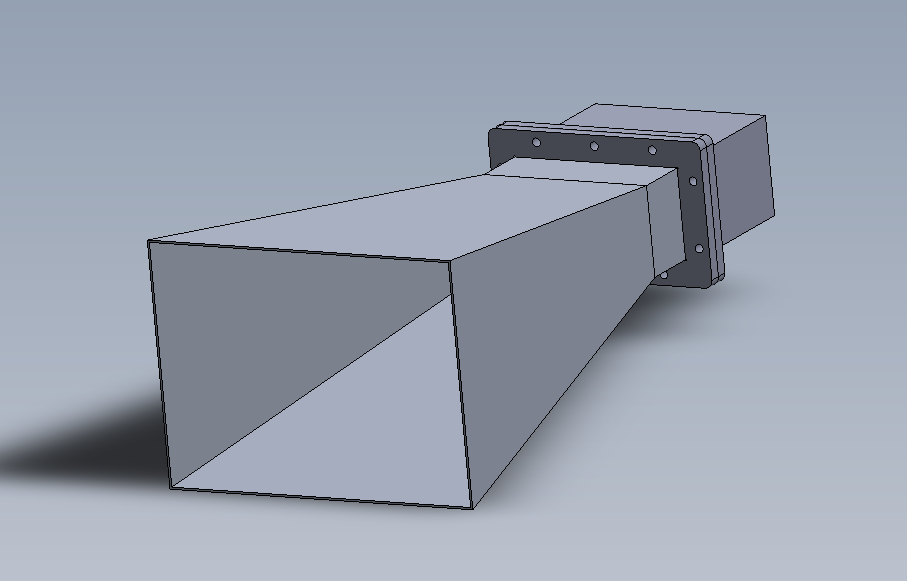

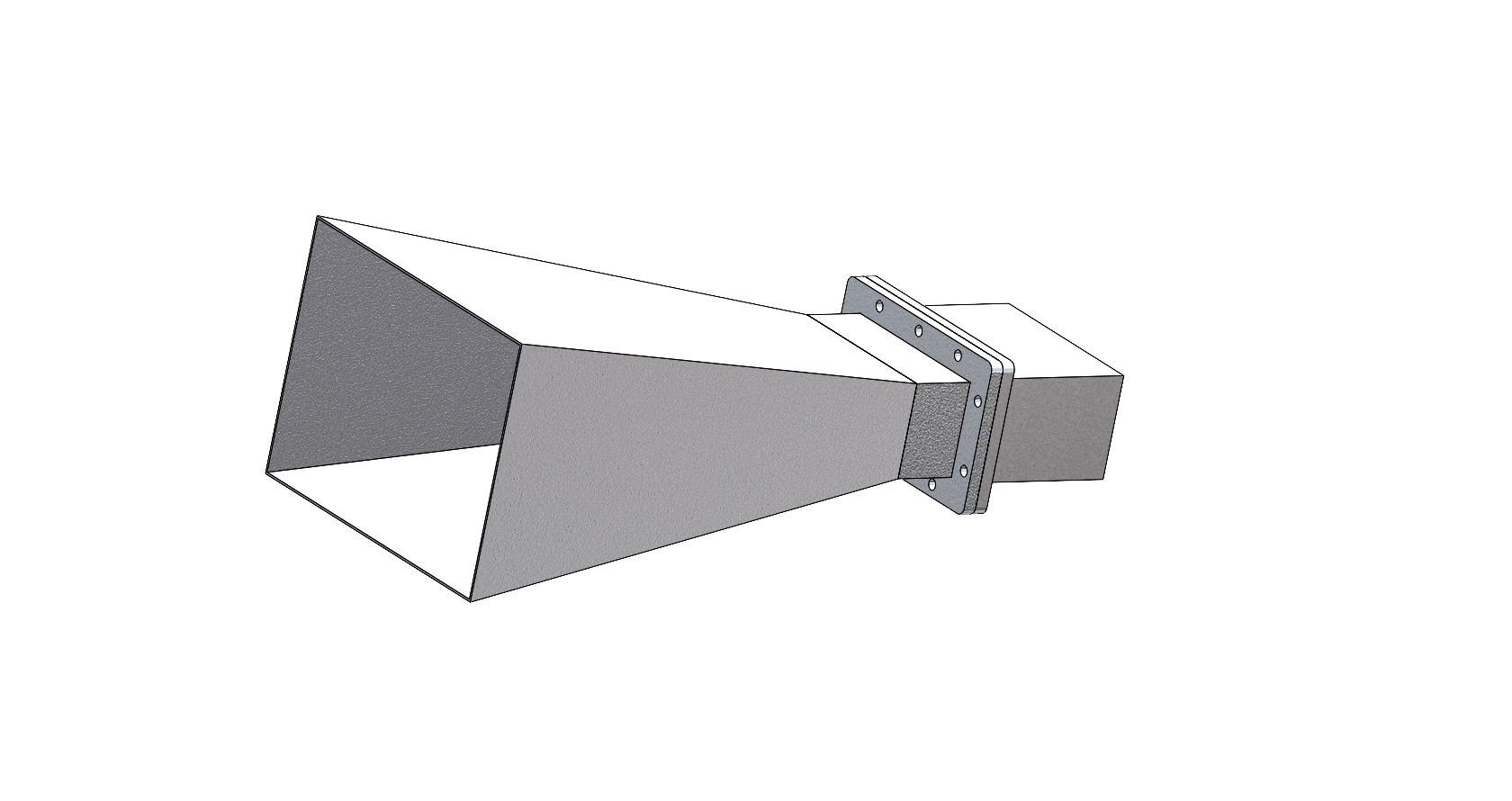

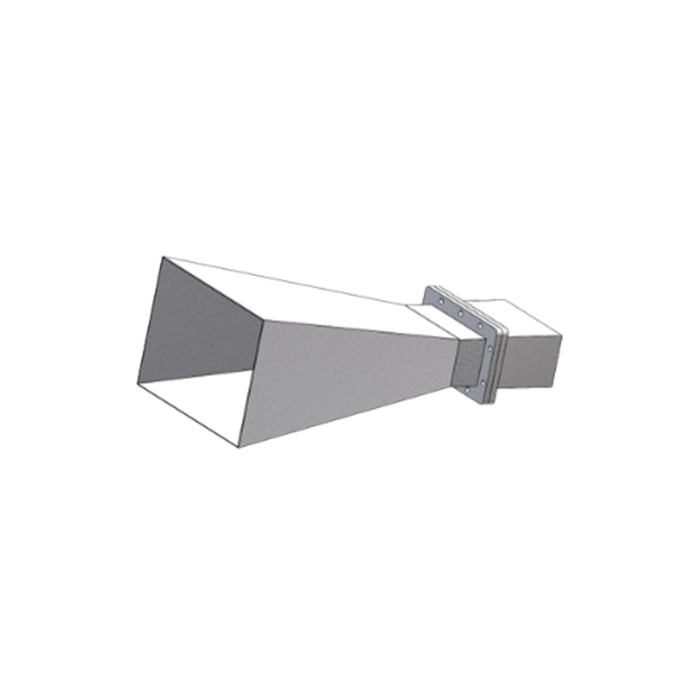

HS-650-UDR-10-NF Standard Gain Horn Antenna
1.14 GHz to 1.73 GHz | 10 dBi Gain | WR-650 Waveguide
The HS-650-UDR-10-NF is a high-performance Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the 1.14 GHz to 1.73 GHz frequency range, it provides a stable directional gain of 10 dBi. Crafted in Taiwan, this antenna utilizes a WR-650 waveguide styling with a UG417A/U flange and features a premium N-Female connector to ensure stable signal integrity. It is an ideal tool for GPS jamming simulations, EMI/EMC testing, and precision antenna gain measurements.
Technical Specifications
Electrical Specifications
| Frequency Range | 1.14 GHz - 1.73 GHz |
| Gain | 10 dBi |
| V.S.W.R | 1.25 : 1 |
| -3dB Beam-width (H-plane) | 32° |
| -3dB Beam-width (E-plane) | 33° |
| Maximum Power Handling | 1000 W |
| Connector | N-Female |
Mechanical Specifications

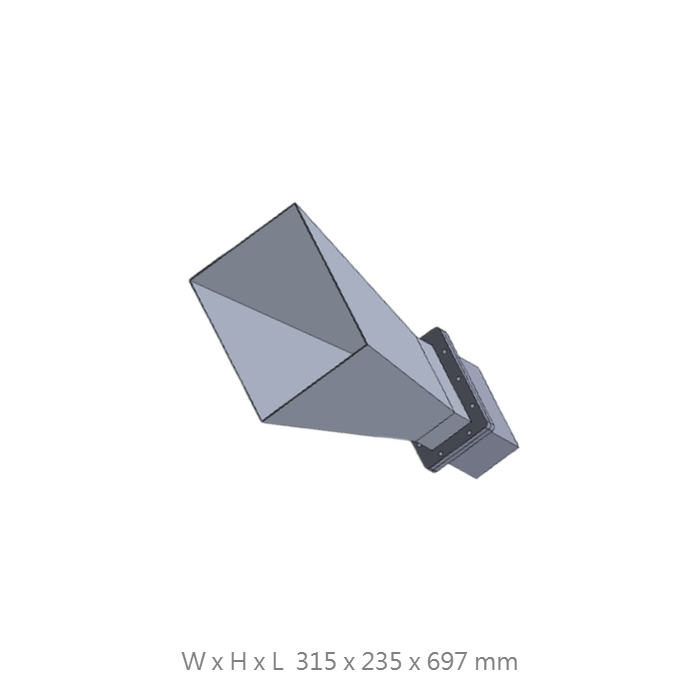

| Dimensions (W x H x L) | 315 x 235 x 697 mm |
| Weight | 5000 g (5 kg) |
| Waveguide Size | WR-650 |
| Waveguide Flange | UG417A/U |
| Body Material | Aluminium |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
L-Band Specialization
Specifically optimized for the 1.14 - 1.73 GHz spectrum, ideal for GPS and satellite navigation testing.
Specifically optimized for the 1.14 - 1.73 GHz spectrum, ideal for GPS and satellite navigation testing.
High Power Capability
Reliably manages up to 1000W of power, suitable for active high-intensity signal transmission and jamming simulations.
Reliably manages up to 1000W of power, suitable for active high-intensity signal transmission and jamming simulations.
Stable Directional Performance
Engineered for uniform gain and precise beamwidths across the operating bandwidth.
Engineered for uniform gain and precise beamwidths across the operating bandwidth.
Rugged Aluminum Build
Manufactured with a durable aluminium body to ensure long-term mechanical stability in laboratory and field environments.
Manufactured with a durable aluminium body to ensure long-term mechanical stability in laboratory and field environments.
Compact & Lightweight Design
Carefully designed for ease of handling and mounting while maintaining a professional appearance.
Carefully designed for ease of handling and mounting while maintaining a professional appearance.
Custom Design Options
Available waterproof structures, PTZ control functions, and custom tripod or antenna mounting designs upon request.
Available waterproof structures, PTZ control functions, and custom tripod or antenna mounting designs upon request.
Contact Us
For pricing, data sheets, or technical support regarding the HS-650-UDR-10-NF, please contact us:
