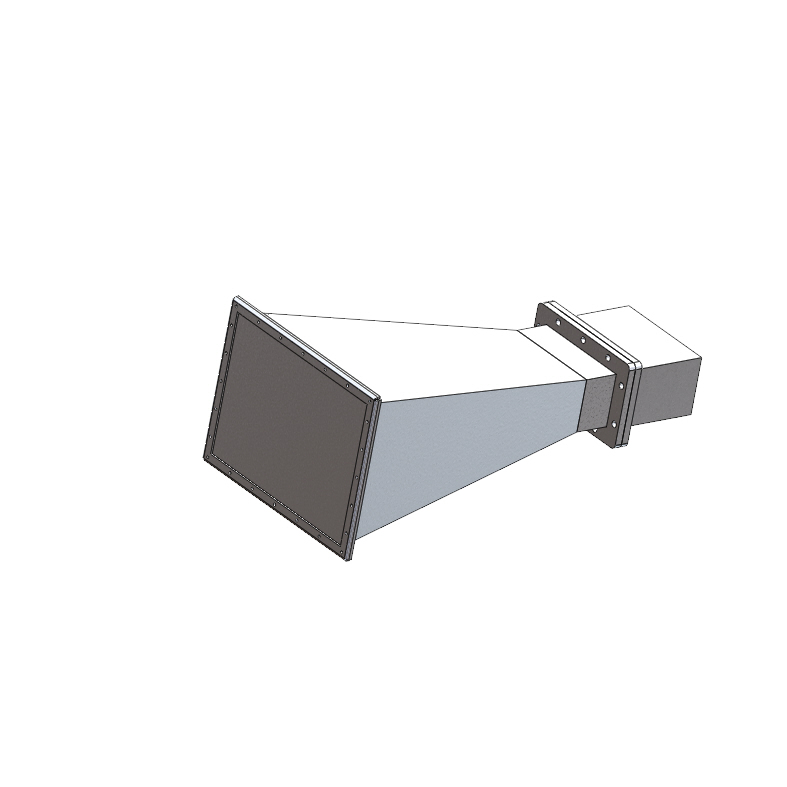

WR-650 Standard Gain Horn Antenna 1.14 GHz to 1.73 GHz, 10dbi Gain, N-Female Connector with Waterproof Radome

WR-650 Standard Gain Horn Antenna 1.14 GHz to 1.73 GHz, 10dbi Gain, N-Female Connector with Waterproof Radome

Model No: HS-650-10-R-NF

Mechanical Drawing: Download

  • Waveguide: WR-650
  • Frequency: 1.14 GHz to 1.73 GHz
  • Gain: 10 dBi
  • Max Power (W): 1000W
Quantity:
INQUIRY

  • Description & Specification

Application:

  • Operating from 1.14 GHz to 1.73 GHz, 10 dbi gain
  • Outdoor/ Indoor application
  • GPS jamming
  • EMI/EMC testing
  • Antenna gain measurements.

Feature:

  • Compact design, lightweight
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • Waterproof structure
  • PTZ Controlling function
  • Tripod or antenna mounting design
  • Color Custom: Blue, Military Green, Gray, Black

Description:

  • Model: HS-650-10-R-NF
  • Waveguide: WR-650
  • Frequency: 1.14 GHz to 1.73 GHz
  • Gain: 10 dBi
  • Max Power (W): 1000W
  • -3dbi beamwidth H-plane: 54 deg
  • -3dbi beamwidth E-Plane:  deg

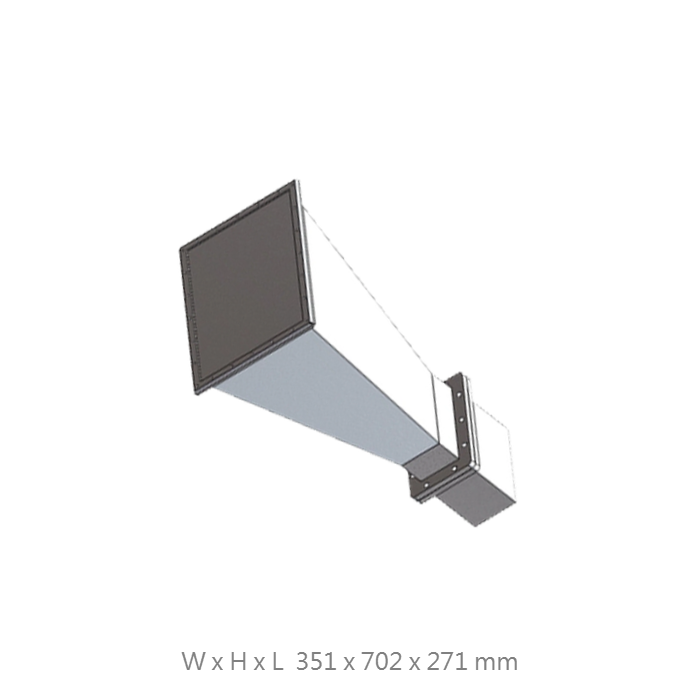

  • Size (mm): 271x351x702mm
  • Weight (g): 5700
  • Waveguide Flange: UDR/PDR
  • V.S.W.R: 1.25
  • Body Material: Aluminium
  • Waterproof Radome: PVC (Gray)
  • Connector: N-Female (SUS303)
