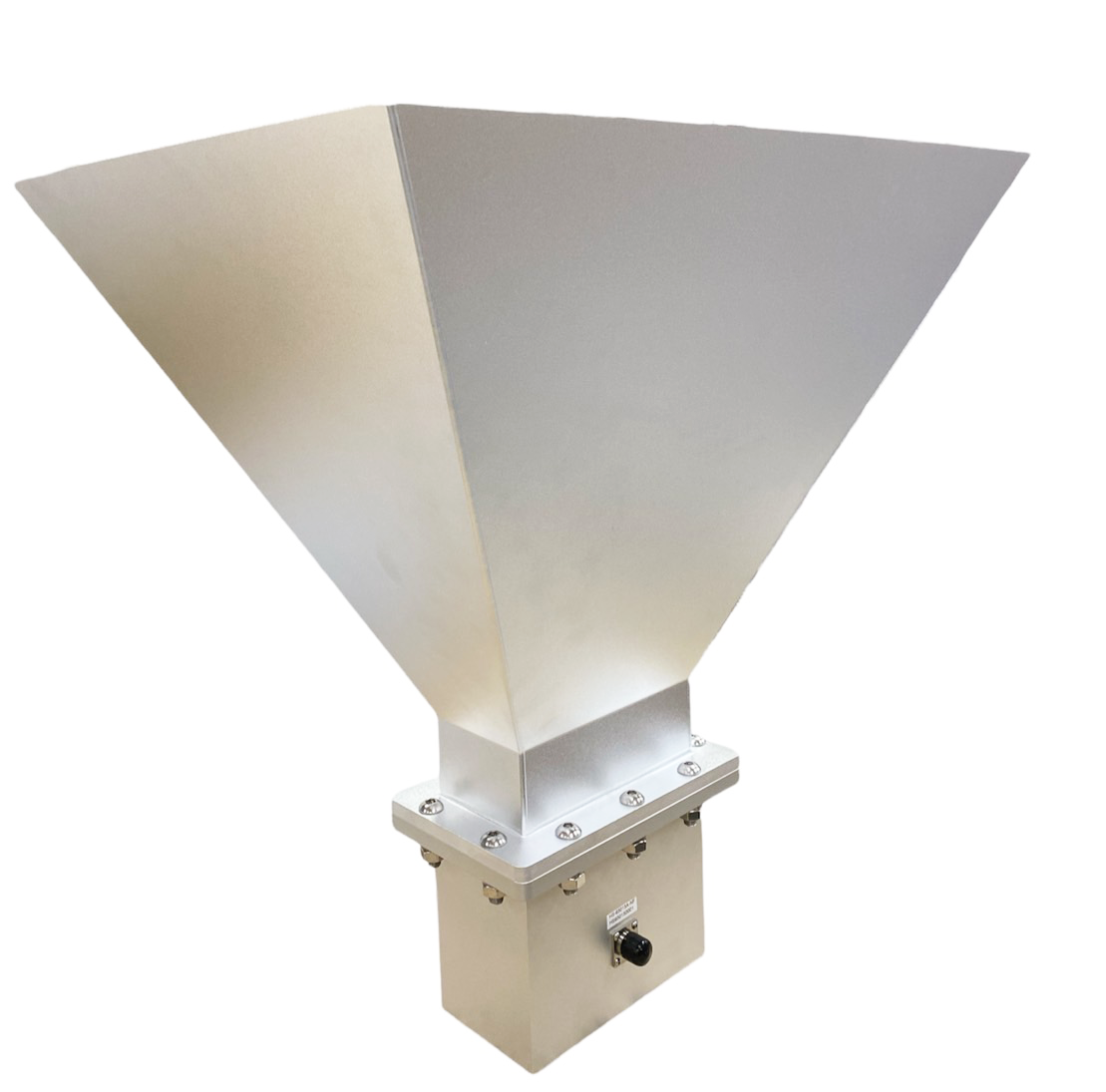

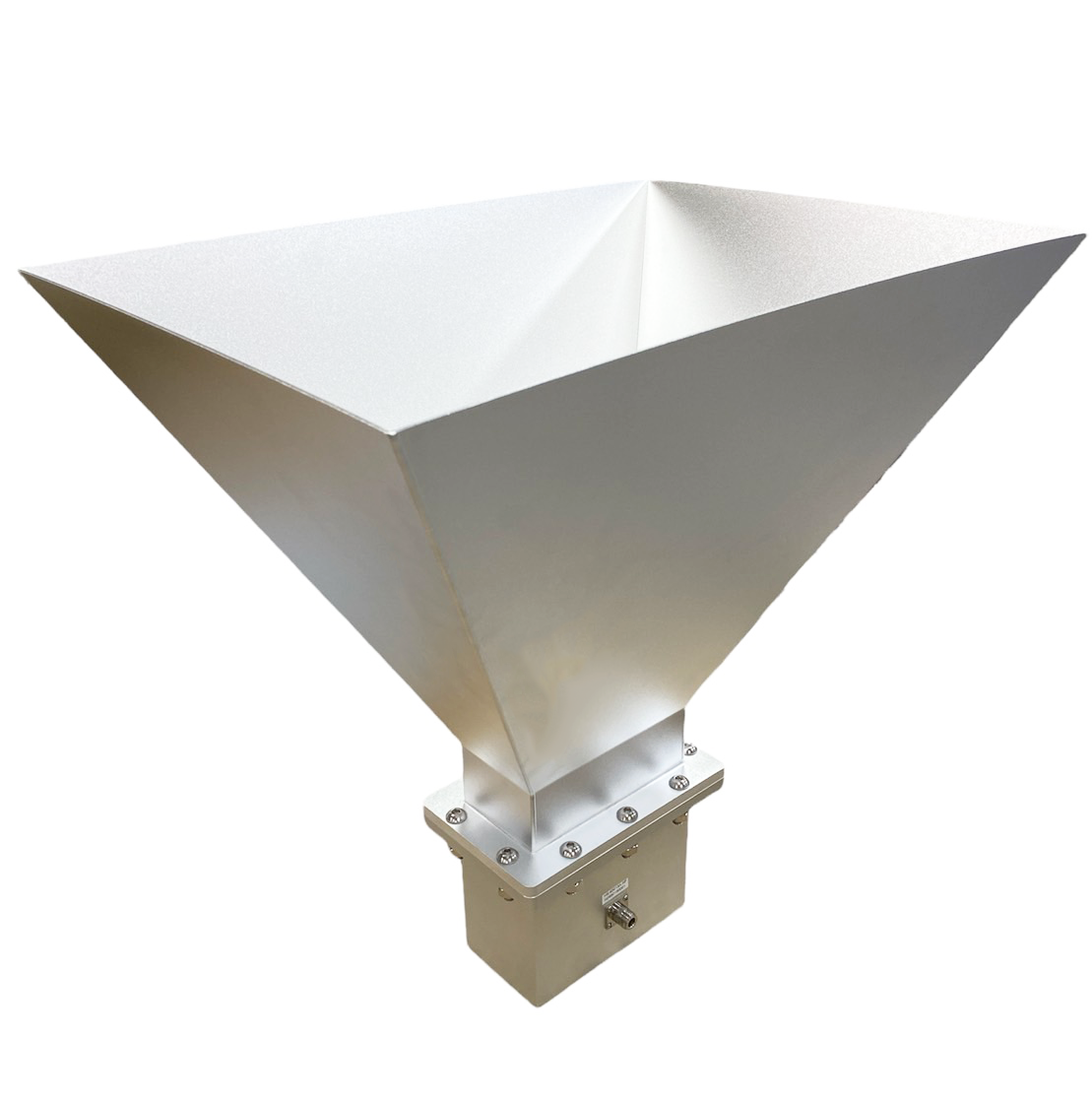

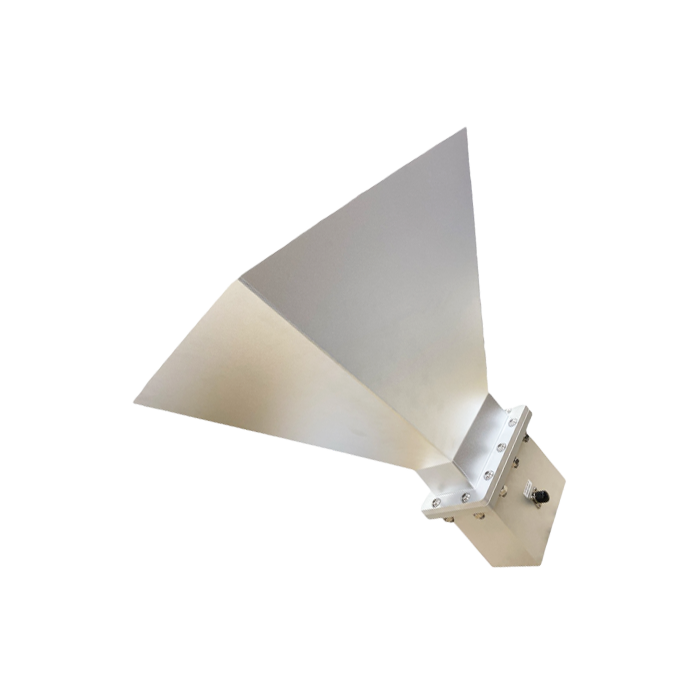

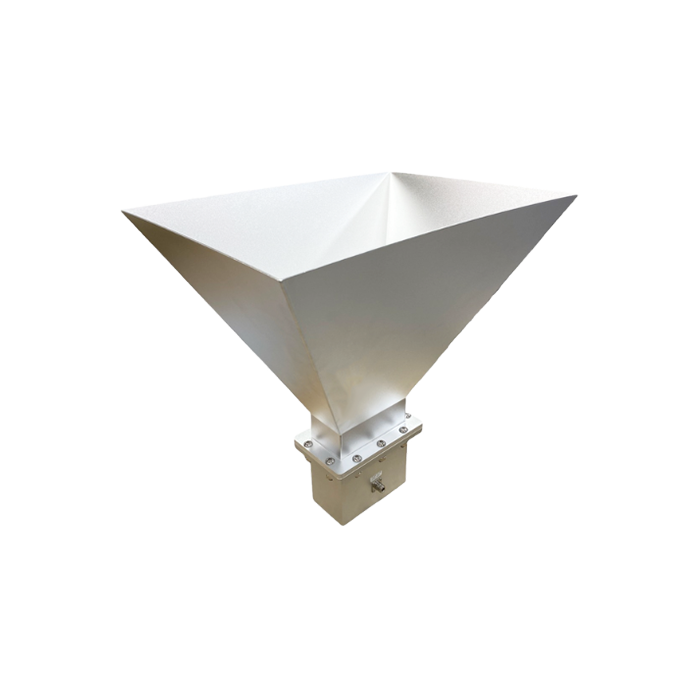

HS-650-UDR-15-NF Standard Gain Horn Antenna
1.14 GHz to 1.73 GHz | 15 dBi High Gain | WR-650 Waveguide
The HS-650-UDR-15-NF is a precision-engineered Standard Gain Waveguide Horn Antenna developed by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Optimized for the 1.14 GHz to 1.73 GHz frequency spectrum, this antenna provides a high directional gain of 15 dBi. Manufactured in Taiwan, it features a WR-650 waveguide styling with a UG 417A/U flange and a premium SUS N-Female connector, ensuring superior signal integrity for applications including GPS jamming, EMI/EMC testing, and directional gain measurements.
Technical Specifications
Electrical Specifications
[Image of WR-650 standard gain waveguide horn antenna radiation pattern]| Frequency Range | 1.14 GHz - 1.73 GHz |
| Gain | 15 dBi |
| V.S.W.R | 1.25 : 1 |
| H-plane Beamwidth (-3dB) | 20° |
| E-plane Beamwidth (-3dB) | 18° |
| Maximum Power | 1000 W |
| Connector | N-Female (SUS) |
Mechanical Specifications

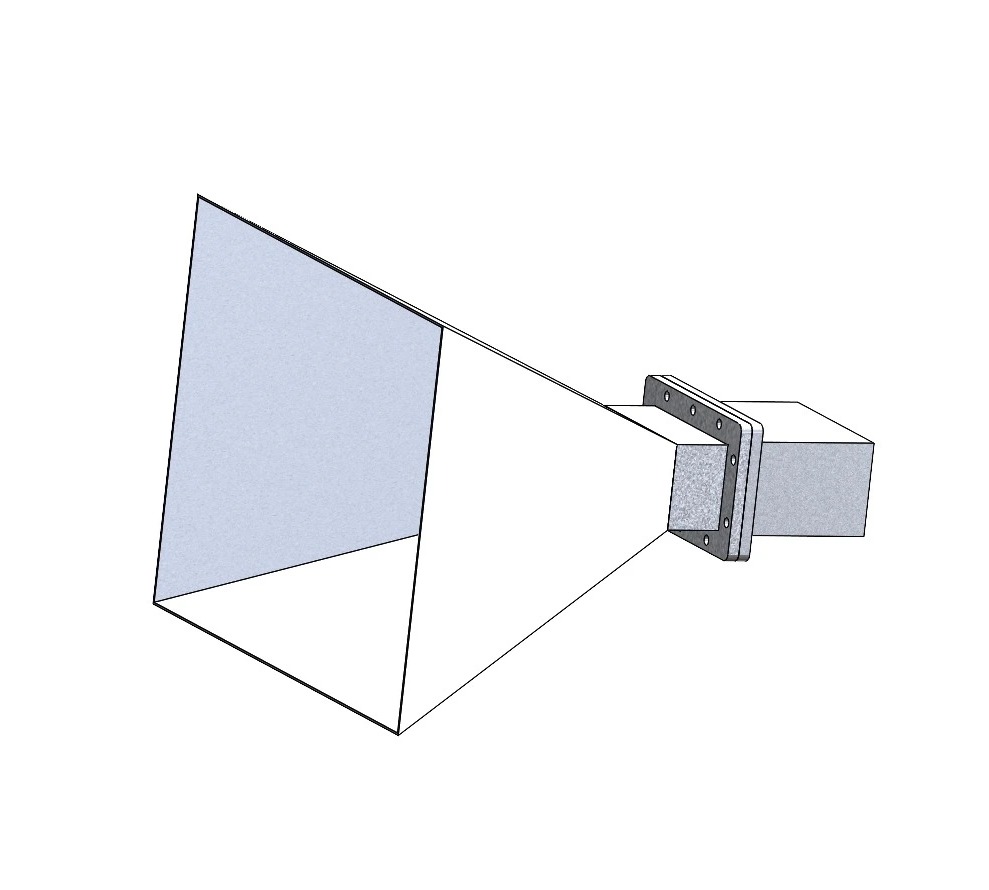

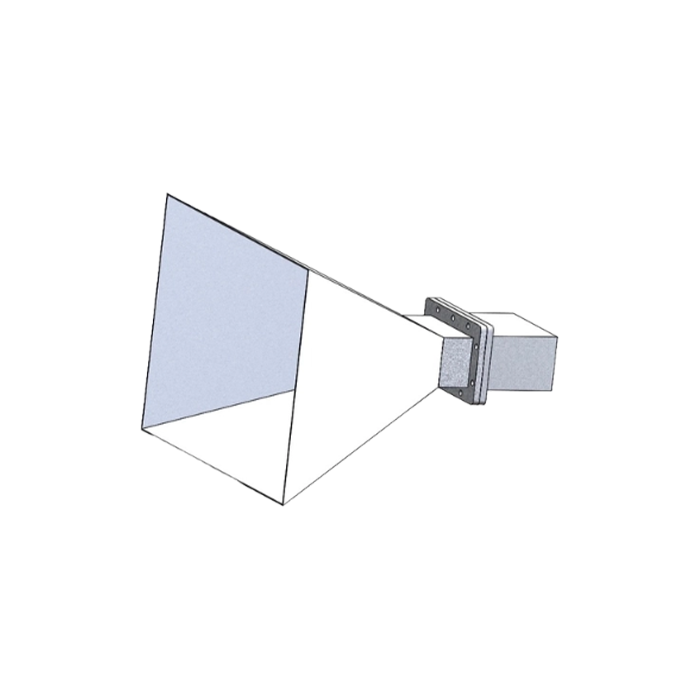

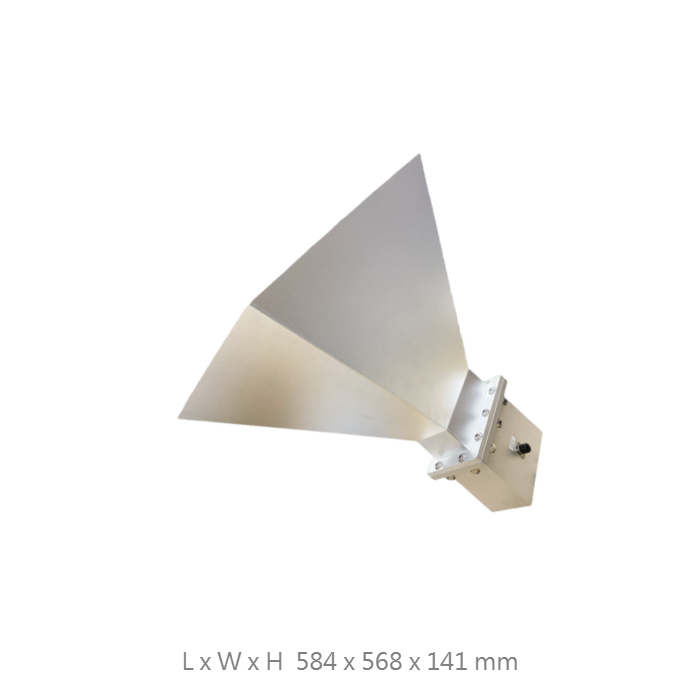

[Image of HS-650-UDR-15-NF waveguide horn antenna mechanical drawing and dimensions]| Dimensions (L x W x H) | 584 x 568 x 141 mm |
| Weight | 5800 g (5.8 kg) |
| Waveguide Size | WR-650 |
| Waveguide Flange | UG 417A/U |
| Body Material | Aluminium |
| Origin | Taiwan Design, Made in Taiwan |
Key Features & Applications
L-Band Navigation Optimization
Perfectly tuned for GPS jamming simulations and EMI/EMC testing within the 1.14 - 1.73 GHz range.
Perfectly tuned for GPS jamming simulations and EMI/EMC testing within the 1.14 - 1.73 GHz range.
High Directivity Gain
Delivers a sharp 15 dBi gain, making it an ideal reference antenna for laboratory gain measurements.
Delivers a sharp 15 dBi gain, making it an ideal reference antenna for laboratory gain measurements.
Rugged Aluminum Build
Manufactured with a high-grade aluminium body for lightweight portability and long-term mechanical stability.
Manufactured with a high-grade aluminium body for lightweight portability and long-term mechanical stability.
Professional Appearance
Compact design with a focus on good industrial aesthetics and structural integrity.
Compact design with a focus on good industrial aesthetics and structural integrity.
High Power Tolerance
Safely manages up to 1000W of power, suitable for high-intensity signal testing and transmitter calibration.
Safely manages up to 1000W of power, suitable for high-intensity signal testing and transmitter calibration.
Customizable Options
Available waterproof structures, PTZ control, custom colors, and tripod mounting designs upon request.
Available waterproof structures, PTZ control, custom colors, and tripod mounting designs upon request.
Contact Us for Custom Designs
For pricing, specialized mounting, or PTZ controlling functions, please contact our engineering team:
