Description & Specification

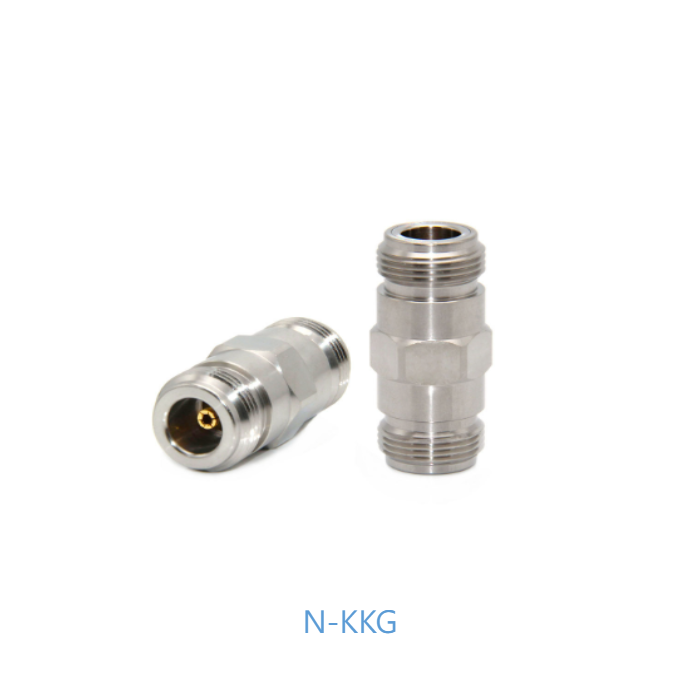

N-Type Female Precision Adapter
Model: N-KKG | DC - 18 GHz | Female to Female
The N-KKG is a high-performance coaxial adapter designed for seamless signal transition and precision coupling up to 18 GHz. Engineered for laboratory excellence, it provides an ultra-stable 50 Ohm interface with minimal signal loss and reflection. This adapter is a critical component for high-frequency RF testing, microwave instrumentation, and advanced wireless deployments where Signal Integrity must be maintained across high-frequency cable extensions.
Core Electrical Specifications
| Frequency Range | DC to 18 GHz |
| V.S.W.R | ≤ 1.20 : 1 |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Parameters
| Connector Interface | N-Female to N-Female |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | Passivated Stainless Steel / High-Grade Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Lab Features
Broadband Precision
Ensures ultra-low VSWR of ≤ 1.20 across the 18 GHz spectrum, providing reliable measurements for Ku-band satellite and Wi-Fi 6E testing.
Extreme Thermal Stability
Specifically engineered to operate between -55°C and +165°C, making it suitable for aerospace, defense, and high-stress environmental chambers.
High Shielding Effectiveness
Precision-machined body threads and high-grade dielectric materials provide maximum EMI/RFI shielding, essential for maintaining clean Signal Integrity.
Superior Signal Integrity
Features a high-conductivity center contact interface to eliminate signal distortion and ensure phase-stable performance at high frequencies.
