Description & Specification

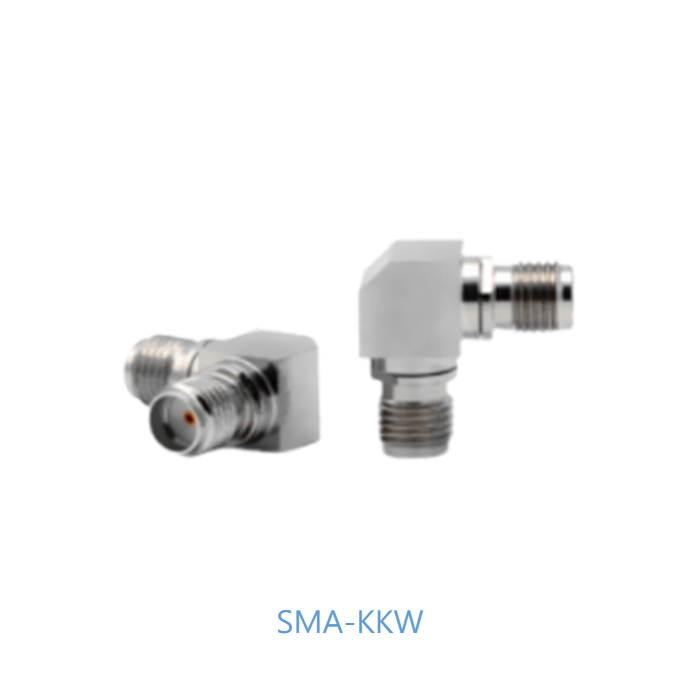

SMA Female to Female Adapter
Model: SMA-KKW | DC - 6 GHz | 50 Ohm | High-Precision VSWR ≤ 1.20
The SMA-KKW is a high-reliability SMA Female to Female interconnect solution designed for mission-critical RF applications requiring precision signal integrity from DC to 6 GHz. Engineered for Signal Defense systems and advanced communication dominance, this adapter features a superior VSWR of ≤ 1.20:1 and extreme insulation resistance. Precision-machined for 50 Ohm stability, it ensures unwavering performance and mechanical endurance in mobile tactical command units and professional-grade shielding environments.
Technical Specifications
Electrical Performance
| Frequency Range | DC ～ 6 GHz |
| Impedance | 50 Ohm |
| VSWR | ≤ 1.20:1 |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Material & Mechanical Parameters
| Durability | 500 Cycles |
| Operating Temperature | -55°C ～ +165°C |
| Interconnect Type | SMA Female to SMA Female (Jack-Jack) |
Key Tactical & Engineering Features
Stable Signal Integrity
Engineered to maintain an ultra-low VSWR of ≤ 1.20:1 across the full DC-6GHz band, ensuring minimal signal reflection for critical 50 Ohm links.
Extreme Thermal Endurance
Designed to operate reliably in harsh environments from -55°C to +165°C, ideal for tactical field defense and aerospace applications.
Professional Shielding Grade
High insulation resistance (≥ 5000 MΩ) provides superior Signal Security, preventing leakage in advanced communication networks.
Rugged Mechanical Survival
Features high-durability construction tested for 500 mating cycles, ensuring long-term interconnect reliability in high-vibration mobile platforms.
Get a Quote / Custom RF Solutions
Contact us for bulk procurement, specific plating requirements, or integrated RF cable assembly solutions.
