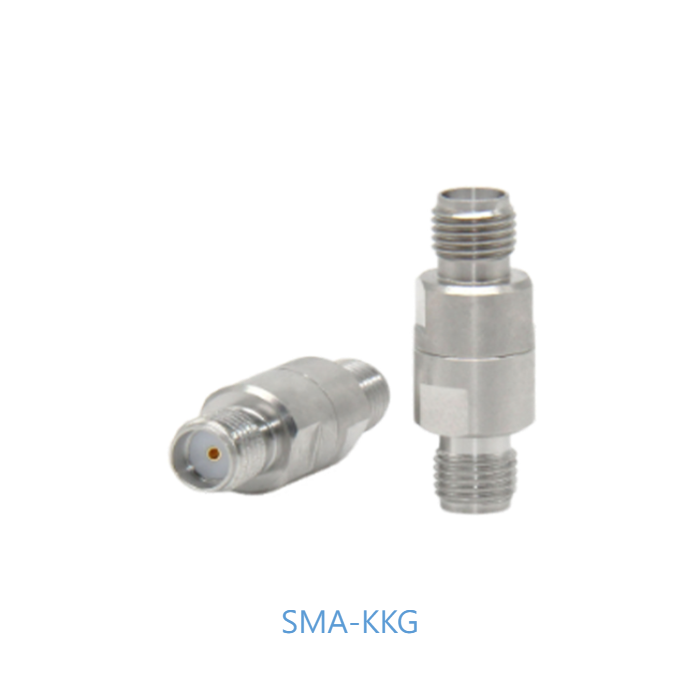

SMA Female to Female Adapter

SMA Female to Female Adapter

Model No: SMA-KKG

Product Datasheet: Download

Model: SMA-KKG
Frequency: DC~26.5GHz
VSWR: ≤1.20:1
Durability: 500 cycles
Quantity:
INQUIRY

  • Description & Specification

Item

Spec.

Frequency

DC～26.5GHz

VSWR

≤1.20:1

Durability

500 Cycles

Impedance

50Ω

Insulation Resistance

≥5000MΩ

Dielectric Withstand Voltage

1000V

Temperature

-55℃～+165℃
