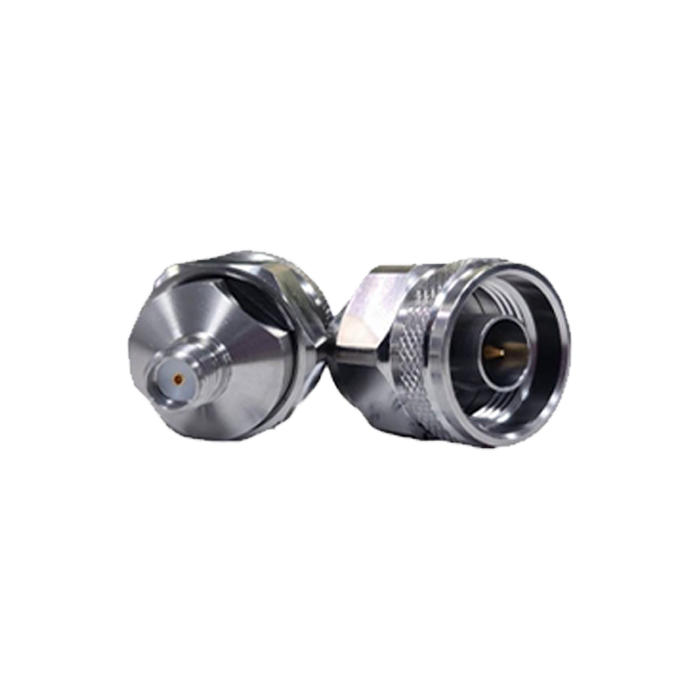

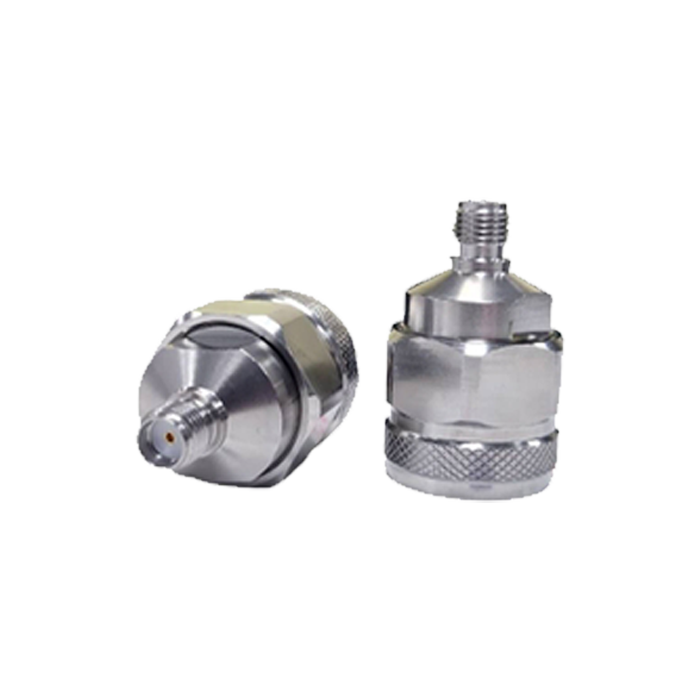

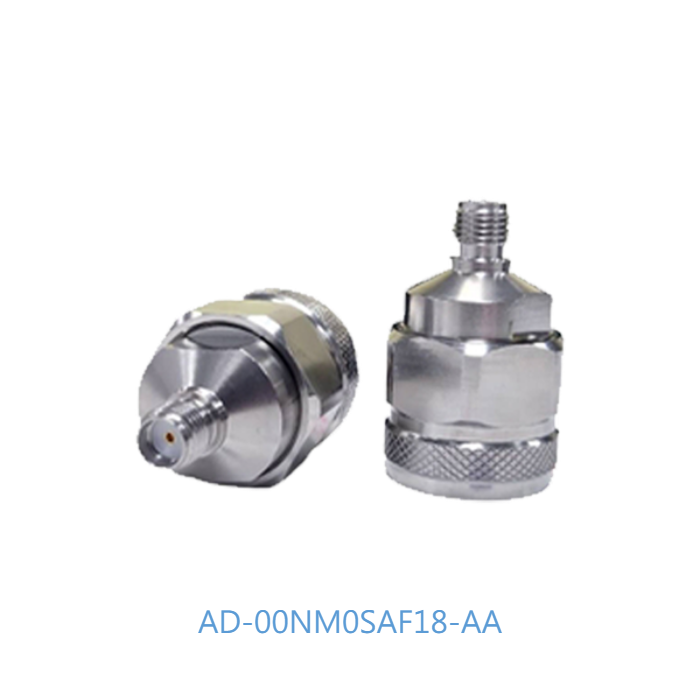

N-Type Male to SMA Female Precision Adapter
Model: AD-00NM0SAF18-AA | DC - 18 GHz | Between-Series Transition
The AD-00NM0SAF18-AA is a high-reliability coaxial adapter designed for seamless signal transition between N-type and SMA systems. Engineered for a broadband frequency range of DC to 18 GHz, it ensures minimal signal loss and reflection with an ultra-low VSWR profile. This adapter is a critical component for laboratory testing, heavy-duty instrumentation coupling, and field deployments where Signal Integrity must be maintained across extreme environmental and thermal conditions.
Core Electrical Specifications
| Frequency Range | DC to 18 GHz |
| V.S.W.R | ≤ 1.20 : 1 |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Parameters
| Connector Interface 1 | N-Type Male (Plug) |
| Connector Interface 2 | SMA Female (Jack) |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | High-Performance Alloy / Precision Machined |
Key Tactical & Lab Features
High-Frequency Precision
Delivers superior performance up to 18 GHz, covering Ku-band and low K-band applications with minimal insertion loss.
Broadband Signal Integrity
Ensures ultra-low VSWR of ≤ 1.20 across the entire spectrum, providing reliable measurements for high-precision microwave sub-systems.
Extreme Thermal Stability
Specifically engineered to operate between -55°C and +165°C, making it suitable for aerospace, defense, and high-stress outdoor environments.
Heavy-Duty Durability
Built to exceed 500 mating cycles, ensuring long-term reliability in laboratory environments and repetitive production line testing.
