Description & Specification

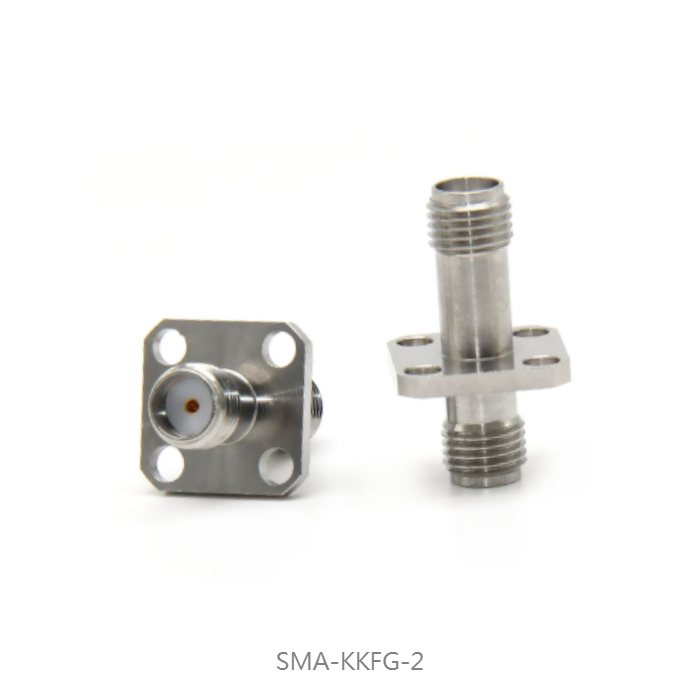

DC to 18 GHz, SMA-Female to SMA-Female Precision Adapter, Straight Configuration
The SMA-KKFG-2 is a high-performance Industrial Grade coaxial adapter designed for seamless signal transition and equipment coupling in microwave systems. Optimized for a wide frequency range from DC to 18 GHz, it ensures maximum Signal Integrity with minimal signal reflection and a stable VSWR profile of ≤ 1.20:1. Made in Taiwan, this precision-machined adapter is a critical component for RF laboratory testing, telecommunications infrastructure, and advanced wireless system integration where consistent Signal Management is paramount.
Technical Specifications
| Frequency Range | DC to 18 GHz |
| V.S.W.R | ≤ 1.20 : 1 |
| Impedance | 50 Ohm |
| Connector Interface | SMA-Female to SMA-Female |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Insulation Resistance | ≥ 5000 MΩ |
| Body Material |
Premium High-Performance Alloy
|
Professional Test Highlights
Broadband Microwave Precision
Maintains a stable VSWR ≤ 1.20 across the 18 GHz spectrum, ensuring Signal Integrity for satellite, Wi-Fi 6E, and professional RF testing.
Extreme Thermal Resilience
Engineered to operate reliably from -55°C to +165°C, suitable for aerospace, defense, and high-stress industrial environments.
Laboratory Grade Build
Precision-machined in Taiwan to exceed 500 mating cycles, providing a safe and durable solution for active Signal Management in production lines.
