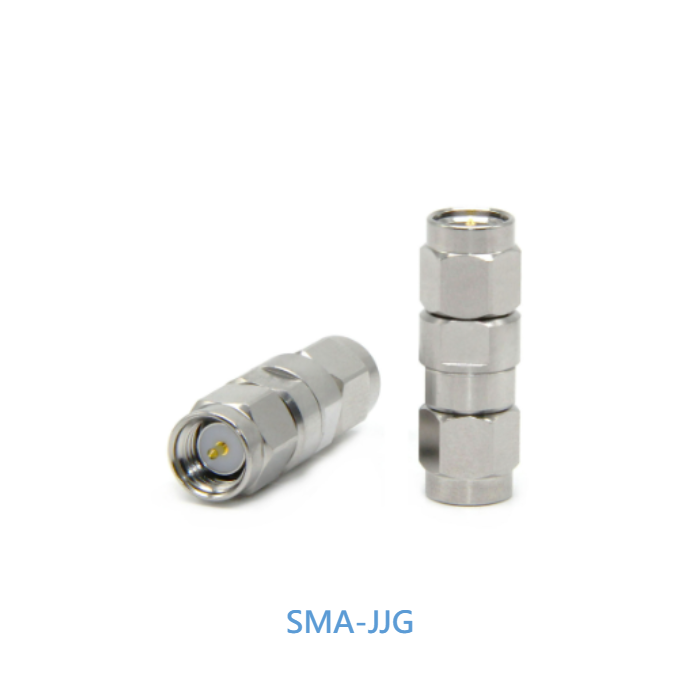

SMA Ultra-Precision Coaxial Adapter
Model: SMA-JJG | DC - 26.5 GHz | SMA Male to Male
The SMA-JJG is a high-performance coaxial adapter designed for seamless signal transition and instrument coupling in advanced millimeter-wave environments. Optimized for a vast frequency range up to 26.5 GHz, it ensures minimal signal loss and reflection with an ultra-low VSWR profile. This adapter is a critical component for high-frequency laboratory testing, microwave sub-system integration, and field tactical deployments where Signal Integrity must be maintained across a wide operating temperature range.
Core Electrical Specifications
| Frequency Range | DC to 26.5 GHz |
| V.S.W.R | ≤ 1.20 : 1 |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Parameters
| Connector Interface | SMA Male to SMA Male |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | High-Performance Alloy / Precision Machined |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Lab Features
Millimeter-Wave Precision
Ensures ultra-low VSWR of ≤ 1.20 across the entire DC-26.5 GHz spectrum, providing reliable measurements for high-frequency microwave and K-band testing.
Extreme Thermal Stability
Specifically engineered to operate between -55°C and +165°C, making it suitable for aerospace, defense, and high-stress environmental chambers.
High Durability Standard
Built to exceed 500 mating cycles without performance degradation, ensuring long-term reliability in laboratory and high-speed production line environments.
Industrial Grade Insulation
Features ≥ 5000 MΩ insulation resistance, safeguarding sensitive RF systems against high-voltage dielectric transients up to 1000V.
