Description & Specification

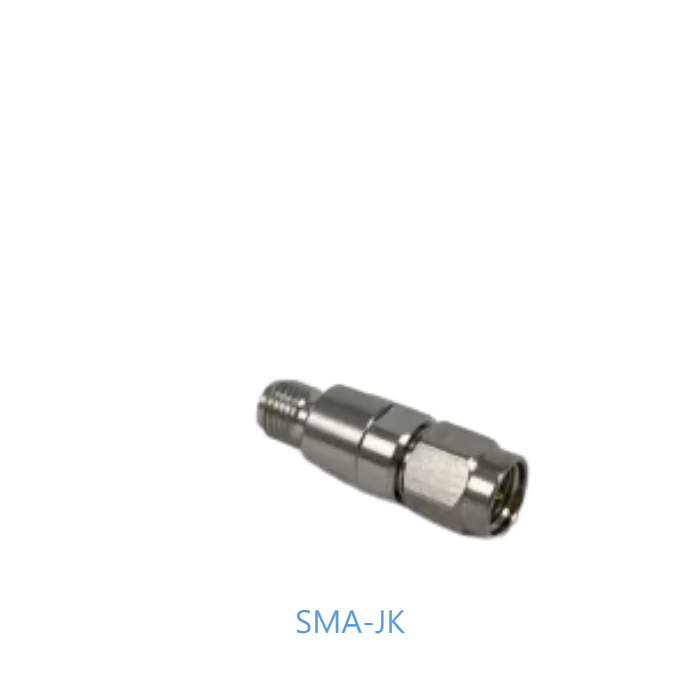

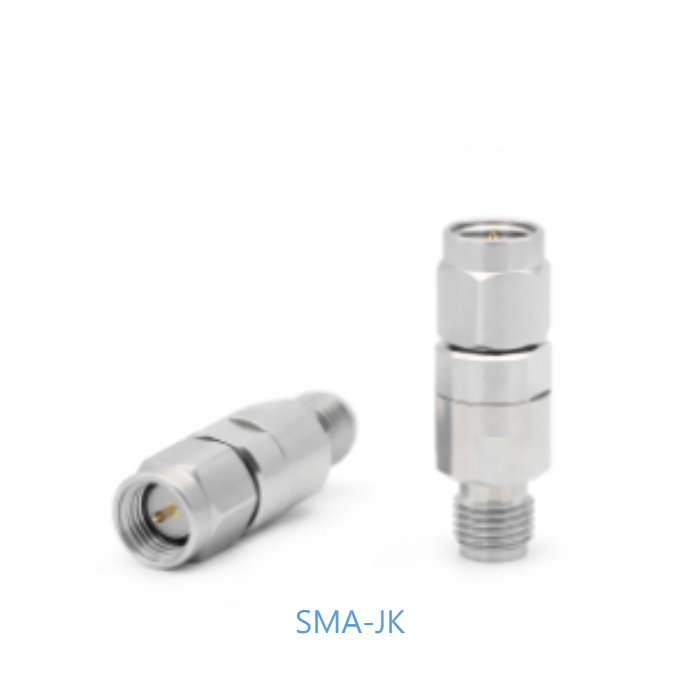

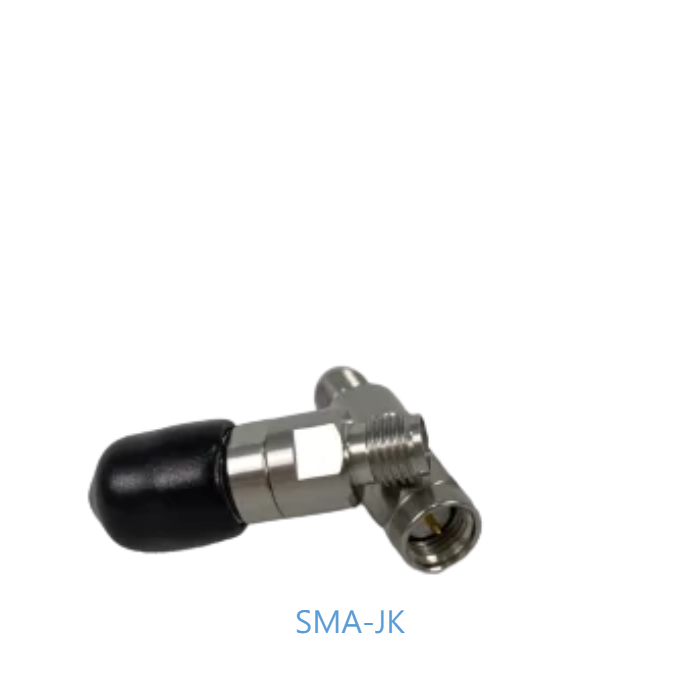

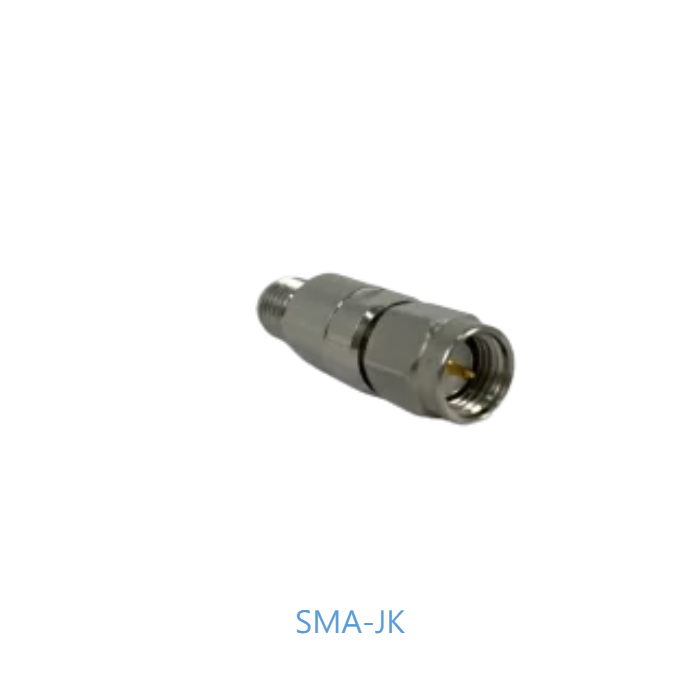

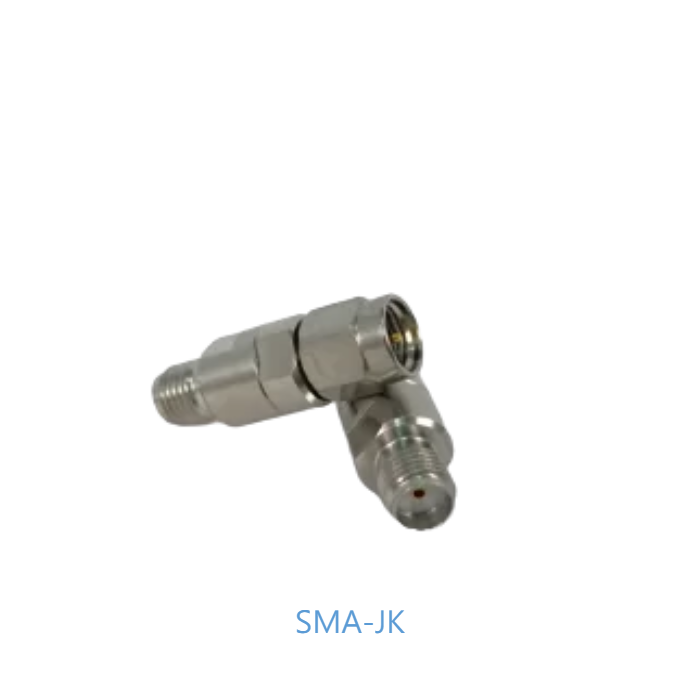

SMA High-Precision Coaxial Adapter
Model: SMA-JK | DC - 6 GHz | SMA Male to Female
The SMA-JK is a high-reliability coaxial adapter designed for seamless signal transition and cable coupling in professional RF environments. Engineered for a stable frequency range of DC to 6 GHz, it ensures minimal signal loss and reflection with an ultra-low VSWR profile. This adapter is a critical component for wireless communication testing, instrumentation integration, and field deployments where Signal Integrity must be maintained across a wide operating temperature range.
Core Electrical Specifications
| Frequency Range | DC to 6 GHz |
| V.S.W.R | ≤ 1.15 : 1 |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Parameters
| Connector Interface | SMA Male to SMA Female |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | High-Performance Alloy / Precision Machined |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Lab Features
Superior Signal Integrity
Ensures ultra-low VSWR of ≤ 1.15 across the entire 6 GHz spectrum, providing reliable measurements for wireless networking and IoT testing.
Extreme Thermal Stability
Specifically engineered to operate between -55°C and +165°C, making it suitable for automotive, aerospace, and high-stress environmental chambers.
High Durability Standard
Built to exceed 500 mating cycles without performance degradation, ensuring long-term reliability in active laboratory and production environments.
Industrial Grade Insulation
Features ≥ 5000 MΩ insulation resistance, safeguarding sensitive RF systems against high-voltage dielectric transients up to 1000V.
