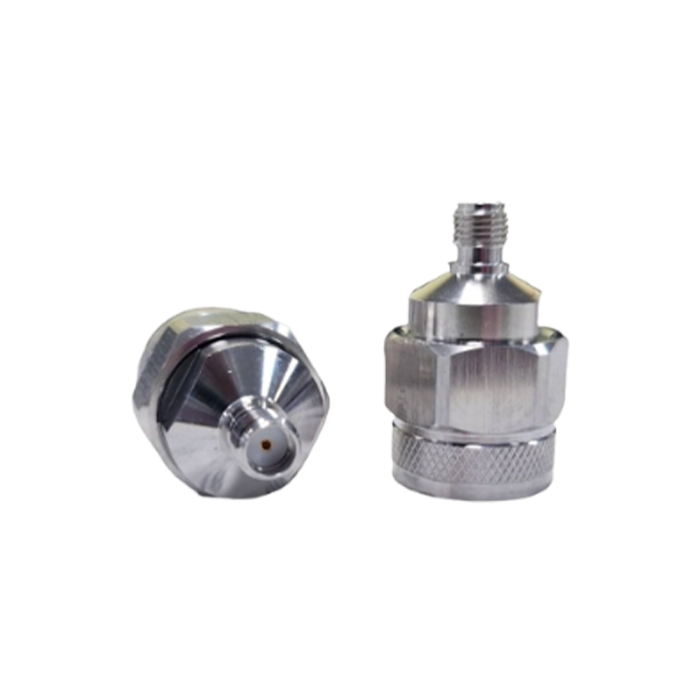

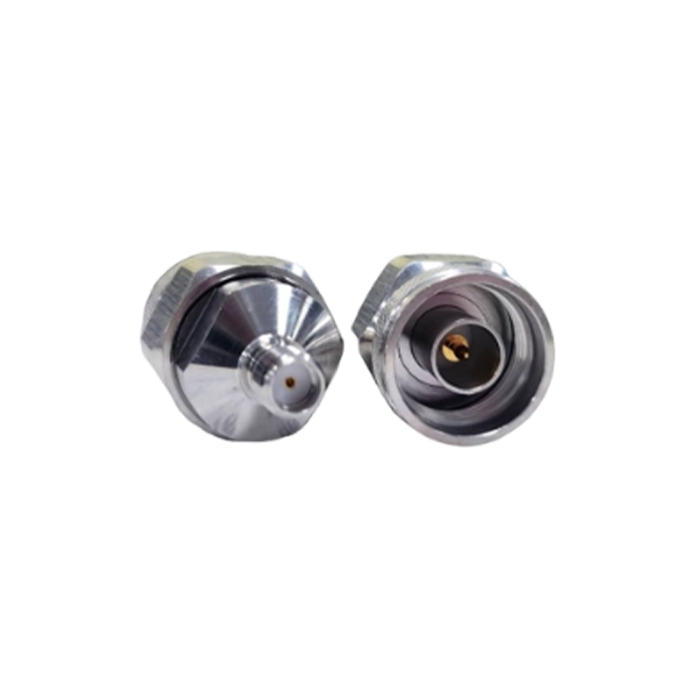

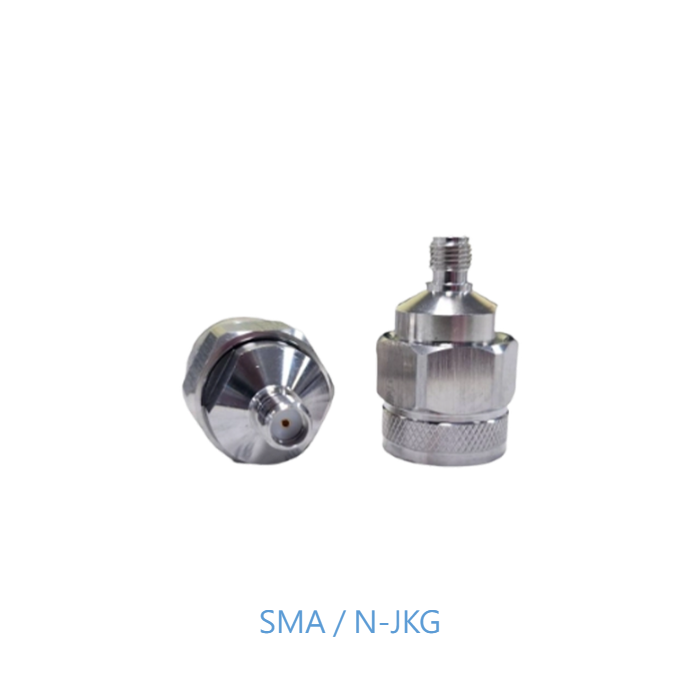

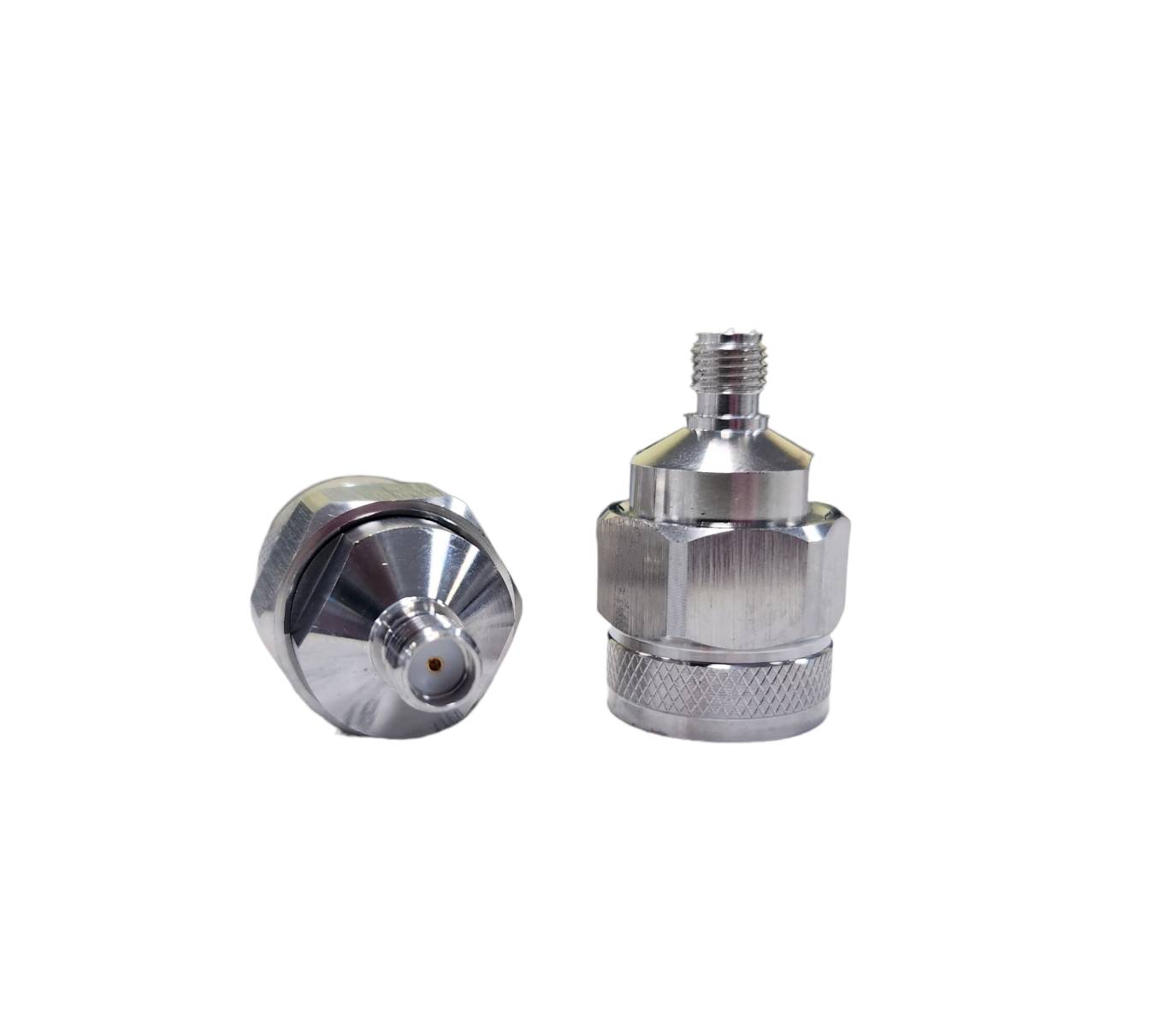

SMA Male to N Female Adapter

SMA Male to N Female Adapter

Model No: AD-00NMOSAF6

Product Datasheet: Download

Model: AD-00NMOSAF6
Frequency: DC~18GHz
VSWR: ≤1.20:1
Durability: 500 cycles

Quantity:
INQUIRY

  • Description & Specification

Item

Spec.

Frequency

DC～18GHz

VSWR

≤1.20:1

Durability

500 Cycles

Impedance

50Ω

Insulation Resistance

≥5000MΩ

Dielectric Withstand Voltage

1000V

Temperature

-55℃～+165℃
