WR90 Standard Gain Horn Antenna (HS Series)
- Select
HS Series • X-Band (8.20 – 12.4 GHz)

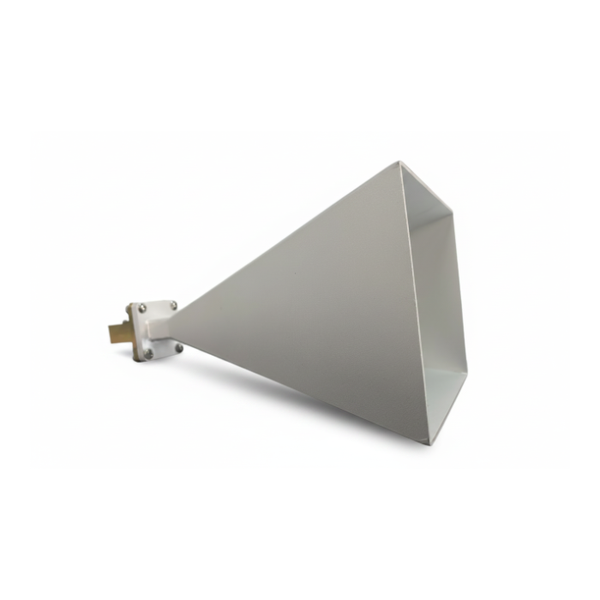

FT-RF WR90 Standard Gain Horn Antenna
FT-RF WR90 Standard Gain Horn Antennas (HS Series) integrate a calibrated X-band pyramidal horn with a low-loss waveguide-to-coaxial adapter (8.20 GHz to 12.4 GHz). Featuring standardized 10, 15, 20, or 25 dBi gain options, they provide trusted reference standards for defense radar cross-section (RCS) testing and anechoic chamber calibration.
Crafted from high-purity aluminum with protective passivated coatings, the WR90 HS series guarantees high polarization purity (>30 dB) and predictable gain curves across its full operational frequency band.
🛠️ Engineering & Customization Options
Tailored structural designs and calibration deliverables:
- Individual Calibration: Traceable gain & pattern data.
- Custom Gain Steps: Tailored gain profiles.
- Matched Sets: Precision dual-channel pairs.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 8.20 GHz to 12.4 GHz (X-Band) |
| Nominal Gain Options | 10 dBi, 15 dBi, 20 dBi, 25 dBi |
| Coaxial Interface | Integrated N-Type / SMA Female Adapter |
| Flange Type | UG-39/U / FDP100 Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
NEW
HS-090-UBR-10H-SF
WR90 Standard Gain Waveguide Horn Antenna, 10dbi, H-Plane Sectoral Horn Antenna, 8.2 to 12.4GHz, SMA-Female Antenna, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Sectoral Horn Antenna |
| Nominal Gain: | 10 dBi (106° E-Plane) |
| Waveguide Size: | WR-90 (UG-39/U / UBR Style) |
| Stock: | 10+ |
| 2026/06/24 | |
NEW
HS-090-UBR-10E-NF
WR90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 10dbi, E-Plane Sectoral Horn Antenna, N-Female Connector, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Sectoral Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-90 (UG-39/U / UBR) |
| Stock: | 0 |
| 2026/06/24 | |
NEW
HS-090-PBR-10E-NF
WR-90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 10dbi gain, E-Plane Sectoral, N-Female Connector, PBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Sectoral Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-90 (UG-39/U / PBR Style) |
| Stock: | Contact us |
| 2026/06/24 | |
NEW
HS-090-UBR-10A-E-SF
WR-90 Standard Gain END Launch Waveguide Horn, 8.2 to 12.4GHz, 10dbi Gain, SMA-Female Antenna, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-90 (UG-39/U / SMA-F End Launch) |
| Stock: | 0 |
| 2026/06/24 | |
HS-090-10-R-NF
WR-90 Standard Gain Horn Antenna, 8.2 to 12.4GHz, 10dbi gain, N-Female Connector, Waterproof Radome Waveguide
View Details
FT-RF
| Frequency Range: | 8.2 to 12.4 GHz |
| Standard Gain: | 10 dBi |
| Protection Style: | Waterproof Radome Structure |
| Connector / Flange: | SMA-Female (SUS) / WR-90 (UG-39/U) |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock Status: | - |
| 2026/06/24 | |
NEW
HS-090-UBR-10H-E-SF
WR90 Standard Gain End-Launch Waveguide Horn Antenna, 8.2 to 12.4GHz, 10dbi H-Plane Sectoral, SMA-Female Connector, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Sectoral Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-90 Sectoral Horn |
| Stock: | 0 |
| 2026/06/25 | |
HS-090-UBR-15A-SF
WR90 Standard Gain Waveguide Horn Antenna, 8.2 to 12.4GHz, 15dbi, SMA-Female connector, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi Calibrated (12°×91° Beam) |
| Waveguide Size: | WR-90 (UG-39/U / 500W) |
| Stock: | 0 |
| 2026/06/22 | |
NEW
HS-090-UBR-15E-E-SF
WR90 Standard Gain Horn Antenna, E-Plane Sectoral, 8.2 to 12.4GHz, 15dbi, END Launch SMA- Female Connector, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Sectoral Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR-90 (UG-39/U / UBR End Launch) |
| Stock: | 0 |
| 2026/06/24 | |
NEW
HS-090-UBR-15A-E-SF
WR90 Standard Gain Horn Antenna, 8.2 to 12.4GHz, 15dbi, END Launch SMA-Female connector, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR-90 (End Launch Horn) |
| Stock: | 0 |
| 2026/06/25 | |
NEW
HS-090-15-R-SF
WR-90(8.2 to 12.4GHz)SMA-Female waterproof radome Waveguide 15dbi Stand Horn Antenna
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi (Waterproof Radome) |
| Waveguide Size: | WR-90 (SMA-Female SUS) |
| Stock: | 1 |
| 2026/06/09 | |
NEW
HS-090-UBR-20A-E-SF
WR90 Standard Gain End Launch Waveguide Horn Antenna, 8.2 to 12.4GHz, 20 dbi, SMA-Female Connector, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi Typical |
| Waveguide Size: | WR-90 (UBR / SMA-F End Launch) |
| Stock: | 0 |
| 2026/06/24 | |
NEW
HS-090-20-R-SF
WR-90 Standard Gain Horn Antenna, 8.2 to 12.4GHz, 20dbi gain, SMA-Female , Waterproof Radome Waveguide
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi (Waterproof Radome) |
| Waveguide Size: | WR-90 (SMA-Female SUS) |
| Stock: | 0 |
| 2026/06/11 | |
