WR-90 E-Plane Sectoral Horn Antenna with N-Type Adapter
Model: HS-090-UBR-10E-NF | 8.2 - 12.4 GHz | 10 dBi | 300W
The HS-090-UBR-10E-NF is a high-precision Sectoral Horn Antenna expertly flared in the E-plane to deliver a massive H-plane coverage of 112°. Operating within the 8.2 GHz to 12.4 GHz X-Band spectrum, this antenna system integrates a precision waveguide-to-coaxial adapter with a durable Stainless Steel N-Female interface. Precision-manufactured from high-grade aluminum, it ensures exceptional return loss (VSWR 1.25) and manages power loads up to 300W, making it an essential radiator for EMI/EMC Testing, wide-angle illumination, and antenna gain measurement.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-90 (R100) |
| Antenna Type | E-Plane Sectoral Horn |
| Frequency Range | 8.2 GHz to 12.4 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 300 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H / E Plane) | 112° / 38° |
Mechanical & Physical Specs

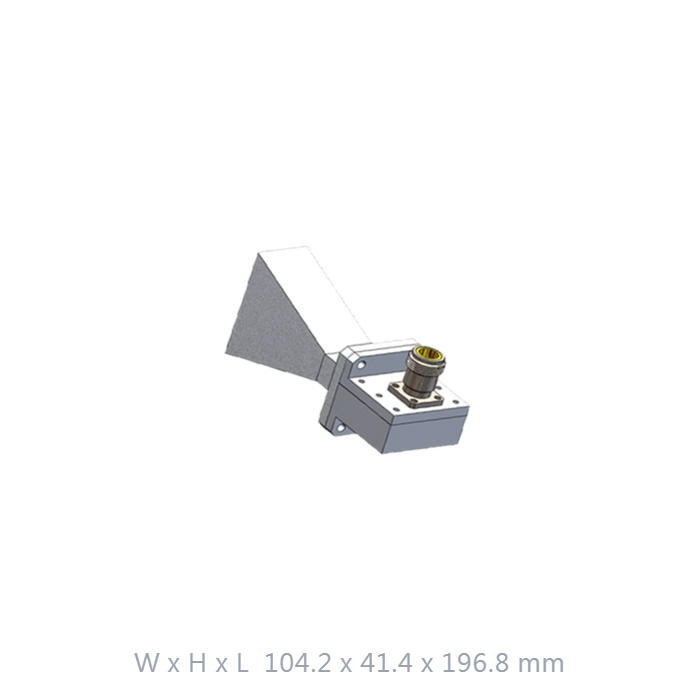

| Dimensions (WxHxL) | 104.2 x 41.4 x 196.8 mm |
| Net Weight | 260 g |
| Waveguide Flange | UG-39/U (UBR Style) |
| Coaxial Connector | N-Female (Stainless Steel / SUS) |
| Body Material | High-Grade Aluminium |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
Extreme H-Plane Coverage
The specialized E-plane flare design yields a massive 112° sectoral coverage in the H-plane, ideal for broad-area illumination in EMC susceptibility testing or wide-angle surveillance.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel N-Type interface, ensuring reliable electrical contact and structural wear resistance for repeated laboratory use.
X-Band Pattern Stability
Optimized for the 8.2-12.4 GHz band, ensuring consistent boresight accuracy and minimal signal leakage in mission-critical environments.
Customizable Infrastructure
Available with options for PTZ control integration, specialized tripod mounting, and custom color coatings to meet specific mission requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof structures, or custom mounting interfaces.
