Description & Specification

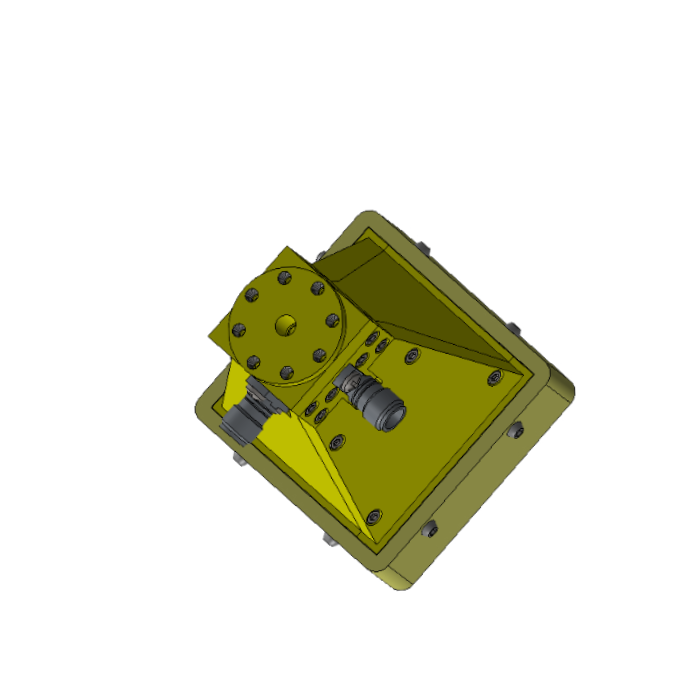

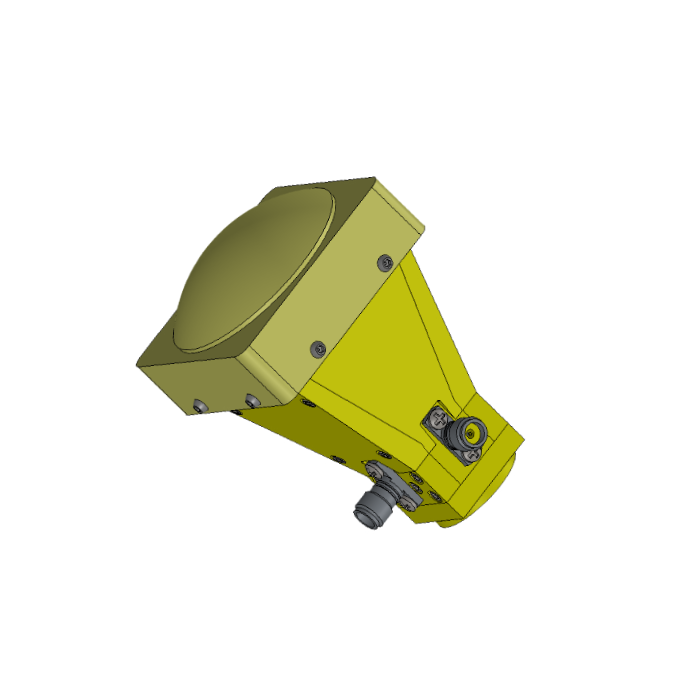

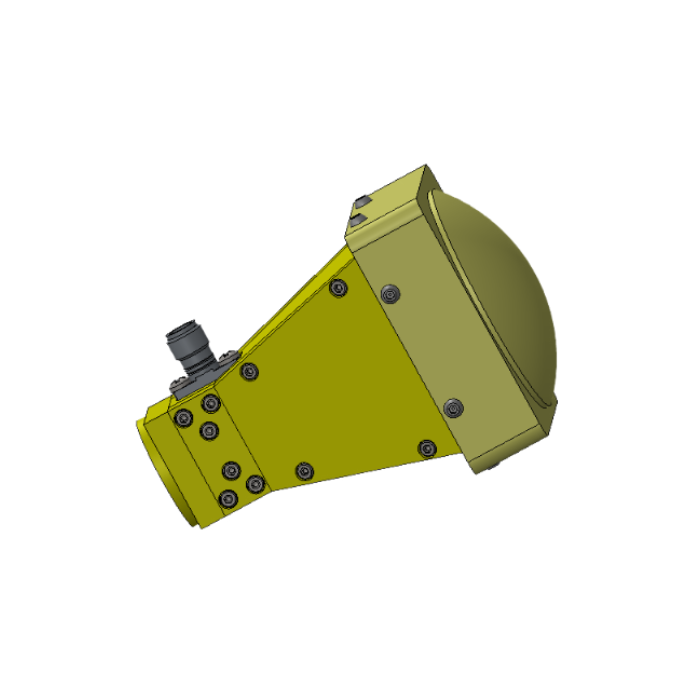

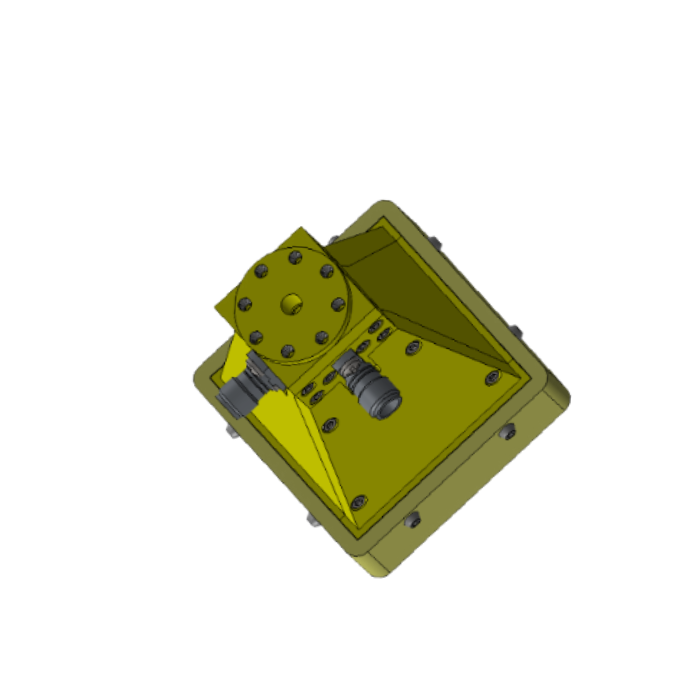

7 GHz to 55 GHz LENS Dual-polarization Broadband Antenna
Lens-Enhanced Precision | Dual-Polarized Design | Model: HQ-0755GH-VF
The HQ-0755GH-VF is a high-performance LENS Dual-polarization Broadband Horn Antenna designed for expert RF measurement across the 7 GHz to 55 GHz frequency range. This laboratory-grade antenna utilizes lens-enhanced technology to provide exceptional gain characteristics (10 to 22 dBi) and optimized radiation patterns. Featuring a precision 1.85mm dual-connector interface, it supports critical measurements in EMC/EMI testing, anechoic chambers, and millimeter-wave signal analysis. Expertly engineered in Taiwan, it ensures high reliability and pure signal integrity for demanding professional environments.
Technical Specifications
| Frequency Range | 7 GHz to 55 GHz |
| Antenna Gain | 10 to 22 dBi |
| -3dB Beamwidth | 10 to 70 deg |
| Max Power (CW) | 5 W |
| Peak Power | 20 W |
| Connector Style | 1.85mm * 2 |

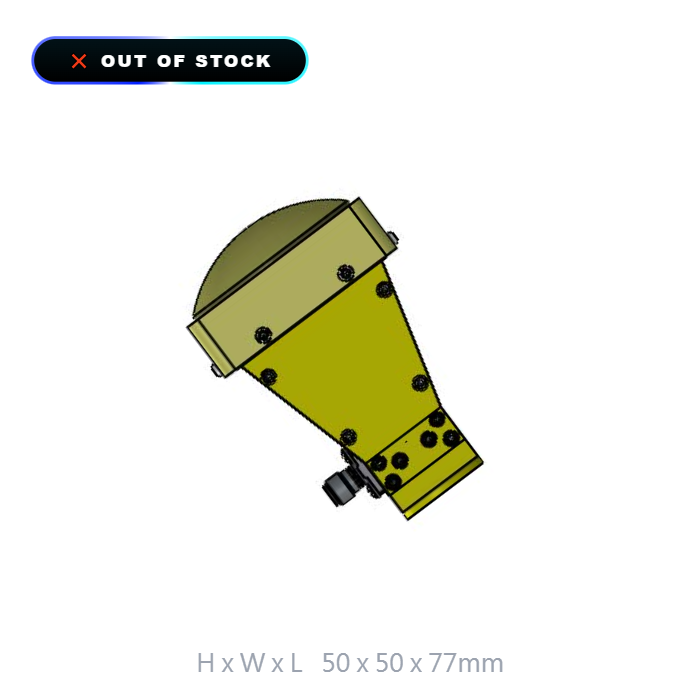

| Dimensions (H x W x L) | 50 x 50 x 77 mm |
| Weight | 400 g |
| Origin | Made in Taiwan |
Ultra-Wideband with LENS
Covers a continuous range from 7 GHz up to 55 GHz, using integrated lens technology to refine beam stability and gain.
Dual-Polarization Precision
Equipped with dual 1.85mm connectors to enable simultaneous testing of multiple signal polarizations with high isolation.
Laboratory Grade Design
Precision-manufactured in Taiwan to meet professional standards for EMI/EMC compliance and high-frequency calibration.
Optimized lens geometry ensures pattern accuracy and measurement stability in professional high-frequency environments.
