WR42 Standard Gain Horn Antenna (HS Series)
- Select
HS Series • K-Band (18.0 – 26.5 GHz)

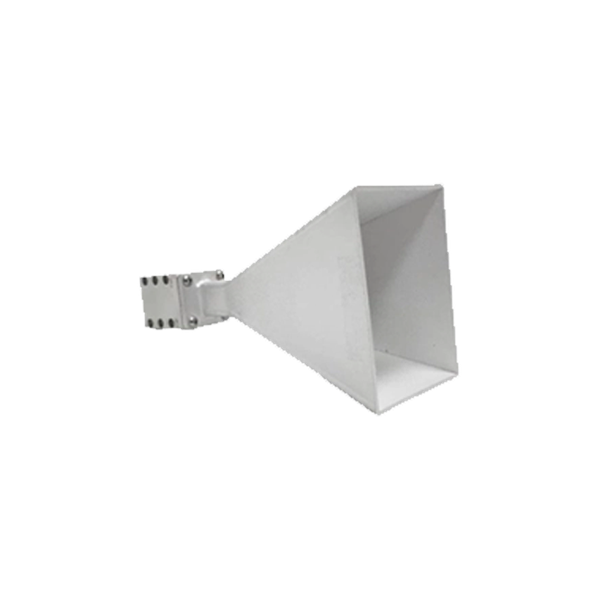

FT-RF WR42 Standard Gain Horn Antenna
FT-RF WR42 Standard Gain Horn Antenna is a linearly polarized pyramidal horn antenna integrated with a precision coaxial adapter interface (SMA / 2.92mm K-Type), designed for high-accuracy antenna gain calibrations, EMC emissions testing, and microwave field probing across 18.0 to 26.5 GHz.
Fabricated with high-grade gold-chem-film coated aluminum, it delivers consistent half-power beamwidths, low side lobes, and exceptional polarization purity. Fully compliant with standard IEEE antenna calibration procedures.
🛠️ Engineering & Customization Options
Tailored structural designs and custom bracket fabrication for your setup:
- Calibrated Gain Options: 10 dBi, 15 dBi, 20 dBi, and 25 dBi.
- Mounting Hardware: Precision tripod brackets & swivel mounts.
- Coaxial Interface: SMA-Female or 2.92mm Precision K-Connector.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 18.0 GHz to 26.5 GHz (K-Band) |
| Waveguide Size | WR42 (WG20 / R220) |
| Connector Interface | SMA / 2.92mm (K) Coaxial Female |
| Nominal Gain | 10 dBi / 15 dBi / 20 dBi / 25 dBi |
| VSWR / Polarization | < 1.25:1 (Typ.) / Linear |
NEW
HS-042-UBR-15E-KF
WR42 18 GHz to 26.5 GHz 15dbi Standard Gain Waveguide Horn Antenna, E-plane sectoral Horn Antenna, UBR Flange, K-Female Connector
View Details
FT-RF
| Frequency Range: | 18 - 26.5 GHz |
| Standard Gain: | 15 dBi |
| Connector Type: | K-Female (2.92mm) |
| Waveguide Size / Flange: | WR-42 / UBR Style |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock Status: | Contact us |
| 2026/08/21 | |
NEW
HS-042-UBR-10H-KF
WR42 18 GHz to 26.5 GHz 10 dbi Standard Gain Waveguide Horn Antenna, H-plane sectoral Horn Antenna, UBR Flange, K-Female Connector
View Details
FT-RF
| Frequency Range: | 18.0 - 26.5 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-42 (UBR / 2.92mm K-F) |
| Stock: | 0 |
| 2026/08/21 | |
HS-042-UBR-10A-KF
WR42 18GHz to 26.5GHz 10dbi Standard Gain Waveguide Horn Antenna, UBR Flange, K-Female Connector
View Details
Made in Taiwan
| Frequency | 18 - 26.5 GHz |
| Type | WR-42 Horn |
| Gain | 10 dBi |
| Stock: | 0 |
2026/06/24
HS-042-UBR-15A-KF
WR42 18GHz to 26.5GHz 15dbi Standard Gain Horn Flange UBR Flange, K-Female Connector
View Details
FT-RF
| Frequency Range: | 18 - 26.5 GHz |
| Waveguide Type: | WR-42 / UBR |
| Nominal Gain: | 15 dBi |
| Connector Port: | 2.92mm-F (K) |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/22 | |
HS-042-UBR-20A-KF
WR42 18 GHz to 26.5 GHz 20 dbi Standard Gain Waveguide Horn Antenna, UBR Flange, K-Female Connector
View Details
Made in Taiwan
| Frequency | 18 - 26.5 GHz |
| Type | WR-42 Horn |
| Gain | 20 dBi |
| Stock: | 0 |
2026/06/24
HS-042-UBR-25-KF
WR42 18 GHz to 26.5 GHz 25 dbi Standard Gain Waveguide Horn Antenna, UBR Flange, K-Female Connector
View Details
Made in Taiwan
| Frequency | 18 - 26.5 GHz |
| Type | WR-42 Horn |
| Gain | 25 dBi |
| Stock: | 0 |
2026/06/24
