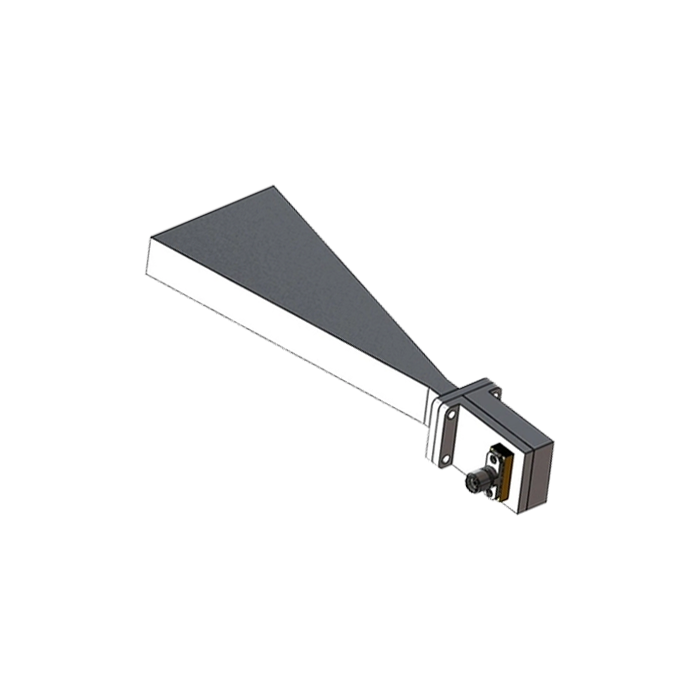

| Frequency Range Class | 18 - 26.5 GHz (Continuous K-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-42 / WG20 / R220 Geometry Layout |
| Nominal Gain Baseline | 15 dBi |
| V.S.W.R Profile (Max) | 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 200 Watts (CW Continuous Wave Limit) |
| -3dB Beamwidth (H-Plane / E-Plane) | 78° / 16° (Asymmetrical Sectoral Envelope) |
| Nominal System Impedance | 50 Ohm |

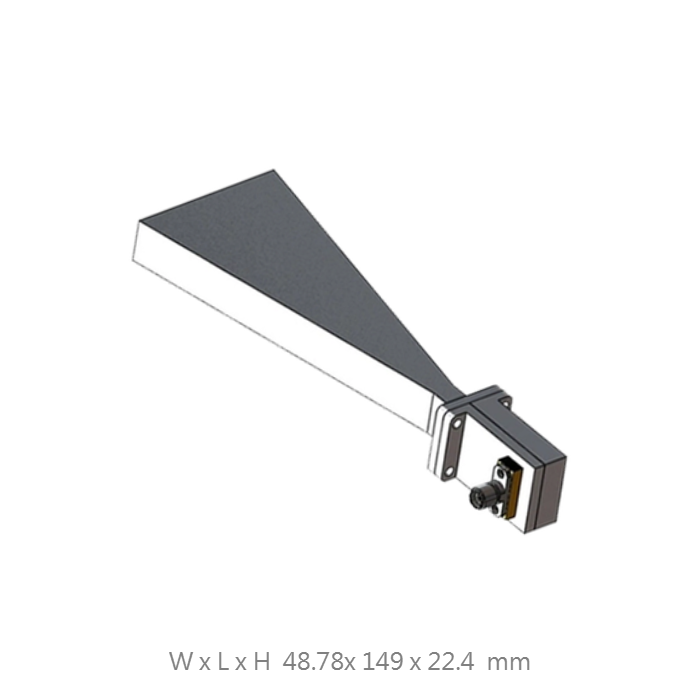

| Physical Dimensions (W x H x L) | 48.78 x 22.4 x 149 mm |
| Antenna Net Weight Profile | 70 g (Precision Lightweight Design Form Factor) |
| Waveguide Mating Flange | Standardized UBR Style Flange configuration Face |
| Coaxial Connector Port | Precision K-Female Interface Port (2.92mm) |
| Structural Body Material | High-Grade Aluminum Alloy Architecture |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Advanced E-plane flare design provides a narrow 16° horizontal focus while maintaining a broad 78° H-plane width, essential for localized Signal Security and chamber range calibration.
Precision optimized WR-42 internal geometry ensures minimal return loss, flat gain response, and predictable radiation patterns for mission-critical millimeter-wave evaluation measurements.
Manufactured from premium aerospace-grade aluminum to ensure long-term structural integrity and stability in field-deployed Signal Defense active configurations.
Fully supported by a comprehensive traceable performance database to ensure accurate automated system calibration and highly predictable, repeatable measurement results.
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized mechanical drawings, or custom K-Band sectoral flare configurations.
