Description & Specification

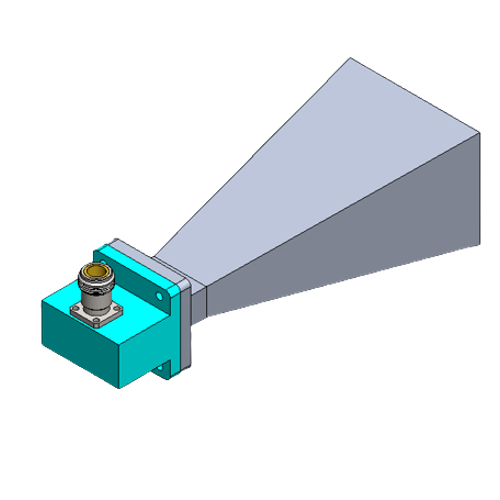

C/X-Band High Precision Standard Horn
WR-112 Waveguide | 7.05 GHz – 10 GHz | 15 dBi Gain
The HS-112-UBR-15A-NF is a laboratory-grade standard gain horn antenna professionally engineered for high-precision microwave measurements and antenna calibration within the C and X-band spectrum. Operating from 7.05 GHz to 10 GHz, it features a standardized WR-112 waveguide interface and high-durability Stainless Steel N-Female connector. Delivering a stable 15 dBi gain with optimized beam symmetry, this lightweight antenna is an essential component for Signal Integrity verification, antenna gain calibration, and professional EMI/EMC testing where traceable accuracy and mechanical reliability are paramount.
Technical Specifications
Electrical RF Performance
| Frequency Range | 7.05 GHz - 10 GHz |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 15 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | Horizontal: 32° | Vertical: 31° |
| Maximum Power Handling | 320 Watts |
Mechanical & Interface Data
| Connector Type | N-Female (Stainless Steel / SUS) |
| Waveguide / Flange | WR-112 / UBR Architecture |
| Dimensions (WxHxL) | 64 x 80 x 207 mm |
| Net Weight | 320 g |
| Body Material | Aerospace-Grade Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
Broadband Precision Integrity
Designed specifically for the 7.05-10 GHz spectrum, providing highly stable electrical performance and low loss for critical Signal Integrity measurements.
Industrial SUS Interface
Equipped with a precision stainless steel (SUS) N-Female connector to ensure reliable mating cycles and standardized connectivity with professional RF test equipment.
Lightweight Structural Design
Compact aluminum alloy construction (320g) ensures exceptional mechanical rigidity and thermal stability during continuous laboratory duty cycles.
Advanced Custom Options
Available for specialized modifications including waterproof structures, PTZ control integration, tripod mounting, and custom color finishes.
