Description & Specification
X/Ku-Band High Gain Horn
WR-75 Waveguide | 10 GHz – 15 GHz | 15 dBi
The HS-075-UBR-15-SF is a high-precision standard gain horn antenna engineered for mission-critical microwave RF measurements. Operating across the 10 GHz to 15 GHz range, it utilizes a standardized WR-75 waveguide interface with a UBR flange. Providing a stable 15 dBi gain with specialized beam focusing, this antenna is a critical instrument for Signal Integrity verification, antenna gain calibration, and professional EMI/EMC testing where laboratory-grade accuracy and industrial structural reliability are paramount.
Technical Specifications
Electrical RF Performance
| Frequency Range | 10 GHz - 15 GHz |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 15 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | H-Plane: 32° | E-Plane: 31° |
| Maximum Power Handling | 250 Watts |
Mechanical & Interface Data
| Connector Type | SMA-Female (Stainless Steel / SUS) |
| Waveguide / Flange | WR-75 / UBR 120 (M3922/70-004/005) |

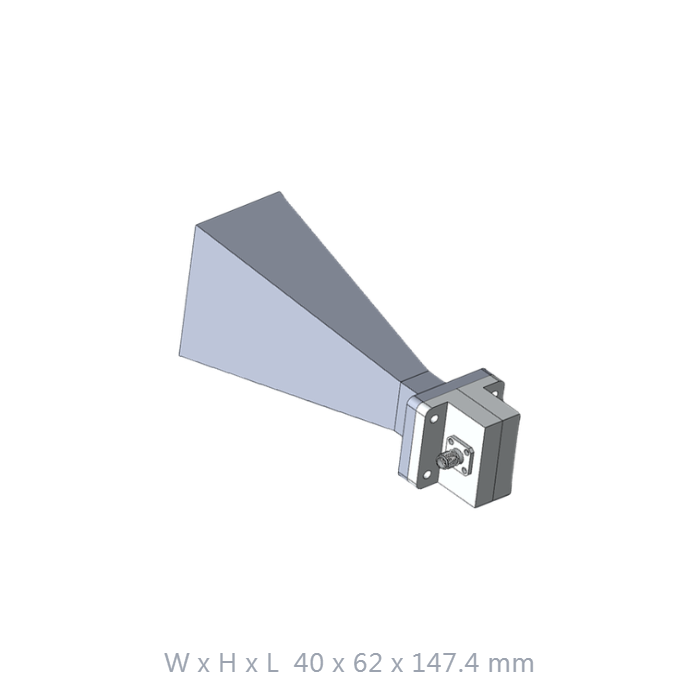

| Dimensions (W x H x L) | 40 x 62 x 147.4 mm |
| Net Weight | 100 g |
| Material Finish | Industrial Grade Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
X/Ku-Band Precision Beam
Designed specifically for the 10-15 GHz spectrum, providing highly stable electrical performance and low loss for critical Signal Integrity measurements.
Industrial SUS Interface
Equipped with a precision stainless steel (SUS) SMA-Female connector to ensure reliable mating cycles and standardized connectivity with professional RF test equipment.
Robust Structural Design
Compact aluminum alloy construction (40x62x147.4mm) ensures exceptional mechanical rigidity and thermal stability during continuous laboratory duty cycles.
Custom Engineering Flexibility
Available for advanced modifications including waterproof structures, PTZ control integration, tripod mounting, and specialized color finishes.
Inquire About Custom Solutions
Contact our engineering team for specialized gain data, waterproof mounting options, or technical support regarding high-precision measurement setups.
