Description & Specification

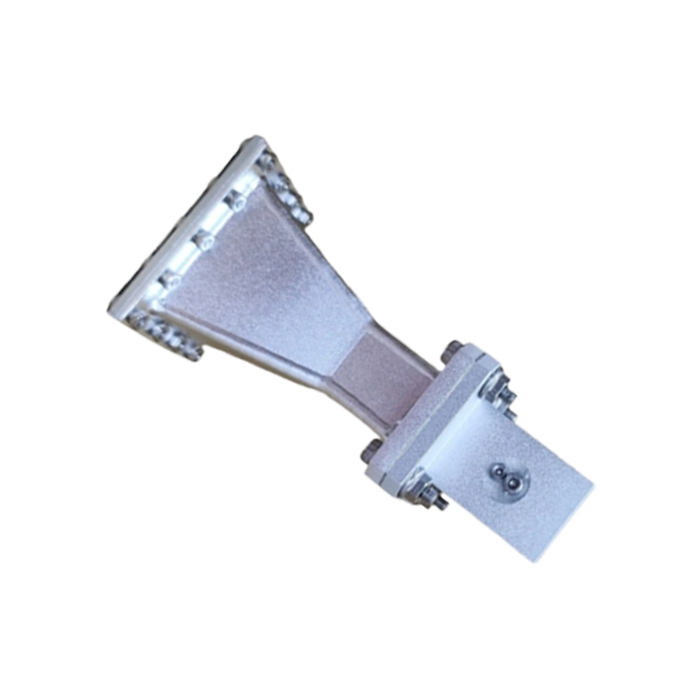

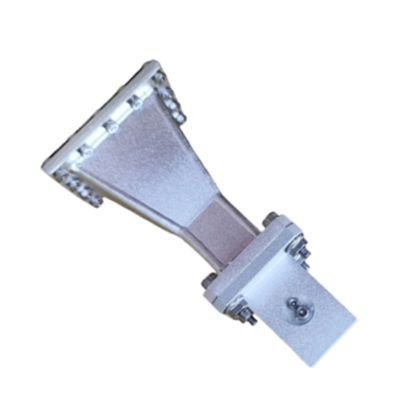

12.4 GHz to 18 GHz WR-62 Wide Beam Standard Gain Horn Antenna
Model: HS-062-10-R-SF | 10 dBi Gain | Wide 54° Beamwidth
The HS-062-10-R-SF is a precision-engineered WR-62 Waveguide Horn Antenna professionally designed for Ku-Band applications requiring broader area coverage. Operating between 12.4 GHz and 18 GHz, it delivers a consistent 10 dBi gain with an expansive 54° beamwidth, making it ideal for near-field testing and professional Signal Security operations. Featuring a compact aluminum body and a precision SMA-Female connector, this antenna ensures unwavering Signal Integrity and stability for tactical Signal Defense deployments and laboratory measurement ranges.
Technical Specifications
Electrical Performance
| Waveguide Standard | WR-62 (WG18 / R140) |
| Frequency Range | 12.4 - 18 GHz (Ku-Band) |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E Plane) | 54° / 54° (Wide Coverage) |
| Maximum Power Handling | 250 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

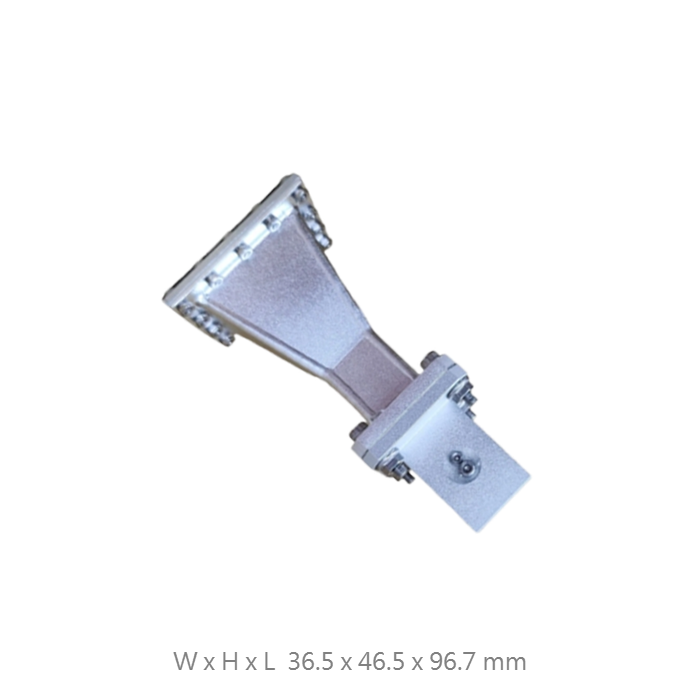

| Dimensions (W x H x L) | 36.5 x 46.5 x 96.7 mm |
| Net Weight | 70 g (Ultra-Compact) |
| Flange Compatibility | UG-419/U or UG-541A/U |
| Body Material | Premium Grade Aluminum |
| Connector Type | SMA-Female |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
Wide Area Beam Domination
The specialized 54-degree beamwidth provides expansive vertical and horizontal coverage, essential for near-field monitoring and broad-sector signal management.
Precision Signal Integrity
Optimized internal waveguide transition ensures minimal signal reflection and stable radiation patterns across the entire Ku-Band operating spectrum.
Tactical Signal Security
Engineered to support Signal Defense infrastructure, providing a reliable reference radiator for interference mitigation and professional surveillance.
Ultra-Compact Aluminum Build
At only 70g, this compact antenna ensures maximum structural rigidity while minimizing the load on laboratory positioners or portable tactical masts.
Request a Professional Quote
Contact our engineering team to obtain individual calibration data, VSWR plots, or customized waveguide flange requirements.
