WR-650 Standard Gain Horn Antenna 1.14 GHz to 1.73 GHz, 20dbi Gain, N-Female Connector

Model No: HS-650-UDR-20-NF

Made in Taiwan
Frequency Range: 1.14 to 1.73 GHz
Standard Gain: 20 dBi
Connector Type: N-Female (SUS)
Waveguide Size / Flange: WR-650 / UG-417A/U Style
Lead Time: 📩 info-tw@ft168.com.tw
Stock: 0
2026/06/24
Quantity:
INQUIRY

1.14 GHz to 1.73 GHz WR-650 L-Band Standard Gain Horn Antenna

Model: HS-650-UDR-20-NF | 20 dBi Gain | 1000W High Power handling
The HS-650-UDR-20-NF is a high-power WR-650 L-Band Standard Gain Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for heavy-duty transmission and precision microwave validation setups. Operating within the low-frequency L-Band spectrum across the continuous 1.14 GHz to 1.73 GHz band, this premium radiator provides a highly stable directional nominal gain of 20 dBi. Featuring a precise inline transition geometry mated with a standardized UG-417A/U Style flange face and a heavy-duty stainless steel (SUS) N-Female connector interface, it ensures flawless structural impedance integration and ultra-low-loss power transfer. Robustly built to handle massive 1000 Watts continuous wave (CW) power loads, this heavy-duty system is precision structured from high-grade machined aluminum alloy in Taiwan, yielding a robust 11.8 kg physical footprint paired with a maximum V.S.W.R threshold of 1.25 : 1. It stands as the premier choice for large-scale EMI/EMC testing, automated antenna gain calibration ranges, advanced industrial radiation networks, and mission-critical Signal Defense field deployment sub-systems.



Electrical & RF Performance
Frequency Range Class 1.14 GHz to 1.73 GHz (Continuous L-Band Spectrum Optimization)
Waveguide Standard Size EIA WR-650 / R14 / WG6 Layout Geometry
Nominal Gain Baseline 20 dBi
V.S.W.R Profile (Max) 1.25 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 1000 Watts (CW Continuous Wave Thermal Capacity)
-3dB Beamwidth (H-Plane / E-Plane) 11° / 10° (High Directivity Boresight Alignment)
Nominal System Impedance 50 Ohm
Mechanical & Construction Specs

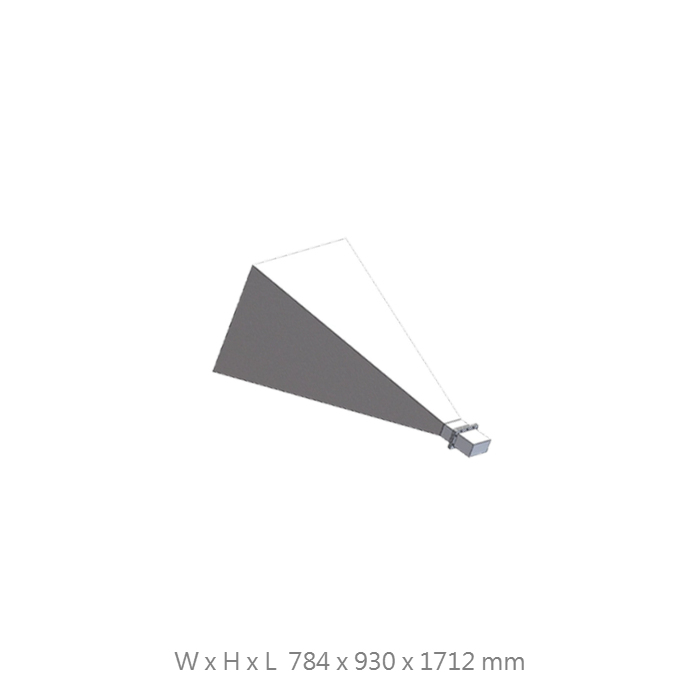

Physical Dimensions (W x H x L) 784 x 930 x 1712 mm
Antenna Net Weight Profile 11.8 kg (Heavy-Duty Robust Architecture)
Waveguide Flange Interface Standardized UG-417A/U Style Flange Configuration
Coaxial Connector Type Precision Stainless Steel N-Female Interface Port (SUS Architecture)
Structural Body Material High-Grade Precision Machined Aluminum Alloy
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Grade)



L-Band Signal Defense

Optimized for the 1.14-1.73 GHz spectrum, providing the strict boresight accuracy and high-gain directivity required for professional signal security and tactical validation deployments.

1000W Continuous Stability

Robustly engineered to handle massive 1kW CW power loads while maintaining flawless electrical consistency, suitable for high-intensity lab testing and industrial radar benches.

Heavy-Duty SUS Interface

Equipped with a high-durability stainless steel N-Type connector to ensure reliable electrical contact and structural wear resistance during repetitive field setups.

Tactical Infrastructure Ready

Designed to support advanced Signal Defense sub-systems, with available options for specialized waterproof builds, automated PTZ control integration, and custom non-reflective tripod mounting configurations.

Contact FT-RF Engineering Team

Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, customized outdoor mounting layouts, or specialized PTZ control options.
