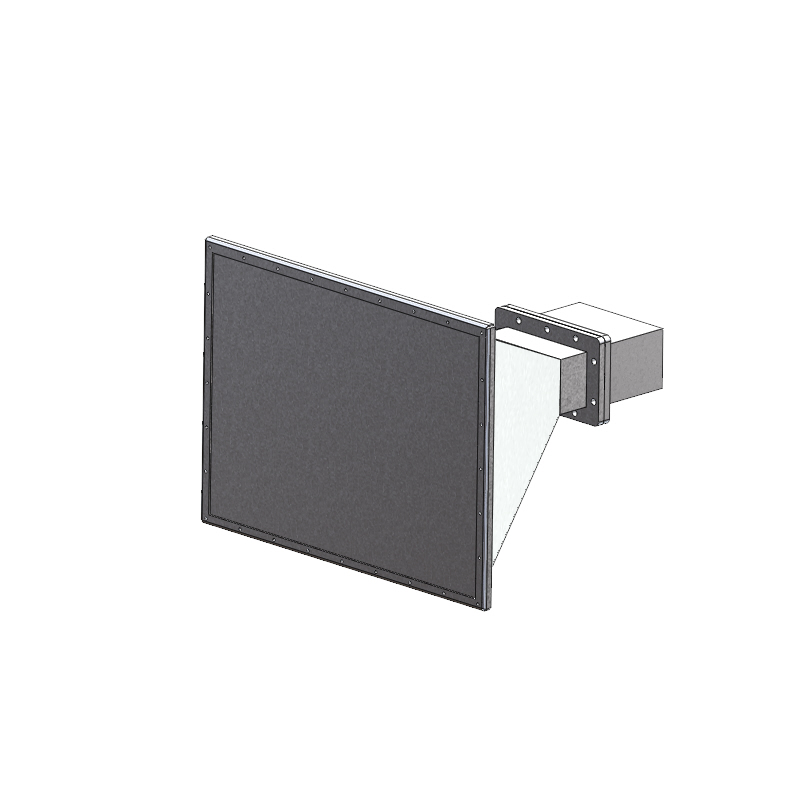

WR-650 High Power Horn Antenna (Model: HS-650-15-R-NF)
1.14 - 1.73 GHz (L-Band) | 1000W Power | 15 dBi Gain | Outdoor Waterproof
[Image of Standard Gain Horn Antenna]
The HS-650-15-R-NF is a high-performance WR-650 Waveguide Horn Antenna designed for mission-critical L-Band applications, including GPS jamming simulation, EMI/EMC testing, and long-range surveillance. Operating from 1.14 GHz to 1.73 GHz, it delivers a robust 15 dBi gain and is engineered to handle extreme power levels up to 1000 Watts (CW). Enclosed in a durable, waterproof PVC radome with an aluminum body, this antenna is built for both indoor laboratory testing and permanent outdoor deployment.
Technical Specifications
Electrical Specifications
| Frequency Range | 1.14 GHz to 1.73 GHz (L-Band) |
| Gain | 15 dBi |
| Maximum Power | 1000 Watts (CW) |
| V.S.W.R | 1.25 : 1 |
| Beamwidth (-3dB) | H-Plane: 30° / E-Plane: 31° |
| Waveguide Size | WR-650 |
| Connector | N-Female (Stainless Steel SUS303) |
Mechanical & Environmental Specifications

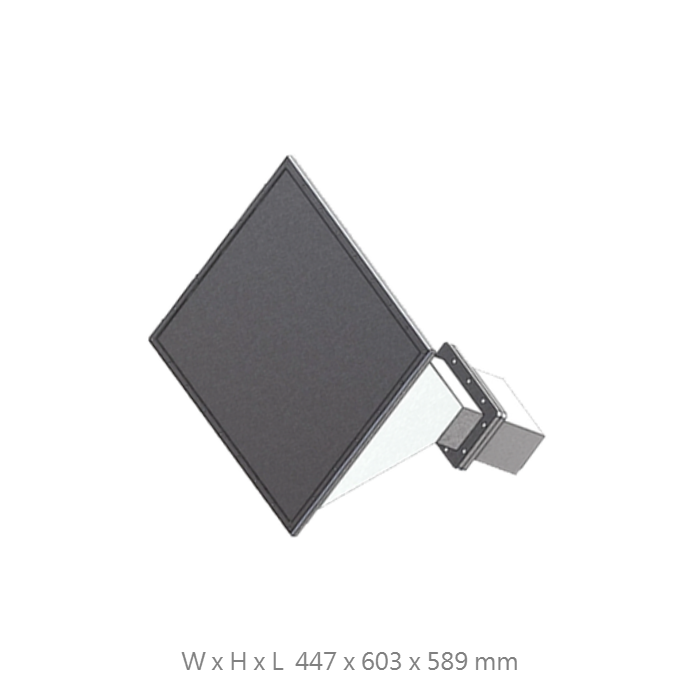

| Dimensions (W x H x L) | 447 x 603 x 589 mm |
| Net Weight | 7100 g (7.1 kg) |
| Body Material | Aluminum |
| Radome Material | PVC (Gray) - Waterproof |
| Waveguide Flange | UDR / PDR Compatible |
| Application | Outdoor / Indoor |
Key Features (Model Specific)
L-Band & GPS Testing
Optimized for 1.14-1.73 GHz, covering critical GPS/GNSS bands (L1/L2/L5), making it ideal for signal jamming or resilience testing.
1000W High Power
Heavy-duty construction allows for 1kW continuous power handling, suitable for high-intensity EMC/EMI and jamming operations.
Outdoor Waterproof
Equipped with a sealed PVC radome and corrosion-resistant aluminum body, ensuring reliable performance in outdoor environments.
WR-650 Standard
Based on the WR-650 waveguide standard with UDR/PDR flange compatibility, ensuring seamless integration with L-Band systems.
Customization Ready
Available with custom mounting options including Tripod interface, PTZ controlling integration, and custom colors (Military Green, Blue, Black).
Get a Quote / Customization
Contact us for PTZ integration, custom colors, or mounting brackets.
